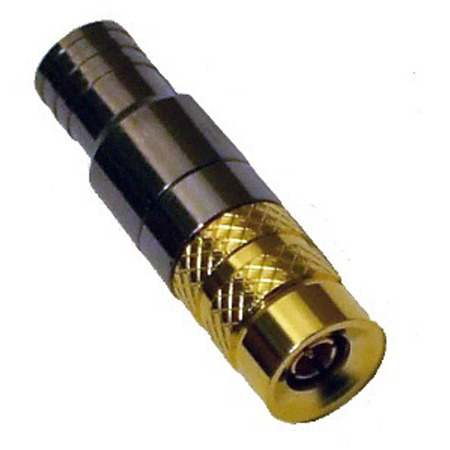

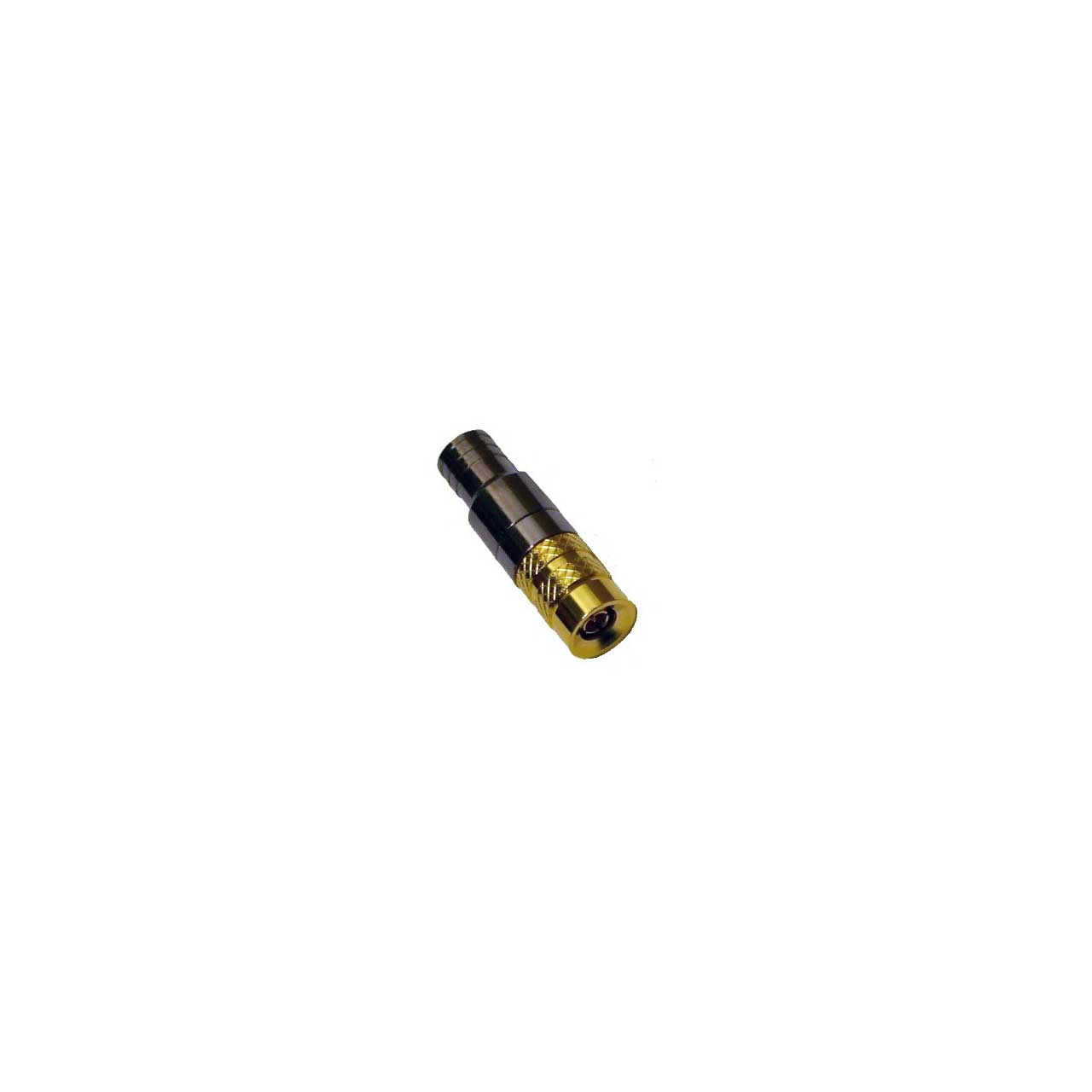

White Sands 1.0/2.3 FPB 1-Piece DIN Connector for Belden 1855A / Mini RG59

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    White Sands 1.0/2.3 FPB 1-Piece DIN Connector for Belden 1855A / Mini RG59

    Item #: 1023FPB   •   MFG #: 1.0/2.3FPB



    List Price:$7.99
    Our Price:$6.79
    Quantity Pricing

    free ship


    Availability: In Stock
    i
    Item is Available for immediate shipping from our warehouse.


    • Shipped to USA (50 states) only.


    Share!





    Connector - 1.0/2.3 Fixed Center Pin for Belden 1855A and Gepco VDM230 and similar Mini RG-59

    Our newest connector has upgraded performance to meet future needs with a return loss of >10dB out to 4.5 GHz. It is designed to mate securely with a broad range of jacks used on router panels. The small profile of this connector supports high density broadcast applications such as Miranda and Evertz routers.


    • Specifications

      • Impedance - 75 Ohm
      • Frequency Range - DC - 4.5 GHz
      • Insertion Loss - < 0.5dB @ 3 GHz
      • Cable Retention Force - > 40 lbs
      • Center Pin Retention - > 150 grams
      • Mating Style - Positive locking
      • Current Rating - 2 Amps
      • Working Voltage - < 300 vrms
      • Center Conductor Contact/Plating - Phosphor Bronze/Gold
      • Body Material/Plating - Brass/Gold and Nickel
