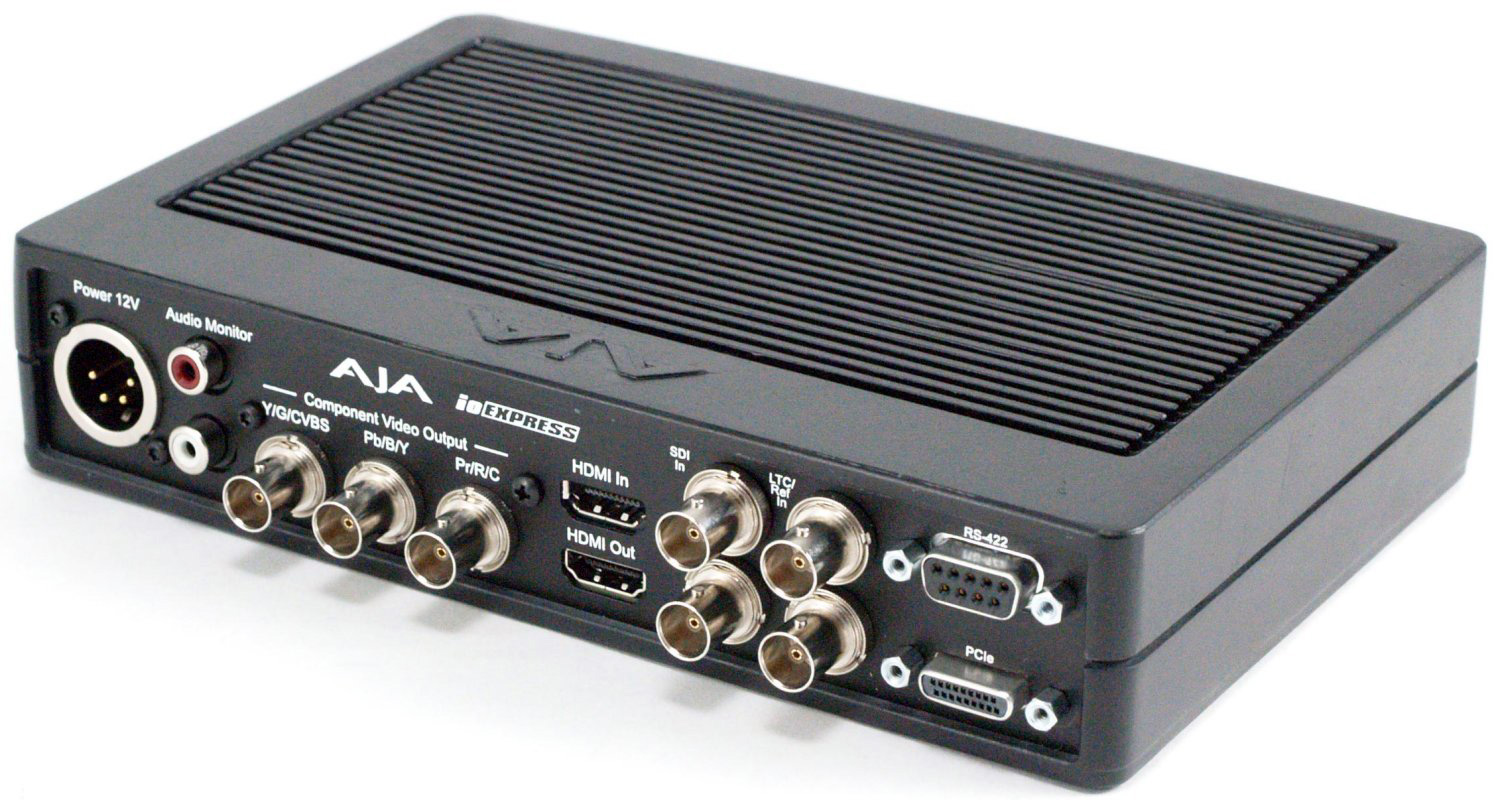

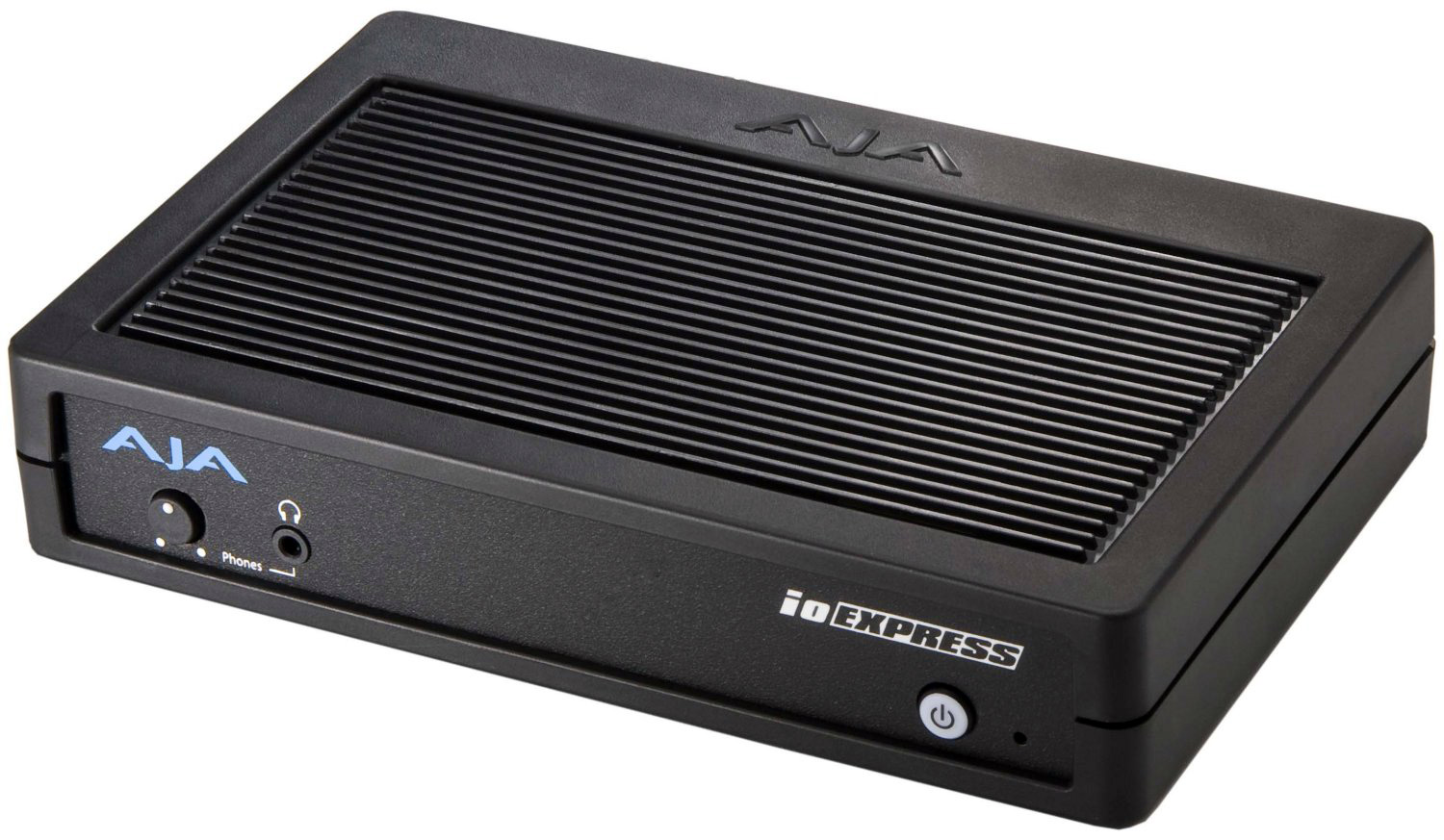

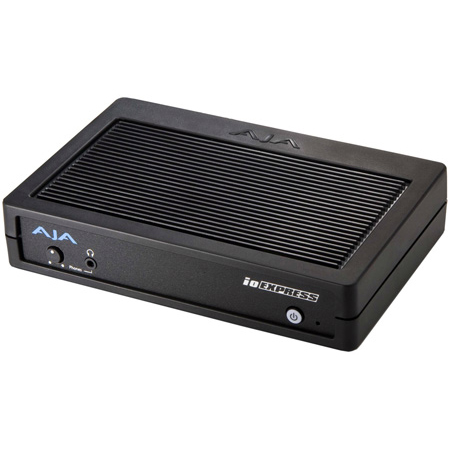

AJA Io Express Portable Video Audio I/O Desktop Interface for PCIe
  • AJA Io Express Portable Video Audio I/O Desktop Interface for PCIe
  • AJA Io Express Portable Video Audio I/O Desktop Interface for PCIe
  • AJA Io Express Portable Video Audio I/O Desktop Interface for PCIe
  • AJA Io Express Portable Video Audio I/O Desktop Interface for PCIe

Questions? Ask a Markertek Expert:
800-522-2025 Email

AJA Io Express Portable Video Audio I/O Desktop Interface for PCIe

Manufacturer: AJA Video

Item #: AJA-IOEXPRESSPCI   •   MFG #: AJA-IOEXPRESSPCI





Versions:





Share!





The AJA IO Express Portable Video Audio I/O Interface delivers power to go for cross platform file-based workflows. Io Express is the perfect Mac or PC interface for anyone who needs an inexpensive monitoring and mastering solution when working with Apple ProRes 422 and Apple ProRes 422 (HQ), XDCAM HD, DVCPRO HD, and more. Portable and simple to use, Io Express is ideal for filebased workflows.

If you work with a wide variety of formats, frame rates and audio/video sources, Io Express provides the connectivity you need. With its small footprint it offers big features, like 10 or 8-bit uncompressed video, HDMI I/O, HD/SD-SDI I/O with 8 channels of embedded audio, analog component video (SD/HD) or composite output, 2-channel unbalanced audio output, and broadcast quality hardware-based down-conversion for flexible post production. The HDMI I/O is v1.3a at 30 bits per pixel, providing ideal support for the very latest 10-bit monitors.


  • Features

    • HD/SD-SDI input/output
    • HDMI v1.3a input/output with Deep Color support at 30 bits per pixel
    • HD/SD Component Video output
    • 10-bit HD to SD Hardware Downconvert
    • 2-Channel RCA audio output
    • LTC input/ouput (selectable LTC Input/Reference Video Input)
    • RS422

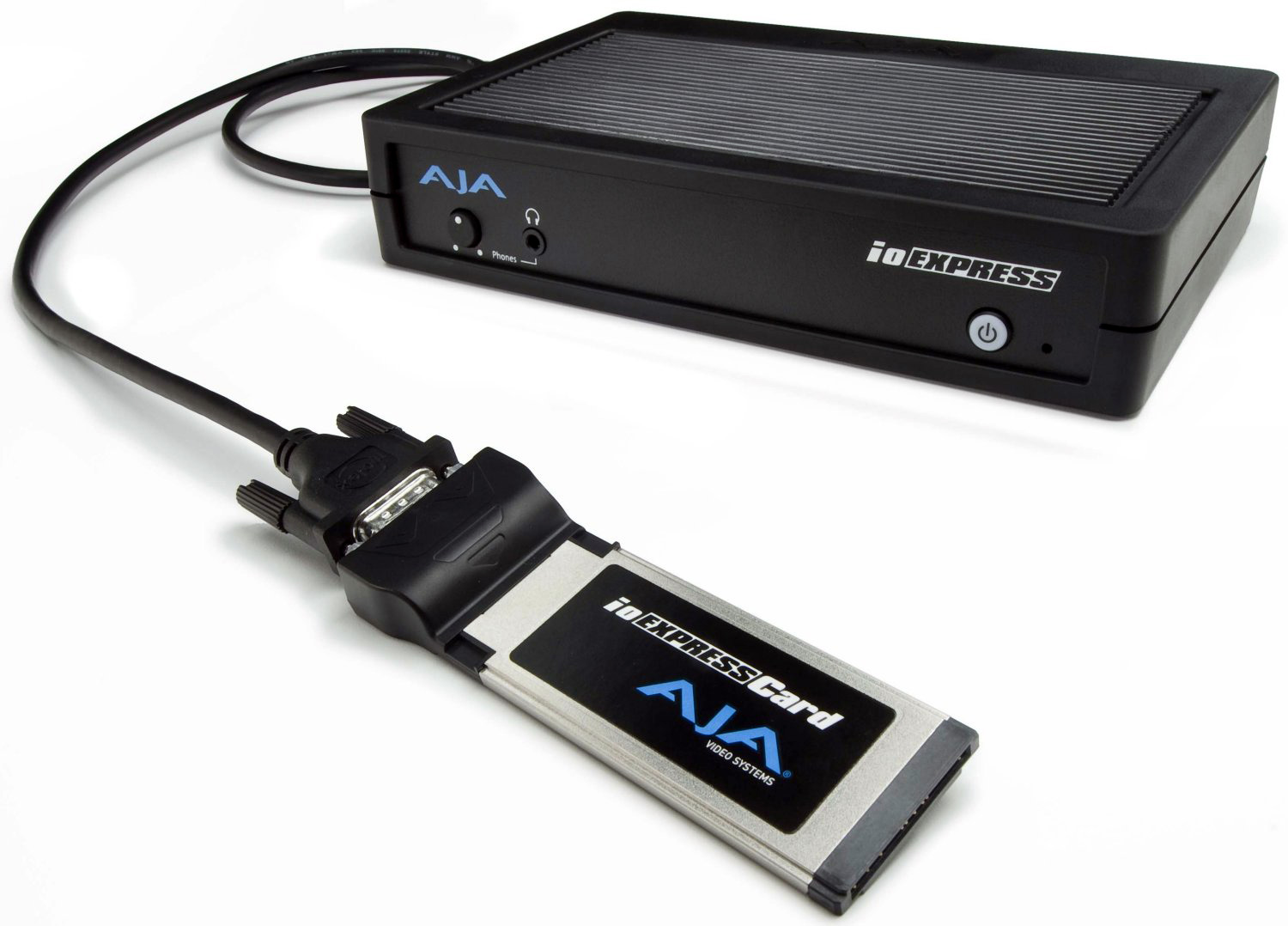

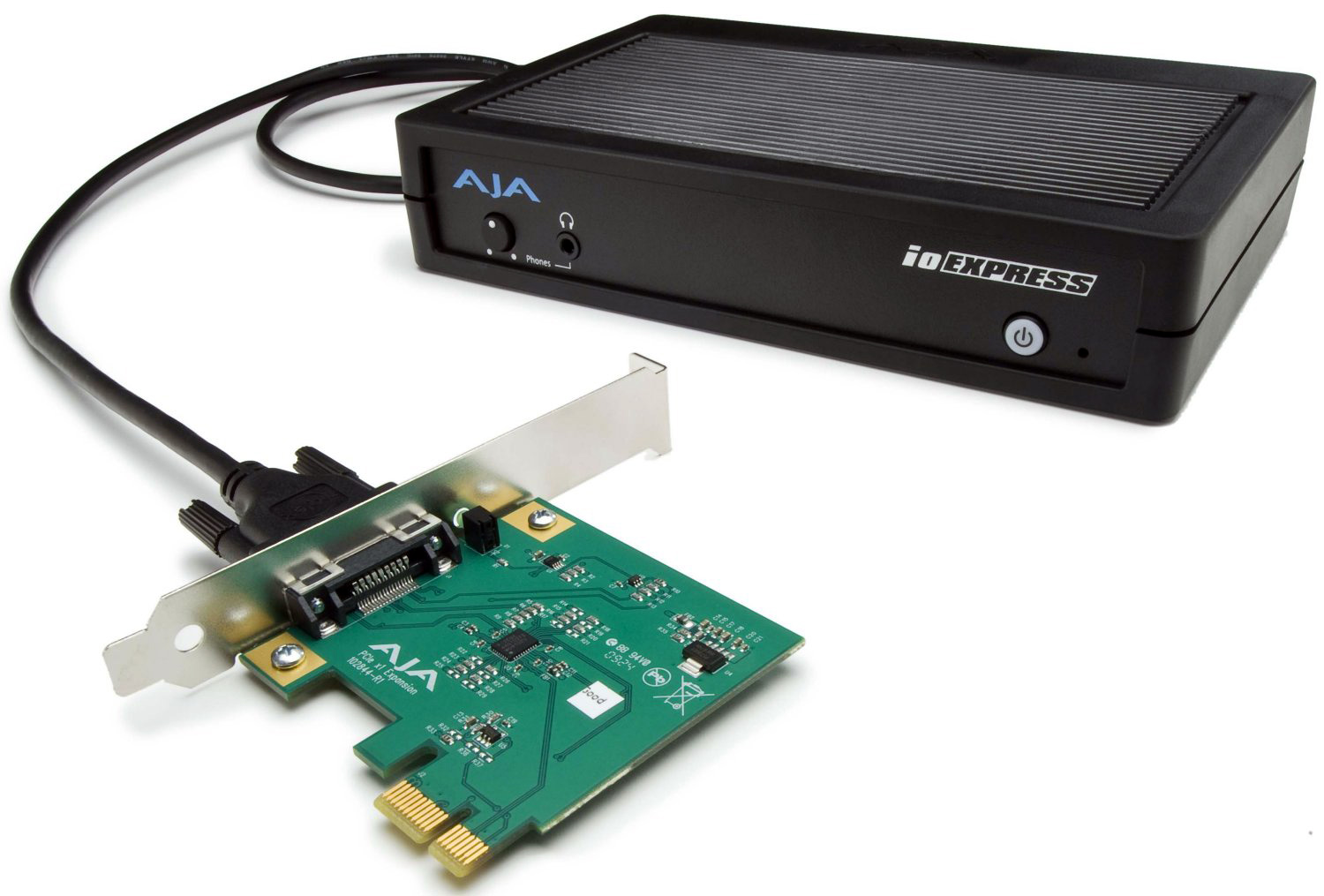

    • Expresscard/PCIe interfaces, over 1-lane PCIe cable (two Io Express configurations can be ordered: with Expresscard for laptops, or with PCIe card for Mac Pro or Windows workstation)
    • For Mac OSX and Windows 7/Vista/XP
    • Support for Final Cut Studio, Adobe CS5, and Avid Media Composer 5.5
    • Small, portable case design
    • 1-meter PCIe tether cable
    • 12v DC power supply
    • Rackmount kit optional
    • AJA 3-year warranty
