AJA KL-BOX-LH 1 RU External Breakout Box for KONA LH / LHe / LSE

Manufacturer: AJA Video

Item #: AJA-KLBOX-LH   •   MFG #: KL-BOX-LH



Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





AJA's KL Box Breakout Box for Kona-LH, Kona-LHe and Kona-LSe offers functionality and versatility you will find in a breakout box such as this. This box can be easily rack-mounted or placed on top of a broadcast monitor or editing desk for versatility.

The KL Box Breakout Box for Kona-LH, Kona-LHe and Kona-LSe connects the analog and digital worlds by offering I/O for both up conversion and Dual Link. This box provides optimum quality for SD and HD, which is the maximum allowed in SMPTE SDI standards.

The KL Box Breakout Box for Kona-LH, Kona-LHe and Kona-LSe also includes hardware sample-rate conversion on AES inputs eliminating source-synchronizing requirements. As the only card available supporting HD/SD analog I/O, KL Box Breakout Box for Kona-LH, Kona-LHe and Kona-LSe is perfect for not only uncompressed, but also HDV and other diverse workflows.

Rack-mountable
This box can be easily rack-mounted or placed on top of a broadcast monitor or editing desk for versatility.

Optimum Quality
This box provides optimum quality for SD and HD which is the maximum allowed in SMPTE SDI standards.

Capturing
Using the QuickTime format, this box helps when capturing directly to 10-bit files on disk, and also supports many legacy 8-bit formats for backward compatibility. This box also supports DVCPROHD and HDV, DV25, DV50, JPEG, and much more.

Audio Support
This unit offers all the audio support you would ever want including native OSX multi-channel audio and 24-bit AES/EBU digital audio at 48 kHz for digital production.

Hardware Sample Rate
This Breakout Box for Kona-LH, Kona-LHe and Kona-LSe also includes hardware sample-rate conversion on AES inputs eliminating source-synchronizing requirements.

Diverse Workflow
As the only card available supporting HD/SD analog I/O, this Breakout Box for Kona-LH, Kona-LHe and Kona-LSe is perfect for not only uncompressed, but also HDV and other diverse workflows.

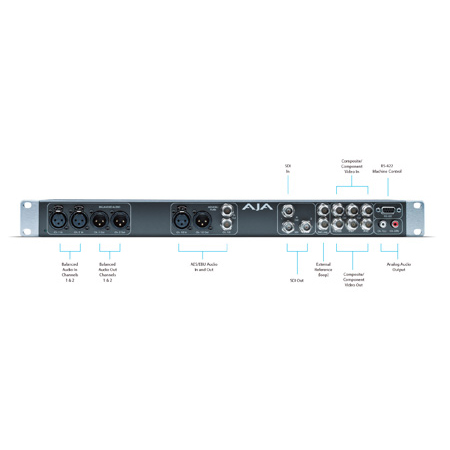

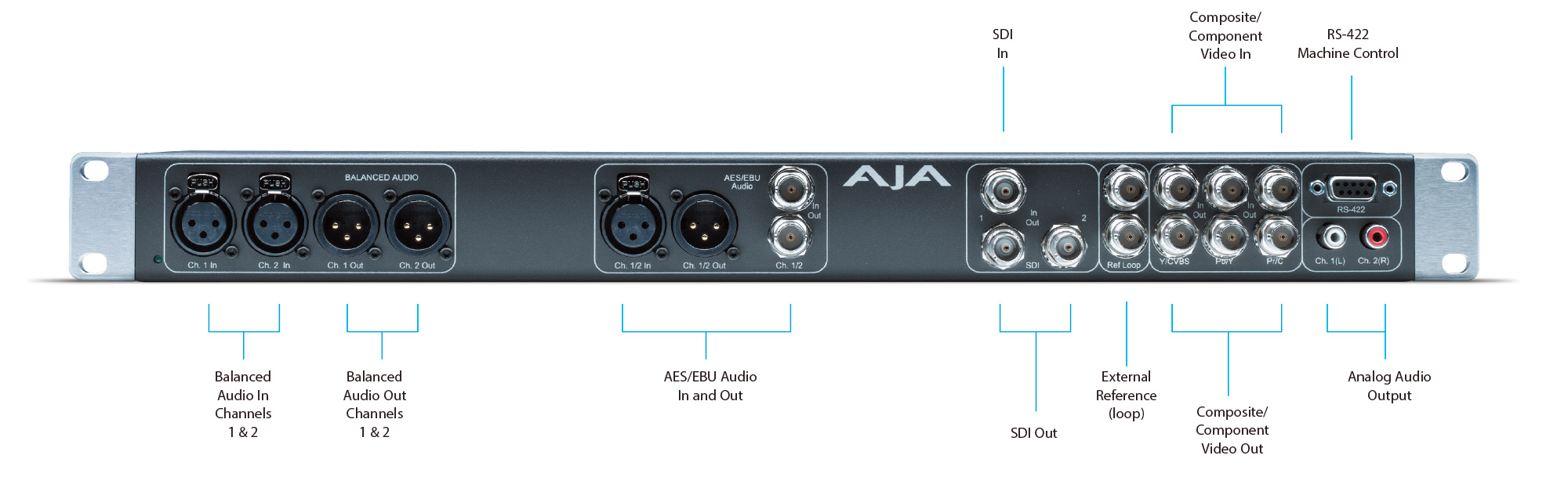

  • Specifications

    • Compatible with; for Kona-LH, Kona-LHe and Kona-LSe.
    • Host Connection; 2 Cables (60-pin connector & RS422)
    • Input and Output Connectors;
    • SD-SDI/HD-SDI Video/Audio
    • SDI Output 2 BNC
    • SDI Output 1 BNC
    • SDI Input BNC
      Analog Video
    • Y/CVBS In BNC
    • Pb/Y In BNC
    • Pr/C In BNC
    • Y/G/CVBS Out BNC
    • Pb/B/Y Out BNC
    • Pr/R/C Out BNC
    • Reference Input BNC
      Balanced Audio
    • Analog Audio Channel (1 Input)
    • Analog Audio Channel (2 Input)
    • Analog Audio Channel (1 Output)
    • Analog Audio Channel (2 Output)
    • AES Input Channels 1 & 2
    • AES Output Channels 1 & 2
      Agency Certifications:
    • Hardware:: KONA-2
    • Software: Apple Final Cut Pro 5, Adobe AfterEffects, PhotoShop, Quicktime.
    • System Requirements: Kona-LH, Kona-LHe or Kona-LSe
    • Mac OS X.
      Dimensions: (WxHxD) 19 x 3 (W x H)(48.26 x 7.62cm)
      Weight: 7 lbs (3.175 kg)
