AJA KUMO CP Optional KUMO Remote Control Panel
  • AJA KUMO CP Optional KUMO Remote Control Panel
Questions? Ask a Markertek Expert:
800-522-2025 Email

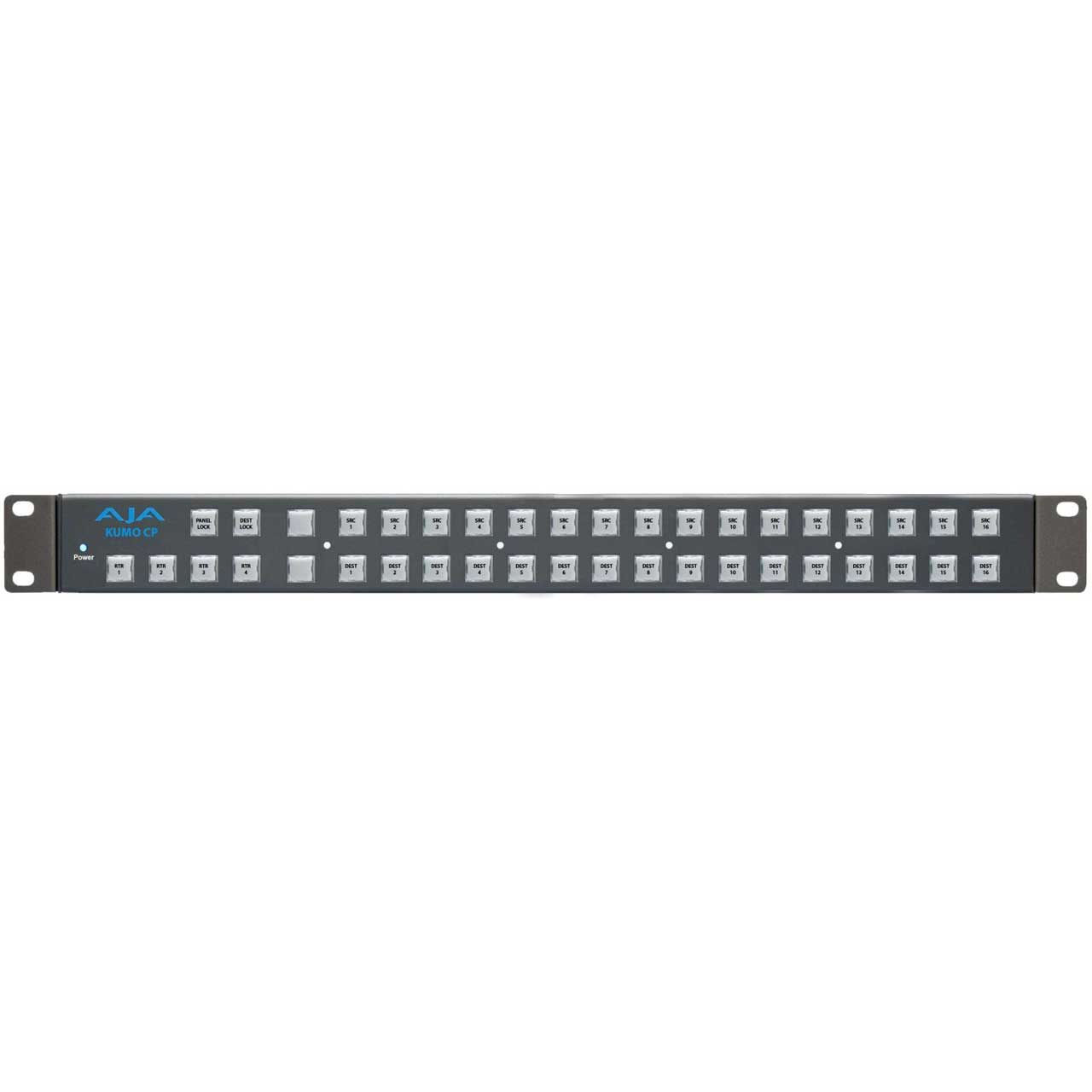

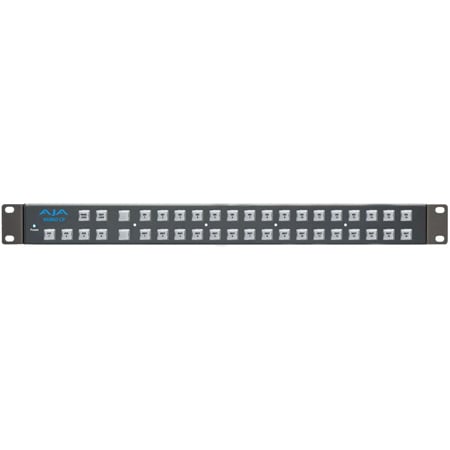

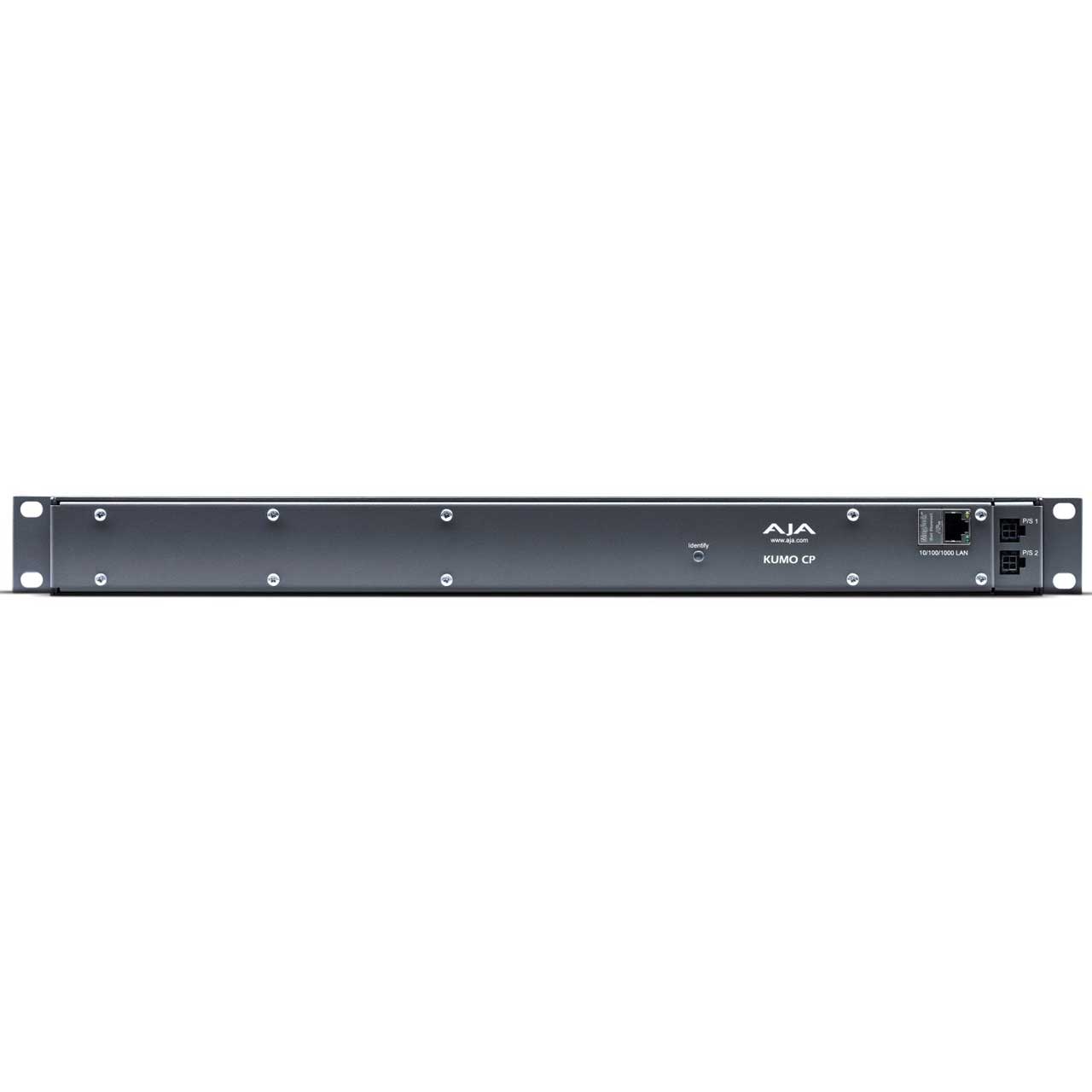

AJA KUMO CP Optional KUMO Remote Control Panel

Manufacturer: AJA Video

Item #: AJA-KUMOCP   •   MFG #: KUMO CP

Availability: Direct Ship From Manufacturer
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



The AJA KUMO compact SDI routers are small and cost-effective, yet robust and reliable. KUMO supports full broadcast specifications over SDI, HD-SDI, and 3G SDI. KUMO routers are a perfect fit for any broadcast, production, or post production environment. Running Embedded Linux, KUMO routers are network ready and support powerful HTTP control and monitoring. KUMO's internal webserver allows immediate installation, configuration, and operation with standard web browsers - without any additional software to buy or install. An optional 1RU networkable control panel (KUMO CP) can be used in stand-alone or networked configurations.

Once connected to KUMO using a web browser, you can configure the full TCP/IP settings, select and name KUMO routers, name sources and destinations, and perform all operational functions.

For stand-alone configurations of KUMO routers with KUMO CP control panels only, just connect the KUMO components together with standard RJ45 cables and an Ethernet switch (if needed).

  • Features

    • SD, HD, 3G SDI inputs and outputs via BNC, SMPTE 259M/292M/424M
    • Automatic EQ and re-clocking
    • Supports all ancillary data, including embedded audio
    • Reference via BNC, passive loop, PAL/NTSC color black or HD tri-sync
    • 10/100/1000 Ethernet LAN
    • Auto-detect Bonjour/Zeroconf protocol provides ease of installation
    • Embedded Linux OS with internal webserver for web browser control
    • Control from HTTP or Remote Control Panel (KUMO CP is optional)
    • 1RU form factor
    • Redundant power inputs (isolated)
    • 1 power supply and line cord supplied
    • Optional power supply available
    • AJA 5-year international warranty
  • Specifications

    • Formats
    • 3Gb, 1.5Gb, 270Mb, ASI, Auto Select
      Video Inputs and Outputs
    • SDI (SMPTE 259/292/296/424), BNC
      Cable Equalization (BNC inputs, 1694 coax)
    • 270Mb: 400m
    • 1.5Gb: 200m
    • 3Gb: 140m
