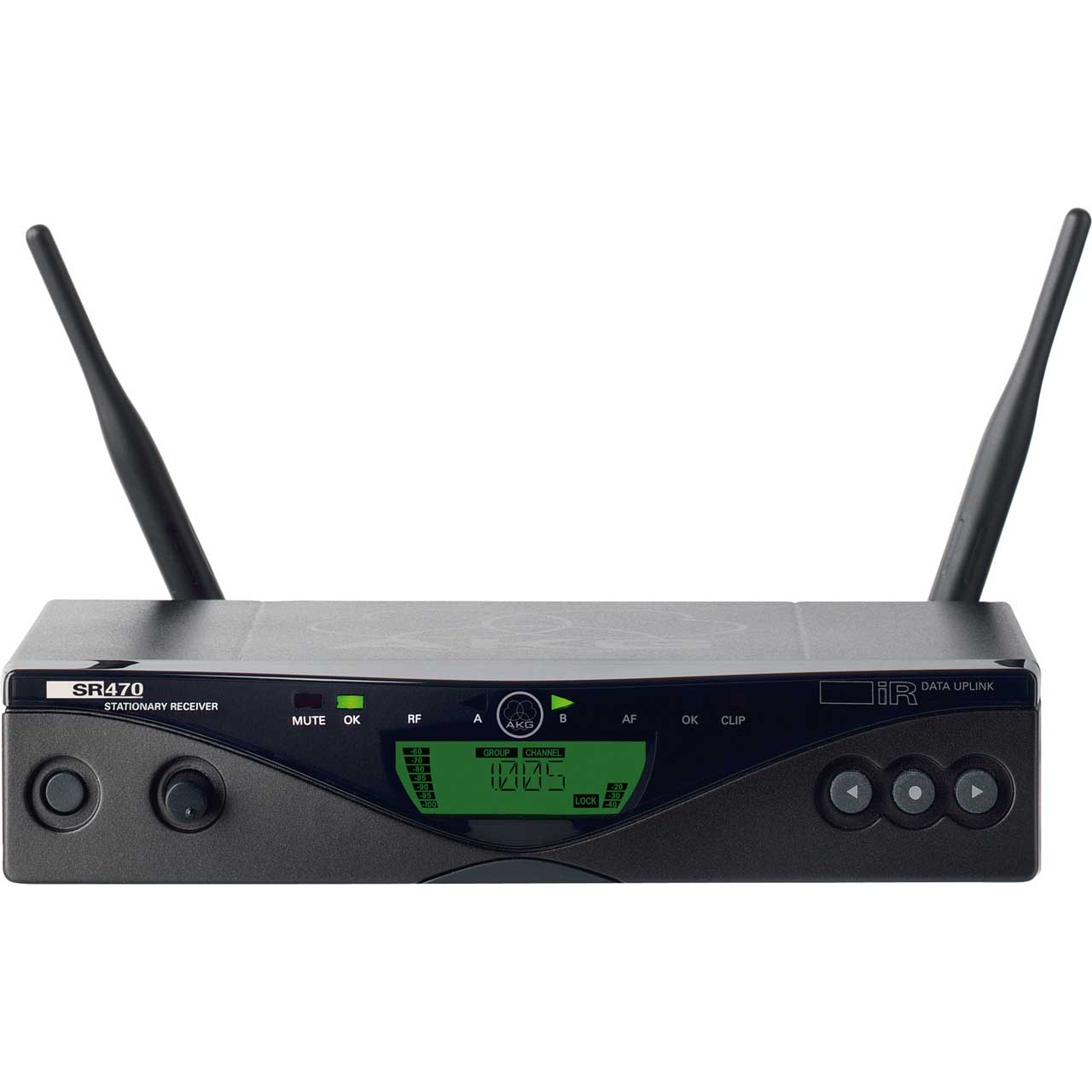

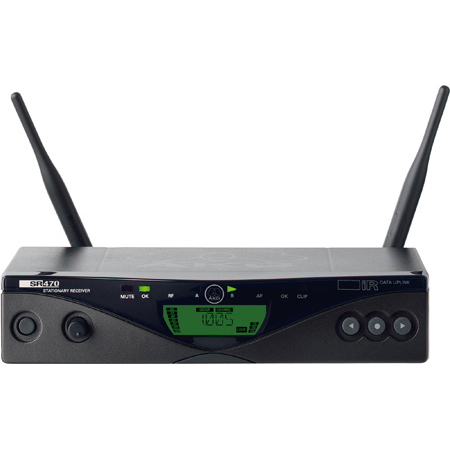

AKG SR470 BD8 Wireless Stationary Receiver - BD8 Frequency (570-600 MHz)

ITEM #: AKG-SR470-BD8 MFG #: 3300H00160

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$458.81

Our Price:

$359.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    3300H00160 - Overview

    Flexible and Expandable
    for conference, medium theater and houses of worship applications

    SR470 analog space diversity professional wireless receiver comes in a rugged half-rack metal housing. The enhanced Auto Setup, Environment Scan and Rehearsal mode allows a very quick and easy system setup. The programmable backlight changes color to warn the user of critical operating conditions e.g. transmitter low battery information, audio peaks, or low radio signal strength.

    A wide range of professional antenna splitters, power supplies, and high quality remote antennas are available to handle complex antenna systems and up to 48 simultaneous wireless channels, even with large covering area.

    • Features:

      • Enhanced automatic setup with channel preview for quick and easy system setup
      • Pre-coordinated TV channel frequency presets maximum channel density for multichannel systems
      • Environment scan and rehearsal functions for secure operation even in crowded radio frequency environment
      • Programmable multicolor backlight display clear visual information of selectable warning signals
      • External antenna connectors connect splitters, remote antennas and long cable runs to multi channel systems

    • Specifications:

      • Audio
      • Audio frequency bandwidth: 35 to 20000 Hz
      • Signal to Noise: 120 dB-A
      • THD at 1 kHz: 0.3 Prozent

      • Enhanced
      • Operating temperature range: -10 to 55 Celsius
      • Radio Sensitivity: -100 dBm

      • Radio
      • Switching bandwidth: 30 MHz
      • Recommended simultaneous channels: 32
      • Number of selectable frequencies: 1220 (selectable in 25kHz steps)
      • Frequency Selection: Selectable frequency in 25kHz steps
      • Wireless channels within device: N/A
      • Radio Range (Line of Sight): 100m (depending on antenna system)
      • Switchable RF Power: No
      • Modulation: N/A
      • Encryption: No encryption
      • Diversity: Space Diversity
      • Pilot Tone: Yes

      • General
      • Transmitter Synchronization: Infrared
      • HiQnet compatible: No
      • Racksize: 1/2 Racksize (19")
      • Rackheight: 1 RU

      • Antenna Interface
      • Amount: 2
      • Type: BNC
      • Gender: Female
      • Note: Radio input for connection to remote antennas

      • Audio Outputs 1
      • Amount: 1
      • Type: Balanced XLR
      • Gender: Male
      • Contacts: 3-pin
      • Note: Balanced audio output level switchable to -30 or 0 dB

      • Audio Outputs 2
      • Amount: 1
      • Type: Unsymetrischer Klinkenstecker (6,3mm)
      • Gender: Female
      • Contacts: 3-pin
      • Note: Unbalanced audio output

      • Powering Interface
      • Internal Power Supply: No
      • Type: Lockable DC Socket
      • Voltage: 12 to 12 V

      • Design
      • Body: Metall
      • Finish: Black

      • Dimensions / Weight
      • Length: 1.73"
      • Height: 7.95"
      • Width: 6.97"

    • GTIN:

      0885038029427
