Ambient Recording ACL204 Lockit Synchronizer and Time Code Transceiver for Video Cameras & Audio Recorders
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

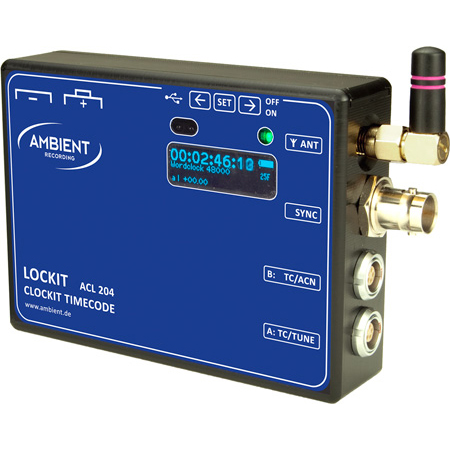

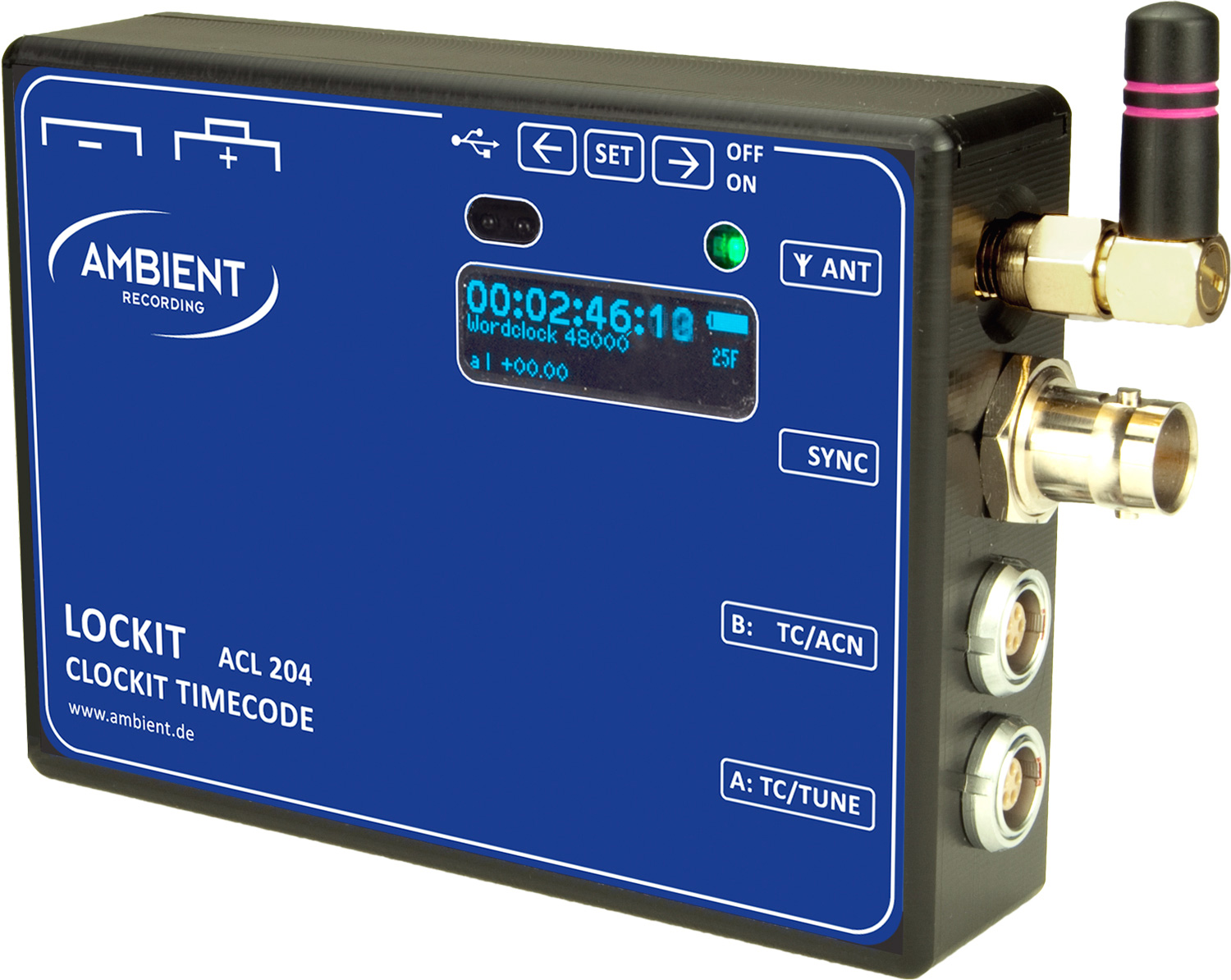

    Ambient Recording ACL204 Lockit Synchronizer and Time Code Transceiver for Video Cameras & Audio Recorders

    Manufacturer: Ambient Recording

    Item #: AMB-ACL-204   •   MFG #: ACL-204


    Our Price:$1,092.00

    free ship
    Availability: Usually ships in 3-10 business days
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.



      The Ambient Lockit ACL204 is based around a highly accurate, tunable, temperature compensated crystal. This way it is used to synchronize different devices without any cables or fragile wireless transmission.

      All Sync & Timecode Rates
      Surpassing the already comprehensive facilities of its predecessor it not only covers all timecode rates and sync formats but it also allows the user to apply an offset to the TC output to allow for the processing delay created in some HD cameras.

      3D Rig functionality
      3D camera rigs can be made lighter and neater by utilising the 2nd TC output, and the sync OP which can be switched to drive a dual load.

      The Ambient Clockit Network
      The integrated transceiver and the 2nd Lemo socket can be used to interface with the Clockit Network System. It also allows the ACL 204 to work as a fully functional, generator buffered wireless Time Code transceiver. With firmware version 3.1 or higher the new c-jam mode does not stop after the first jam. It will resend smaller timestamps every 4 seconds.
      All receiving units now compare their internal generated timecode with the highly accurate timestamp and pull up or down the generator speed until they are perfectly matched.This way a drift between all ACN devices on set can be avoided completely.

      Use your Lockit as computer Time Code & Sync Interface
      Plugged in into a computer, the Lockit transforms into a highly accurate Midi Timecode Interface with LTC / Midi Timecode conversion. This way the ACL 204 opens up the possibility to sync for examples multiple cameras with a Pro Tools workstation.

      To accommodate for all this the hardware has been completely revised into a flexible, fully programmable FPGA architecture. A front loaded OLED display will give instant visual feedback about the current configuration and assist while moving through the menu to make adjustments.

      This is now done on the fly with an easy to operate one-finger navigation system - no more need for screwdrivers or powercycling the unit.

      No mismatching Time Code & Sync settings anymore
      An intelligent algorithm will prevent configuration of improper, mismatched TC and Sync rates or unintended alterations to the setup. Still being a simplistic TC and Sync box at the core driven by 2 AA cells in the familiar rugged footprint the ACL204 can be considered the pinnacle of portable synchronization.

      • Features

        • Highly accurate time code generator
        • Generator buffered time code transceiver
        • Drift of less than 1 frame a day (~0,1ppm)
        • Supports all used frame rates
        • Supports all used video sync and wordclock formats
        • OLED Display readable even in brightest sunlight
        • Adjustable time code offset
        • Dual Sync Mode, 2 TC Out for 3D use
        • Built in antenna
        • RS232 and USB port
        • Full Ambient Clockit Network support
        • Works 30 hours on 2 AA batteries
        • Robust machined and anodized Aluminum body
      • Specifications

        • Time code: SMPTE / EBU (23,976, 24, 25, 29.97, 30 fps, 29.97/30 drop frame)
        • SYNC FORMATS: NTSC 59.94i
        • SYNC FORMATS: PAL 50i
        • SYNC FORMATS: 720p: 23.976, 24, 25, 29.97, 30, 50, 59.94, 60
        • SYNC FORMATS: 1080i: 50, 59.94, 60
        • SYNC FORMATS: 1080psF 23.976, 24, 25, 29.97, 30
        • SYNC FORMATS: 1080p 23.976, 24, 25, 29.97, 30, 50, 59.94, 60
        • Word Clock: 32, 44.1, 48, 88.2, 96, 176.4, 192 KHz, pull-up / pull-down
        • Black Audio AES3
        • Sample rates as above
