Ambient Recording ACN-ML Master Lockit Synchronizer and Time Code Transceiver for Cameras & Audio Recorders
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

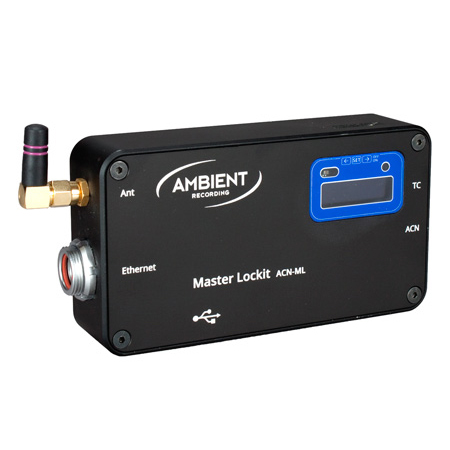

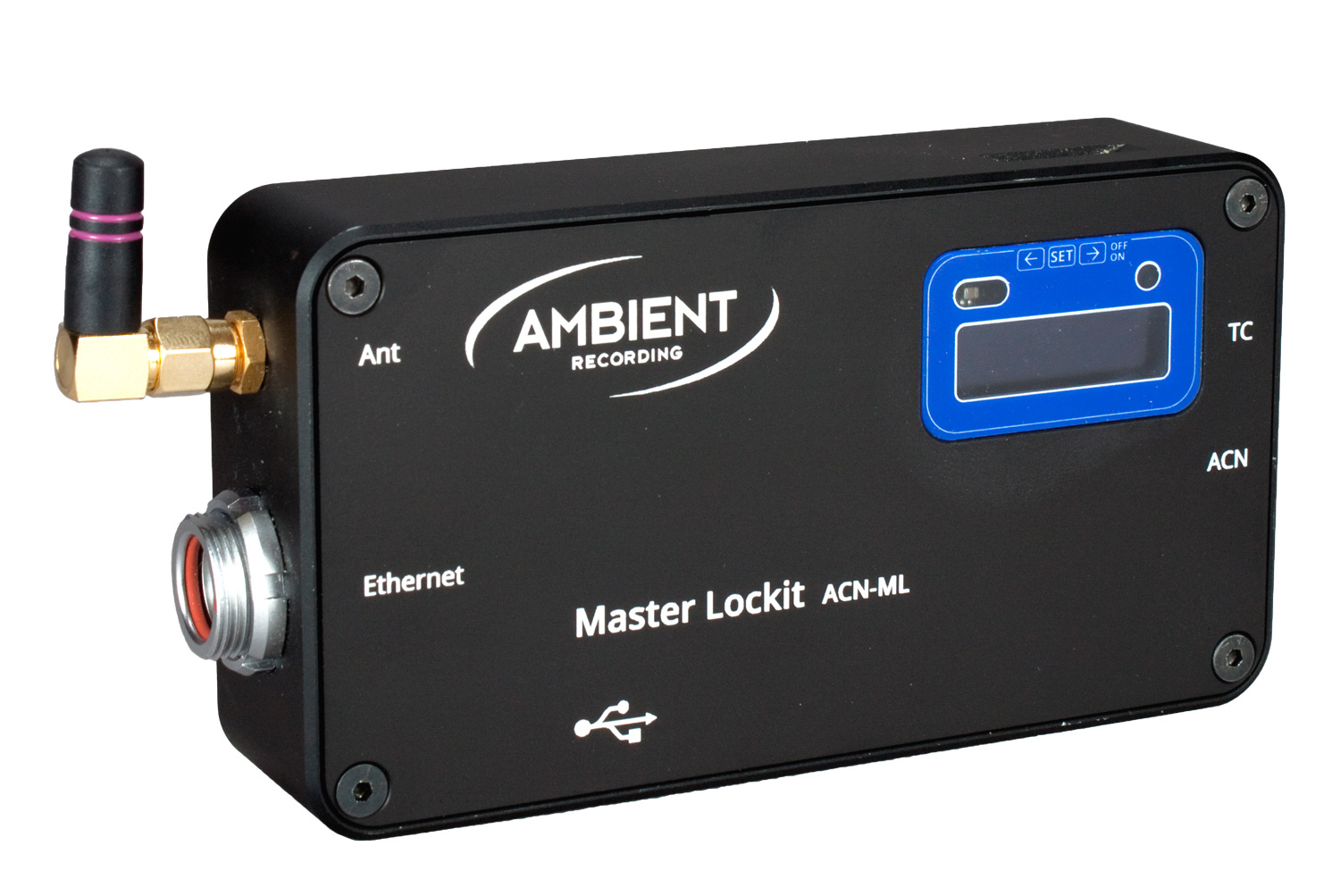

    Ambient Recording ACN-ML Master Lockit Synchronizer and Time Code Transceiver for Cameras & Audio Recorders

    Manufacturer: Ambient Recording

    Item #: AMB-ACN-ML   •   MFG #: ACN-ML


    Our Price:$1,248.00

    free ship
    Availability: Usually ships in 3-10 business days
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.



      It is a time code master, wireless video proxy server, and "On the Set" metadata synchronization hub.
      The ACN-ML Master Lockit is both the flagship and hub of the sophisticated Ambient Clockit Network System. It provides a rock solid, highly accurate, temperature compensating time code generator. With powerful, new processor architecture, it delivers established ACN features like 0.0ppm drift (thanks to continuous jam) as well as generator buffered time code transceiver mode, and more.
      Built-In WiFi enables ACN communication between iPads
      Built-in WiFi router enables iPads running LockitSCRIPT and Tonmeister apps to automatically sync all metadata. It serves as the metadata synchronization hub as it's onboard webserver collects and stores all metadata on the set. Meanwhile, iPads running LockitSCRIPT and Tonmeister apps maintain a local data backup.

      ARRI ALEXA communication plus collection of critical metadata with most cameras
      Ambient has partnered with ARRI to integrate ALEXA metadata protocol into the ACN-ML via Ethernet. This enables the Master Lockit to provide the ALEXA with the driftless time code while the Master Lockit simultaneously collects metadata. In addition, it has built-in GP I/O and LANC ports, enabling the Master Lockit to collect record start / stop positions of most cameras, including Red, Blackmagic and Panasonic.

      Wireless video proxy distribution directly into the LockitSCRIPT app
      Thanks to our partnership with Teradek and Vitec the Master Lockit (ACN-ML) can interface with their recorders, store up to 64GB of video, and distribute video proxys directly into the LockitSCRIPT app. These video clips are associated with the collected metadata. Now you can use the LockitSCRIPT app to reference actual video clips within associated takes and scenes, while accessing all data collected during that shot!

      • Features

        • WiFi routing for communication between LockitSCRIPT and Tonmeister apps
        • Proxy streaming and recording with Terradeck or Vitec streaming boxes
        • Collects and stores all ACN distributed metadata
        • Forwards metadata to iOS devices via WiFi / Bluetooth LE
        • Integrated webserver
        • Reads and stores Arri Alexa metadata via Ethernet
        • Reads and stores rec start/stop TC of all cameras with GP I/O or Lanc
        • Highly accurate Lockit time code generator
        • Generator buffered time code transceiver
        • Drift of less than 1 frame a day (~0,1ppm)
        • No drift at all within the ACN
        • Supports all used frame rates
        • OLED Display readable even in brightest sunlight
        • Adjustable time code output for recording TC on audio track
        • Material: rugged, anodized aluminum
        • Dimensions: approx. 121.5 x 66 x 30 mm
        • Weight: approx. 300 g
