Blonder Tongue AQT-RCS - Remote Configuration Server

ITEM #: AQT-RCS MFG #: 2736

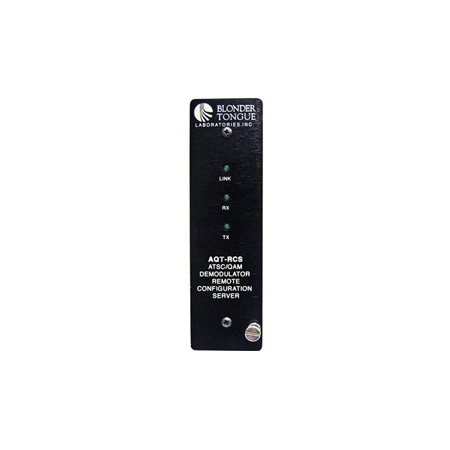

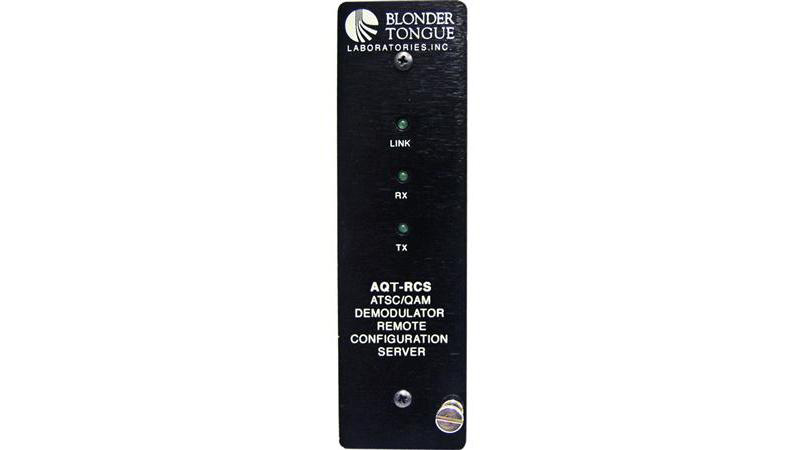

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AQT-RCS

2736 - Overview

The AQT Remote Configuration Server is an optional accessory module to allow remote monitoring and control of an AQT headend over the Internet. The Remote Configuration Server eliminates the need to load any special software onto a computer and uses a standard web browser to access the unit, optimized for use with Microsoftr Internet ExplorerT. The RCS permits communication at any time from anywhere in the world to your AQT headend possible making it an extremely economic and invaluable tool for every headend. The compact module fits in any open AQT rack slot, although the middle slot is recommended to make best use of the built-in temperature reading feature, and just needs an Internet connection to get up and running. The easy to program and use interface makes quick status updates fast and simple and features many advanced functions you won't find in any other product solution. Similar to the other remote monitoring tools in the Blonder Tongue Digital Products Family, the next generation AQT-RCS is the perfect compliment to an AQT headend and provides an operator with the ultimate customer service solution. The capability to "remotely diagnose and heal a field problem" in unmanned headend locations can eliminate a potential lengthy downtime and the need to for an immediate and costly truck roll, and is something that provides an operator the peace of mind they need. Contact Blonder Tongue today to add your Remote Configuration Server for the AQT Series.

  • Features:

    • Optional Unit Permits Complete Remote Monitoring & Control ofAll AQT Units at a Headend Location
    • No Software Installation Required & Works with any Computer- MAC or PC - Uses Standard Web Interface
    • Easy to Use Graphical Interface with Advanced Functions Like RealTime Status and Headend Temperature Monitoring

  • Specifications:

    • Programming CapabilitiesIP Addressing ModesFixed Static IP
    • User Name & PasswordSoftware Settable
    • Administrator & View Modes
    • MechanicalModule Dimensions (W x H x D)11.3 x 5.25 x 1.5 in., 287 x 133.4 x 38 mm
    • Module Weight1.5 lbs., 0.68 kg
    • Chassis Dimentions (W x H x xD)19 x 5.25 x 12 in., 483 x 133.4 x 305 mm
    • MountingStandard 3 EIA Unit Height -5.25 x 19 in., 133.4 x 483 mm
    • GeneralPower Requirement5 VDC, 200 mA
    • Operating Temperature0° to +50° C
    • Storage Temperature-20° to +70° C
    • Humidity0 to 95% RH
    • ConnectorsRJ-45 Ethernet Connector RJ-11 RS-232 Serial Data Connector 12-pin Power Connector
    • IndicatorsEthernet Link LED, Ethernet Transmit LED
