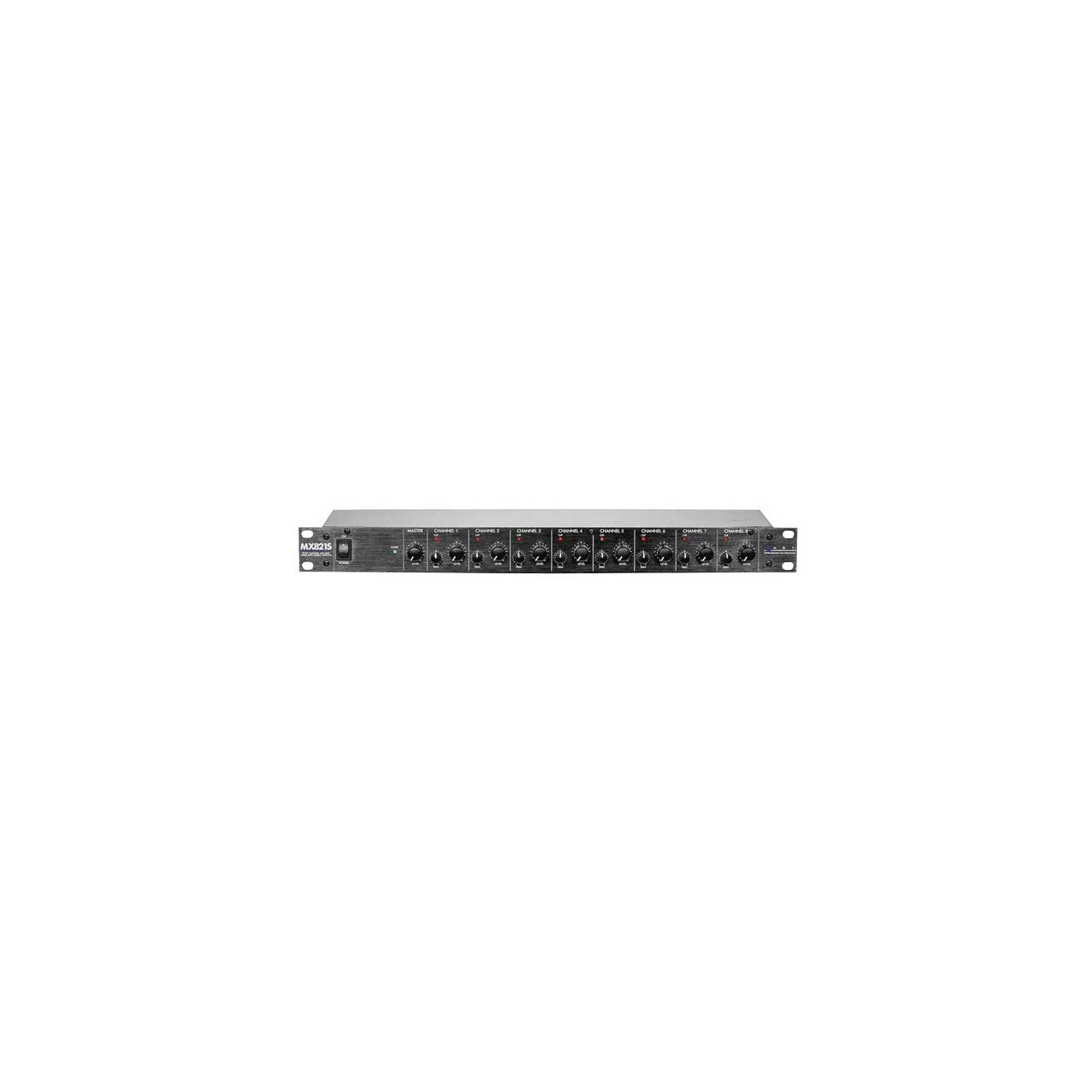

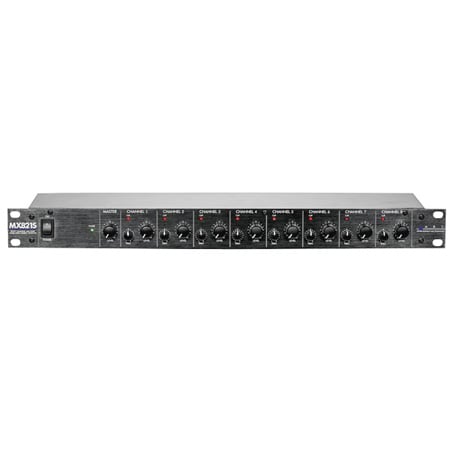

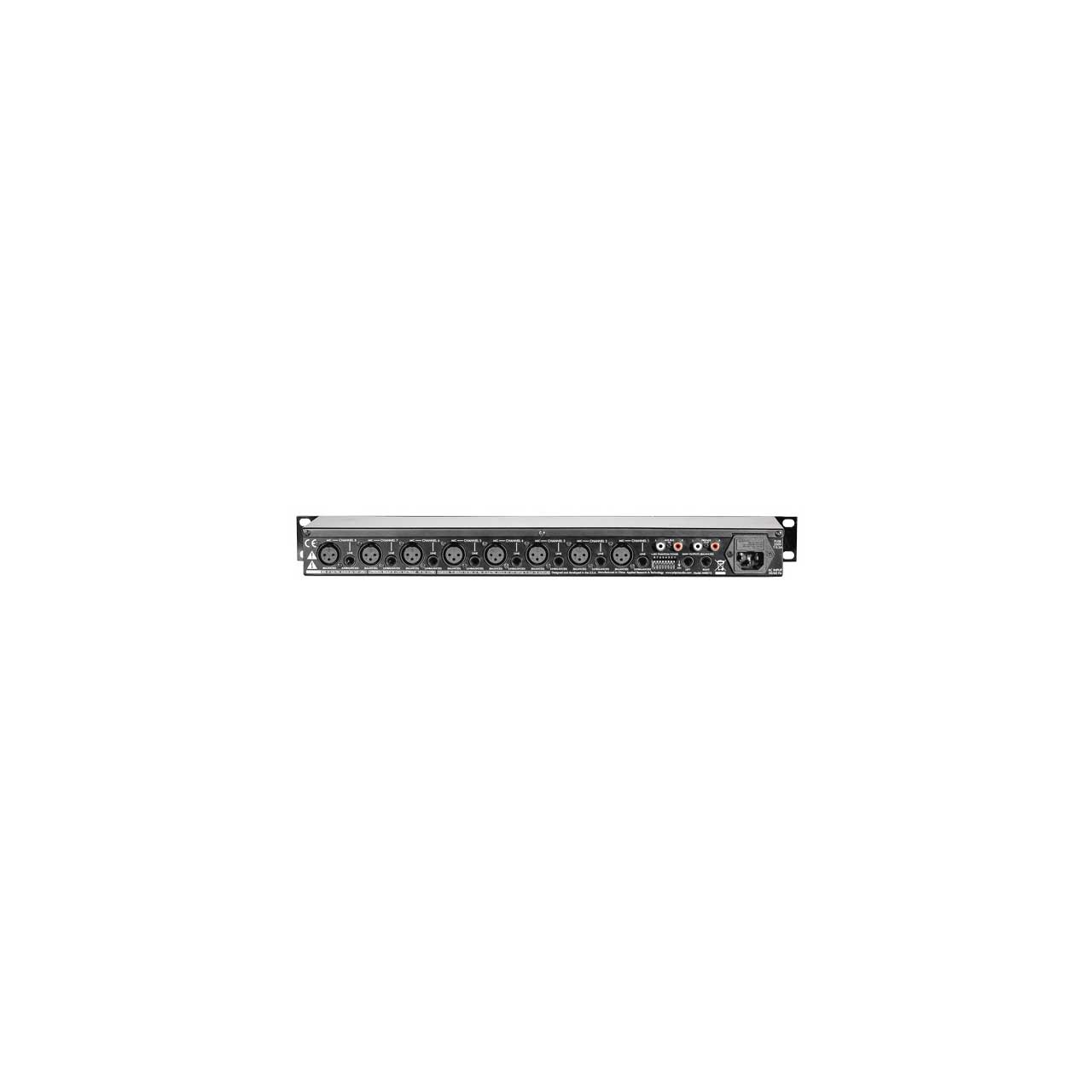

ART MX-821S Eight Channel Stereo Mic/Line Mixer with Stereo Outputs

Item #: ART-MX821S   •   MFG #: MX821S


List Price:$229.00
Our Price:$185.00

free ship
Availability: Usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.



    The ART MX821S is a versatile rack mount mixer combining eight independent input channels into a stereo line-level output. Each input channel accepts a balanced XLR microphone input or unbalanced 1/4-inch TS line-level signal and provides independent level and pan controls.

    +48 Volt phantom power may be independently selected on each microphone input. A master level control adjusts the signal output to the low-impedance balanced 1/4-inch TRS jacks. Prefade output (not affected by the master level control) and Aux Bus input RCA jacks allow patching of multiple units when more channels are needed.

    The ART MX821S may be used on stage, in the studio, or for permanent install applications including conference rooms, corporate boardrooms, churches, restaurants, small clubs, health clubs and more. A built-in power supply and single high 19-inch rack mount format allows for easy installation and reliable long-term operation.

    • Features

      • Eight input channels with individual level and pan controls
      • Pan controls place each input mono signal anywhere in the output stereo image
      • Balanced microphone XLR or unbalanced 1/4-inch TS inputs on each channel
      • Full +48V low noise phantom power switchable for each microphone input
      • Balanced left and right 1/4-inch TRS main output jacks with master level control
      • Prefade Output jacks and Aux Bus Input jacks allow units to be chained to provide extra inputs
      • Each line input jack may be individually converted to a direct line output by means of internal jumpers
      • Rugged 1U rack-mount steel chassis with built-in power supply
      • Perfect for stage, studio and permanent installations
    • Specifications

      • Input Connections:
      • XLR female balanced (Mic, channels 1-8)
      • 1/4-inch TS unbalanced (Line, channels 1-8)
      • RCA unbalanced (Aux Bus In, Left and Right)
      • Output Connections:
      • 1/4-inch TRS balanced (Main Outputs, Left and Right)
      • RCA unbalanced (Prefade Out, Left and Right)
      • Input Impedance 2k Ohms (Mic), 20k Ohms (Line), 51k Ohms (Aux Bus In)
      • Output Impedance 200 Ohms (Main Outputs, balanced), 100 Ohms (Prefade Out)
      • Frequency Response 20 Hz - 20 kHz (+0, -1 dB) (CH 1-8 in, M
      • Total Harmonic Distortion <0.01% @ 1 kHz, typical
      • Phase Response All connections are phase coherent
      • Signal to Noise Ratio >99dB typical (Ref 0dBu)
      • CMRR >43 dB typical
      • Maximum Input Level -4 dBu (Mic), +22 dBu (Line)
      • Maximum Output Level +24 dBu (balanced), +18 dBu (unbalanced)
      • Maximum Gain 54 dB (Mic), 29 dB (Line)
      • Phantom Power Switch Selectable, +48V DC (regulated and filtered), 7 mA current limiting per l
      • Dimensions 1.75" x 19" x 6" (4.5cm x 48.3cm x 15.2cm)
      • Weight 6.3 lbs. (2.9 kg)
      • Power Requirements USA: 95-125 VAC, 50-60 Hz, <15W
