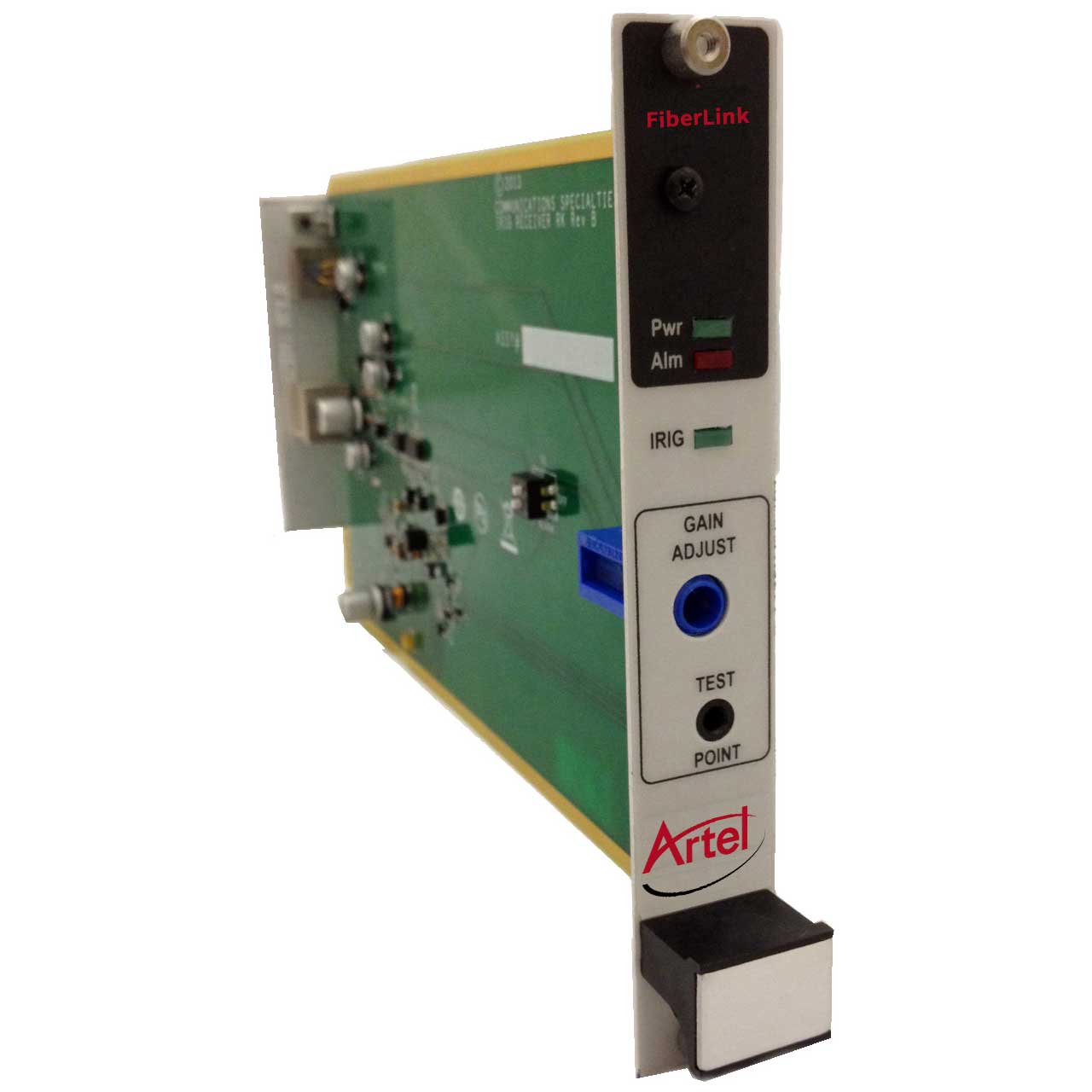

Artel RA-1900-C1S IRIG 850nm Fiber Optic Card - ST Connector - Multimode - Receiver

RA-1900-C1S - Overview

• Features:

  • Transmits IRIG and similar NASA and NBS standard instrumentation time-code formats up to 100 kHz

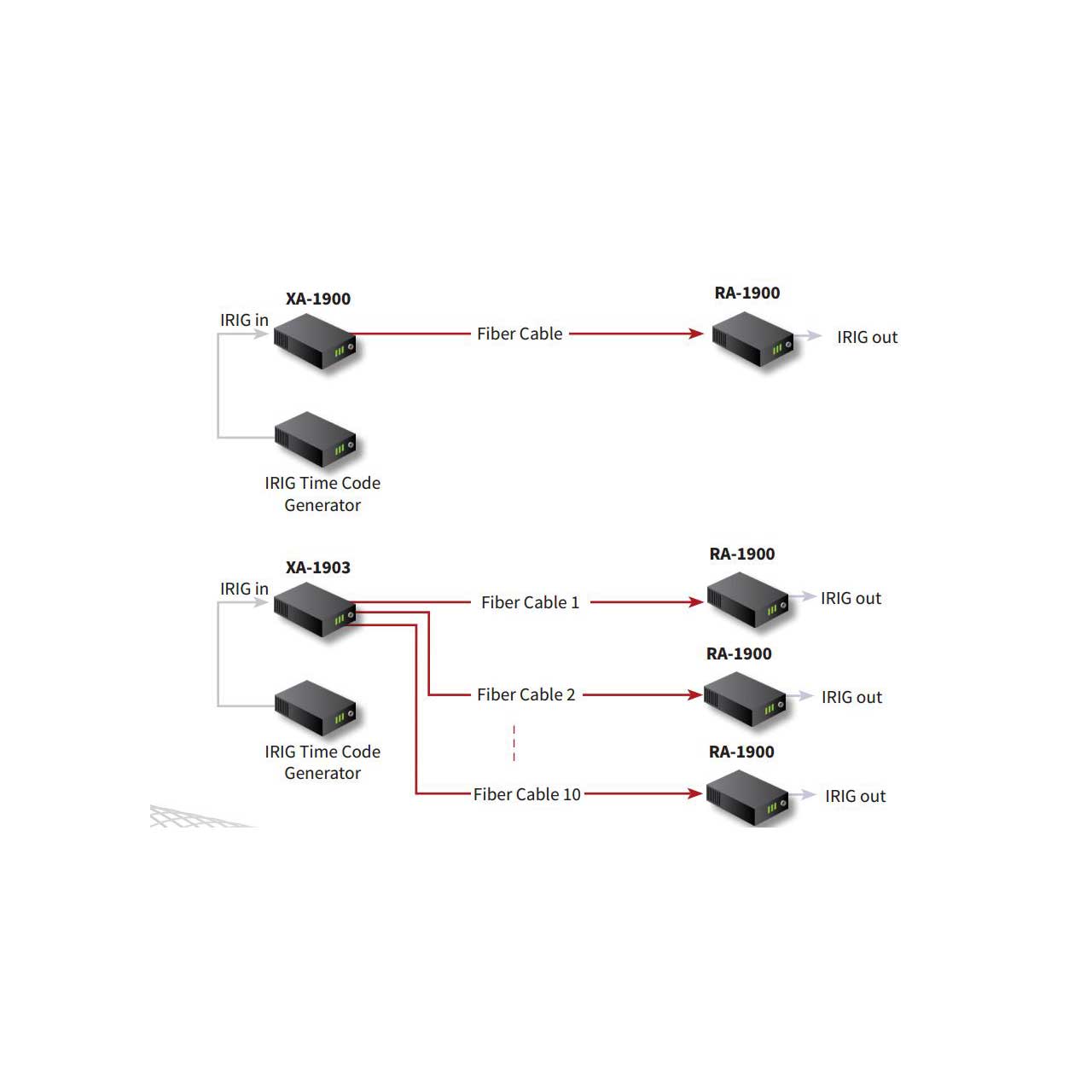

  • Combinations of three different units may be configured to provide point-to-point, point-to-multipoint
  • Built-in regulated power supplies allow operation from unregulated AC or DC sources
  • Transmits at 850 nm or 1310 nm over standard multimode or singlemode fiber
  • XA/RA-1900 cards fit the 6000A card cage


• Specifications:

  • Data
  • Number of Channels: 1
  • Number of Outputs per Channel: 1
  • IRIG Compatibility: A through H
  • System Bandwidth (+0, -3 dB): 20 Hz to 100 kHz
  • Input/Output Load Impedance: 600 Ohms nominal
  • Input/Output Signal Voltage: 1 volt rms
  • Signal/Noise Ratio: 67 dB typical
  • Noise Floor (full bandwidth): 1.3 mv rms maximum

    General
  • Number of Fibers: 1 fiber
  • Operating Temperature: -20° to +60° C
  • Operating Power (per unit): +15 to +25 volts DC at 250 mA or 14 to 18 volts AC, 50/60 Hz
  • Dimensions: 5 W x 1.25 H x 2.5 L (inches)
  • Weight: Approx. 1 lb;
  • Optical Connectors: ST: Multimode
  • Optical Wavelength: 850 nm
  • Optical Fiber: 50 or 62.5 micron multimode fiber
  • System Delay: < 5 uSec; Measured from a Transmitter input to a Receiver output with 1 meter of fiber. Does not include any additional length of fiber. Consult fiber cable manufacturer for specific propagation delay. An approximate fiber cable propagation delay is approximately 5 uSec/km.
  • MTBF: 181,000 hours

    Operating Loss Budget and Maximum Usable Distance
  • Wavelength: 850 NM
  • Loss (dB): 0 - 10 dB
  • Distance (km): 0-3.5 (62.5u)
