ARX DE-Balance-8 4 Stereo (8 Mono) XLR in to RCA Level Optimizer

Manufacturer: ARX America



List Price:$695.00
Our Price:$611.60

free ship
Availability: Direct Ship From Manufacturer
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
  • Drop-shipped (normal delivery time 2-7 business days) shipping UPS ground. (Sales tax may apply.)
  • Special Order Item: non-cancelable, non-returnable, non-refundable.



Sooner or later there comes a time when Pro Audio Balanced outputs need to be converted to Unbalanced, to silently interface with the -10dB unbalanced inputs of consumer electronics. Distortion and noise from a mismatch at this point will be amplified throughout the system. Now there's a simple and straightforward solution to this problem - the all-new ARX DeBalance 8, an 8 channel audio Debalancer and Level Optimizer specifically designed to handle this critical task.

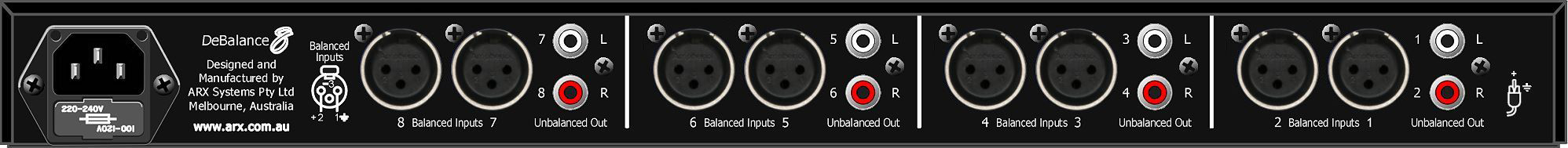

ARX's proprietary debalancing circuits take the Balanced +4dB levels from professional audio systems and effortlessly convert them into the unbalanced signals that all units with unbalanced inputs need, such as LCD, LED and plasma screens and other consumer-type products Inputs are industry standard balanced 3 pin XLR type, and outputs are unbalanced RCA connectors.

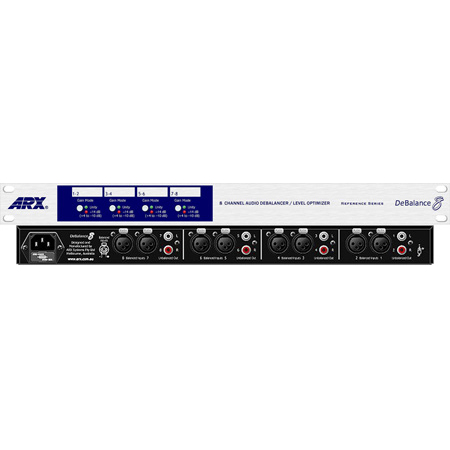

Pairs of Gain Mode switches on the front panel let you select unity gain through the DeBalance 8, using it as a debalancer only, or as a level optimizer as well, bringing the +4 dB levels down to -10 dB (-14dB overall loss). Status LED's on the front panel indicate which mode has been selected. Housed in a rugged all steel chassis with extruded aluminium front panel, the ARX DeBalance 8 is the ideal professional engineer's tool for the critical task of impedance and level converting.

Every day, ARX Audio interface products solve audio problems for thousands of people around the world. We know we're obsessive about audio quality, but we're betting that you are, too.

  • Features

    • Studio, Live Sound and Broadcast
    • Patch Bays
    • AV Systems/CD/VIDEO
    • Anywhere unbalanced signals need converting to professional balanced signals
  • Specifications

    • Input Impedance: 44K Ohm Balanced.
    • Input Headroom: +24dB.
    • Input Connector: Female XLR, wired Pin 1 Gnd, Pin 2 + Hot, Pin 3 - Cold.
    • Output Connector: RCA (Phono).
    • Output Impedance: 150 Ohms Unbalanced.
    • Output Level (max): +24dB.
    • Frequency Response: 10Hz- 30KHz ±0.25dB.
    • Signal to Noise Ratio: -96dB unweighted, -102dB A weighted.
    • Distortion: .003% THD, 100Hz, .0025% THD, 1KHz, .00325% THD, 10KHz.
    • Dynamic Range: 120dB.
    • Gain Loss: 0dB Unity, mode switch out, -14dB, mode switch in (+4dB to -10dB level matching).
    • Power: 100-120/220-240 VAC 50/60Hz, 5VA (5 watts) on 3 pin IEC connector with removable cable.
