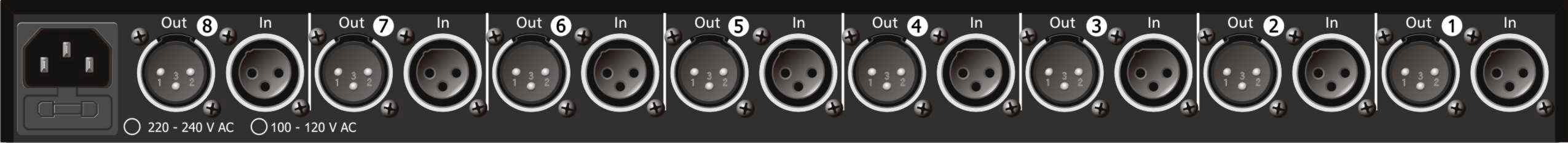

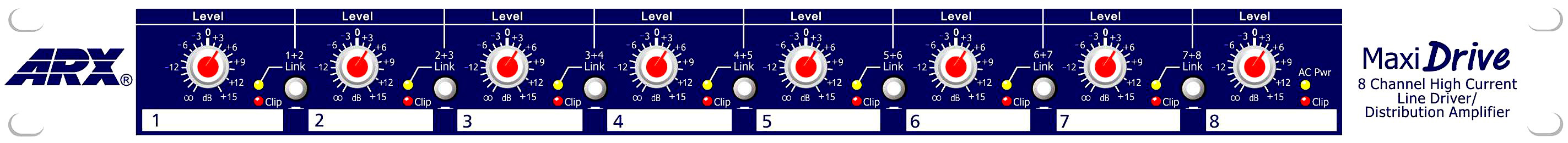

The ARX MaxiDrive Line Driver and Distribution Amplifier provides 8 High Current Line outputs from 8 inputs. Each Output can be linked to the preceding one to provide any configuration required.
For example: 8 In, 8 Out, 2 x sets of 1 In, 4 Out, 1 In, 8 Out or similar can be set up simply by pressing the Link switches to link a channel to its predecessor.

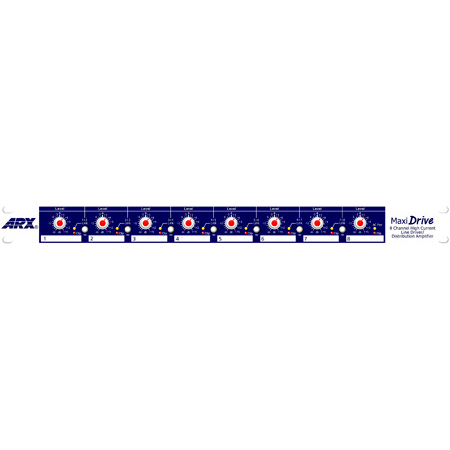

The MaxiDrive's intuitive layout and clear, uncluttered labelling enables a quick and easy solution to the increasing demands of today's standards of audio production.
Probably the single biggest improvement you can make to a Line Array system?
With the advent and widespread use of large self powered line array loudspeaker systems, the change in system signal drive requirements has been missed by many Signal Processor / DSP Processor Designers and Manufacturers.
Here at ARX we realise that the real work doesn't end at the male XLRs on the rear of the system processor. More consideration needs to be given to what follows on in the signal chain, plus the demands multiple loudspeaker input impedance loads place on processor output stages.
The perceived grittiness and lack of clarity at high operating levels sometimes attributed to the Loudspeaker system's performance could more likely be attributed to the inability of the preceding signal processors in the audio chain to drive low impedance loads at high voltage levels over long reactive cables, which present both a capacitive and inductive load to the output drive stage.
In short, you need a line driver that can comfortably drive multiple inputs per channel with the headroom required for accurate audio reproduction. The MaxiDrive is that line driver. Its very low output impedance virtually eliminates any deleterious cable loading effects and high frequency loss.
Enter the MaxiDRIVE
The circuit topography chosen for the ARX MaxiDrive 's output has more in common with a power amplifier than the low current opamp derived circuits usually favoured by designers, which are expected to operate into loads of 600ohms and higher.
Improving the performance of Non Powered Systems as well.
The ARX MaxiDrive will of course happily provide the current drive and voltage swing to drive multiple power amplifiers in large non self-powered systems, removing the requirement for individual signal splitters and line buffers in separate amplifier racks.
Conventional loudspeaker processor output stages can find driving multiple Amplifier racks using line input transformers too complex a load to retain their low distortion performance. The ARX MaxiDrive will retain its specs while driving multiple amplifier channels.
ARX's design team has engineered the MaxiDrive for maximum reliability, using premium components through all audio and power supply circuits.
All integrated circuits (ICs) are premium quality devices manufactured by JRC, and all Audio signal chain Electrolytic capacitors are bypassed with low value polyester capacitors to ensure pristine high frequency performance.
Every MaxiDrive is hand soldered, with a 100% visual PCB QC check prior to assembly. Which is why we say...
You'll never compromise on Quality when you choose ARX
