    ARX MSX 12 - 4 in 12 Out ISO-Transformer Microphone/Line Splitter

    Manufacturer: ARX America

    Item #: ARX-MSX-12   •   MFG #: MSX-12


    List Price:$695.00
    Our Price:$611.60

    free ship
    Availability: Direct Ship From Manufacturer
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
    • Drop-shipped (normal delivery time 2-7 business days) shipping UPS ground. (Sales tax may apply.)
    • Special Order Item: non-cancelable, non-returnable, non-refundable.



    The ARX MSX 12 Transformer isolated Microphone/Line Splitter has been developed to deliver noise-free audio splitting with minimal setup time. Its intuitive layout and clear, uncluttered labelling enables a quick and easy solution to the increasing complexity of today's standards of audio production.

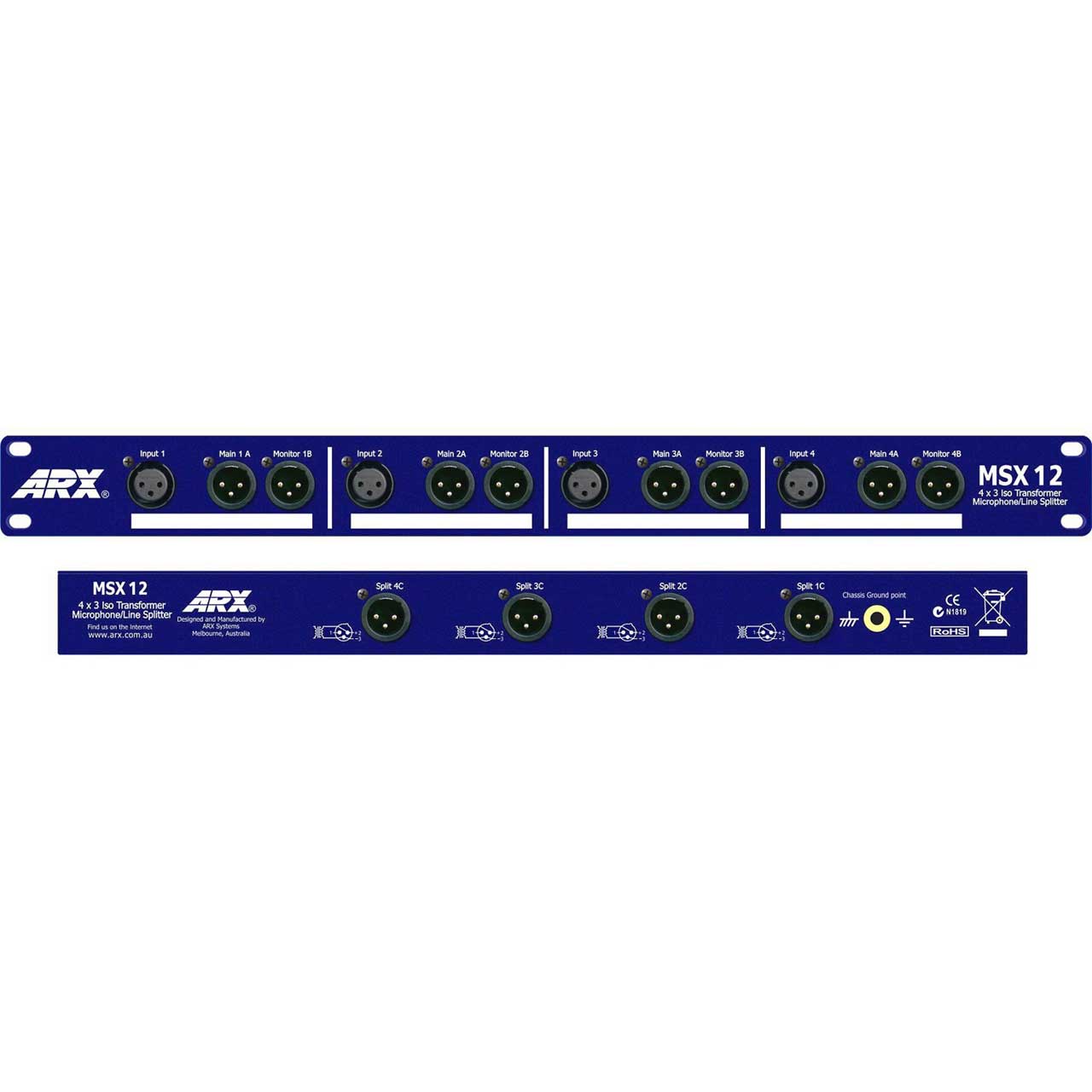

    The MSX 12 is a totally passive device requiring no power, and consists of Four channels of transformer isolated ultra low noise Microphone/Line Splitter. Each of these channels has a direct looped Main/FOH feed, and a transformer isolated Monitor split on the front panel.

    On the rear panel is an Auxiliary transformer isolated split ideal for use with a remote recording truck or TV feed.

    Marker panels on the front provide a space where individual channel connections can be noted.

    The all-steel chassis of the MSX 12 provides strong interference resistant shielding. Internally, state-of-the-art transformers deliver superb audio quality and total galvanic isolation.

    The MSX 12 is the easy answer to multi channel signal splitting requirements.

    • Features

      • Four channel / three way split per channel
      • Passive unit - no power required
      • Ultra low noise design, Flawless audio performance
      • Transformer Balanced Inputs and Outputs
      • Inputs and Main Outputs hard wired to pass Phantom Power
      • Intuitive, 'user friendly' layout
      • Houses of worship, Conference centers, Educational facilities
      • Broadcast splitting
    • Specifications

      • Input Impedance: 300 Ohms.
      • Output Impedance: 2 secondaries @ 600 Ohms each.
      • Frequency Response: 30Hz - 20 KHz ± 1dB.
      • Maximum Output Level: + 20dBm.
      • THD at Max Output: 0.2% 30 Hz - 20KHz @ 20dBm.
      • Insertion Loss: 0.5dB @ 1 KHz (600 Ohm source & load).
      • Input Connectors: 3 pin female XLR wired Pin 2 + Hot, Pin 3 - Cold.
      • Main Output: 3 Pin male XLR wired Pin 2 + Hot, Pin 3 - Cold.
      • Monitor & Aux Output Split: 3 pin male XLR wired Pin 2 + Hot, Pin 3 - Cold. Audio grounds not connected; Pin 1 is floating.
      • Weight: 5 lbs (2.2 Kg).
