ARX USB-I/O VSR USB Broadcast DI Box 24 Bit Asio Driver Variable Sample Rates 44.1 - 48 - 96KHz

ITEM #: ARX-USB-5 MFG #: USB-5

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ARX-USB-5

USB-5 - Overview

ARX is excited to present the new ARX USB I/O VSR (USB-5) a true Plug and Play USB 24 bit High Resolution digital/analog pro audio interface. VSR stands for Variable Sample Rate - which allows the unit to record and playback at three different sample rates: 44.1, 48, and 96 KHz.

The ARX USB I/O VSR installs as a fully compatible generic USB audio device. The default sample rate of 24 bit 44.1 KHz requires no special driver program installation on Mac OSX, Win XP, and Win7 or 8 - just plug and play. To run the expanded Hi Res sample rates of 48 and 96 KHz, an ASIO driver is available for download from the ARX website.

  • Features:

    • Plug and Play or Install ASIO Driver - your choice

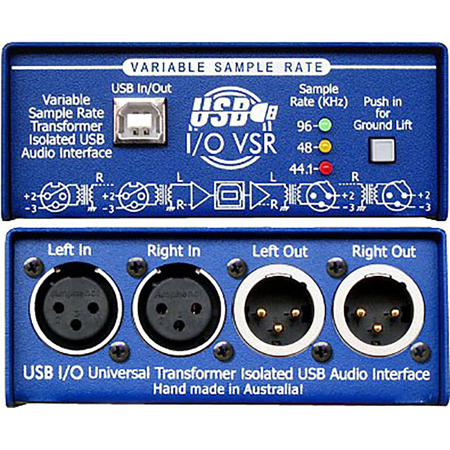

    • Controls and Connectors: The front panel has Left and Right transformer balanced and isolated analog XLR Input and Output connectors that connect to all standard balanced analog Inputs and Outputs. On the rear panel there is a Type B USB connector, as well as a ground lift switch. Sample Rate LEDs indicate that the USB I/O is connected and operating, and also which Sample Rate has been selected.
    • Transformer Balanced: The USB I/O VSR features full transformer balanced Inputs and Outputs, providing the isolation required to eliminate earth loops / ground hum and other extraneous interaction noise and distortion.
    • Analog Style Headroom: Analog 0dB In = -18dB, FS Digital, providing Analog style headroom when recording in the digital domain. The signal then reverts to 0dB Analog Out, giving you the best of both worlds. The USB I/O VSR (USB-5) is housed in a heavy duty all-steel chassis finished in attractive matt textured polyurethane, with hardwearing epoxy screen printing and non-slip rubber base pad. It is ideal for interfacing any USB equipped computer (especially notebook/laptop computers) with the balanced inputs and outputs of professional sound systems. Security features include Kensington-type computer lock slot and optional bracket kit for under-table mounting.


  • Specifications:

    • Maximum Analog Input Level: +12dB
    • Digital Recording And Playback Level for 0dB Analog In: -18dBFS (full scale)
    • Maximum Analog Output Level: 18dB
    • Input Impedance: 10kΩ Transformer Balanced
    • Output Impedance: 300Ω Transformer Balanced
    • Maximum Input Level: Nominal 0dB
    • Maximum Output Level: Nominal 0dB
    • Input/Output Noise: USB - System dependent
    • Frequency Response: 20Hz - 20kHz ±0.5dB
    • Power: Operating current via USB Port 80mA
    • Input Connectors: 2x Female XLR
    • Output Connectors: 2x Male XLR
    • Construction: All-steel baked enamel coated chassis, fibreglass PCB, epoxy printing, non-slip rubber base. Package includes a premium quality USB-A to USB-B cable
    • System Requirements: Windows PC running Windows XP, Windows 7 or 8, Mac running OS X or later

    • USB port
    • Audio software installed
    • ARX ASIO Driver loaded http://www.arx.com.au/drivers.htm


  • Item Includes:

    • USB-A to USB-B cable


  • Warranty:

    • Lifetime Warranty
