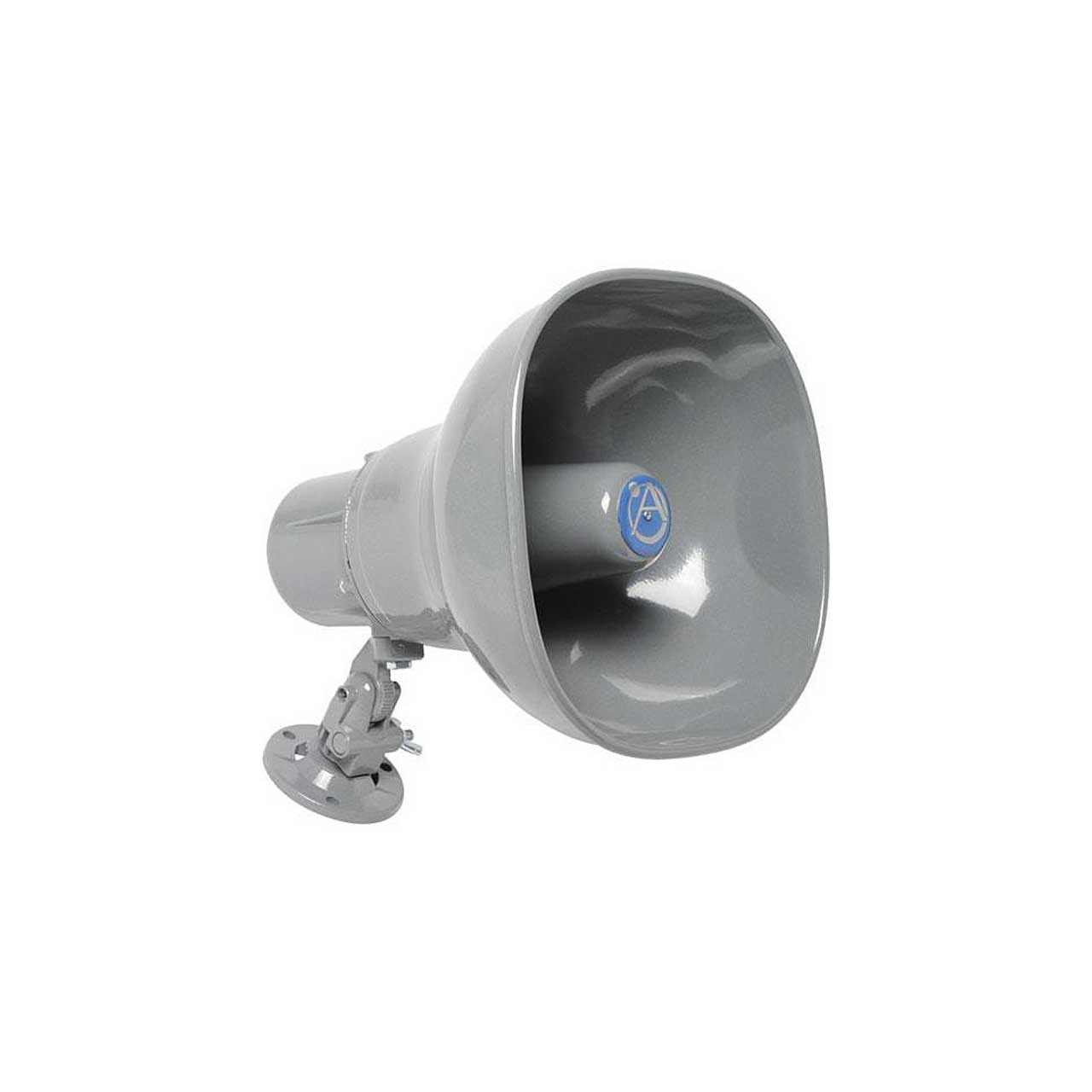

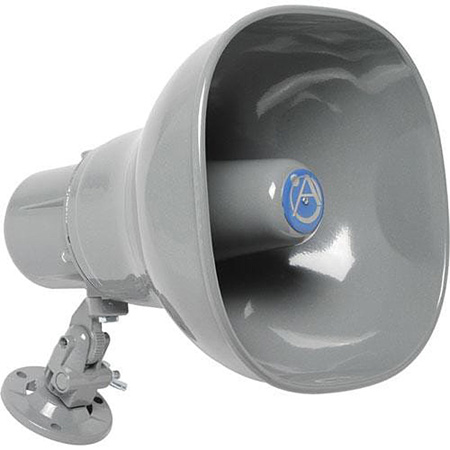

Atlas AP-15TU Emergency Signaling Horn Loudspeaker with 25V/70.7V-15W Transformer

ITEM #: ATL-AP-15TU MFG #: AP-15TU

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$174.99

Our Price:

$141.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    AP-15TU - Overview

    AtlasIED AP-15TU loudspeakers are equipped with a compression driver providing up to 15 watts RMS power handling capability, superior intelligibility and dispersion to achieve maximum sound projection and penetration.

    Weather-resistant metal construction and re-entrant acoustic path assure protection against water, humidity, vermin and corrosion. The Omni-Purpose mounting bracket allows directional sound dispersion via vertical and horizontal positioning. Provisions are also included for surface or strap mounting to pillars and I-beams.

    All models include a built-in 25/70.7V Vari-Tap transformer featuring a screw-driver adjustable, 7-position watt/impedance selection switch. Wiring terminals are protected with a vandal-resistant adapter cover for control equipment utilizing cable or conduit. Model AP-15TU is not equipped with a capacitor.

    Model meets or exceeds the UL Listed standards for audible signal appliances and are capable of operating within an ambient temp. range of 66°C (150°F) to -35°C (-30°F). Model complies with UL Standard 1480—Loudspeakers for Fire Protective Signaling Systems and California State Fire Marshal (Title 19).

    • Features:

      • 15-Watt High Efficiency Compression Driver
      • Built-In Vari-Tap Transformer for Easy Impedance Selection
      • Omni-Purpose Surface Mounting Bracket For Precise Positioning
      • Optional 5 MFD Capacitor for Line Supervision
      • Recommended for High Intelligibility Paging, Intercommunication, and Signaling
      • Vandal-Resistant, Weatherproof Construction
      • UL Certified, Safety Listed to UL1480

    • Specifications:

      • Frequency Response: 400Hz - 14kHz
      • Sensitivity: 106dB
      • Dispersion: 70°
      • Power Rating: 15 Watts
      • Safety Listed: 1480
      • Operating Temperature Range: -40 to 70°C
      • Dimensions (H x W x D): 8 3/4" x 7 7/8" x 9 5/16"
      • Shipping Weight: 5.00 lbs

    • GTIN:

      0612079110391
