Atlona AT-UHD-SW-52ED 4K/UHD 5 Input HDMI Switcher with Mirrored HDMI - HDBaseT Outputs - PoE
  • Atlona AT-UHD-SW-52ED 4K/UHD 5 Input HDMI Switcher with Mirrored HDMI - HDBaseT Outputs - PoE
  • Atlona AT-UHD-SW-52ED 4K/UHD 5 Input HDMI Switcher with Mirrored HDMI - HDBaseT Outputs - PoE

Questions? Ask a Markertek Expert:
800-522-2025 Email

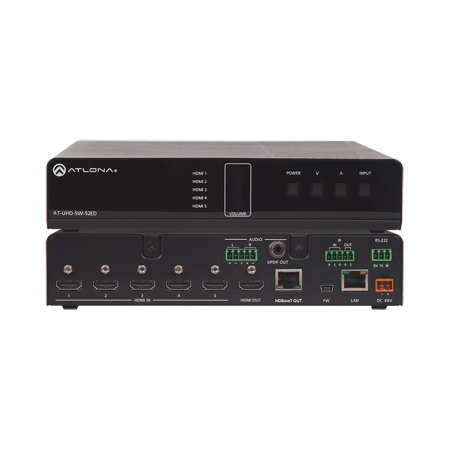

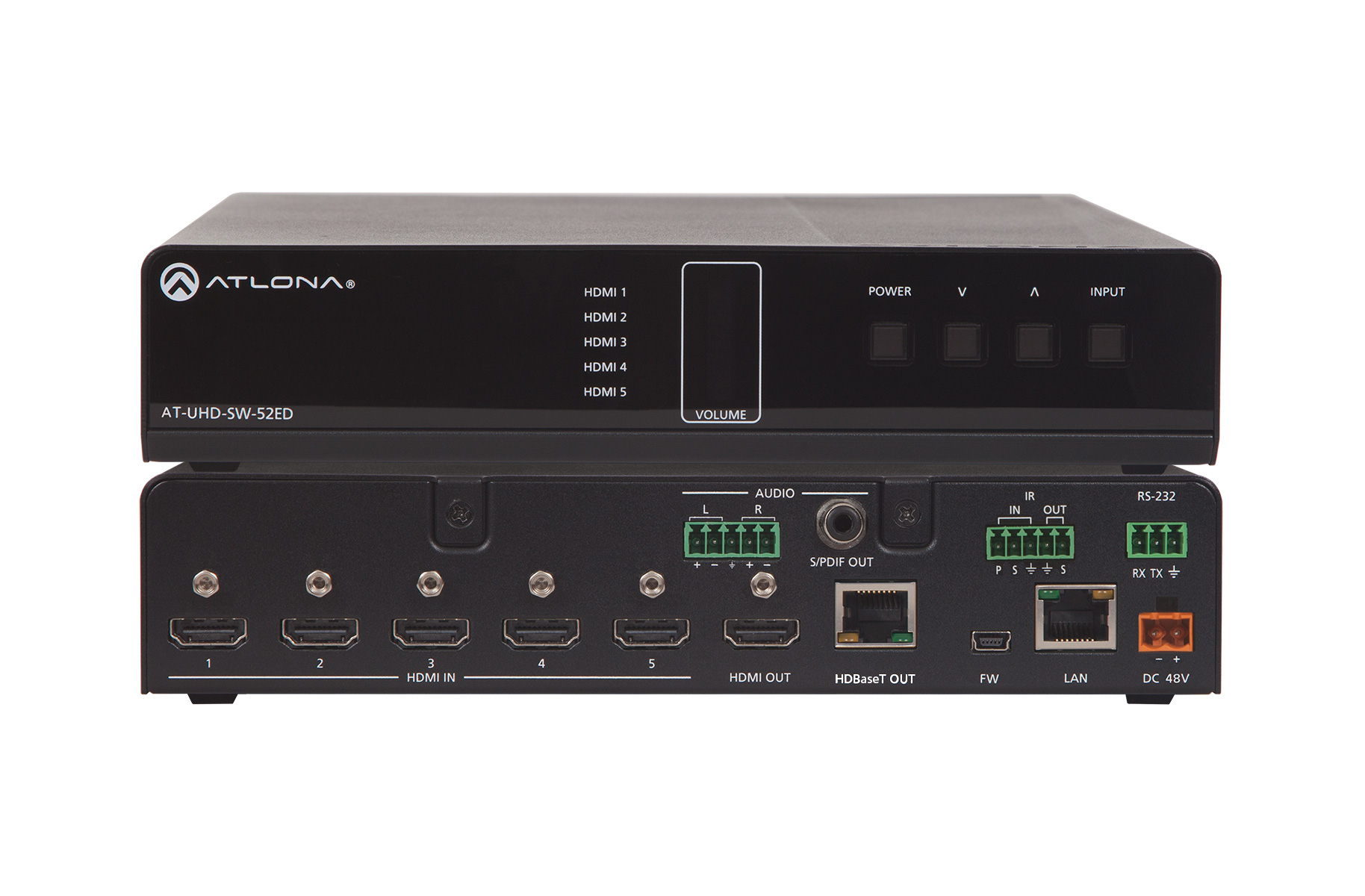

Atlona AT-UHD-SW-52ED 4K/UHD 5 Input HDMI Switcher with Mirrored HDMI - HDBaseT Outputs - PoE

Manufacturer: Atlona Technologies

Item #: ATNO-UHD-SW-52ED   •   MFG #: AT-UHD-SW-52ED


We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!

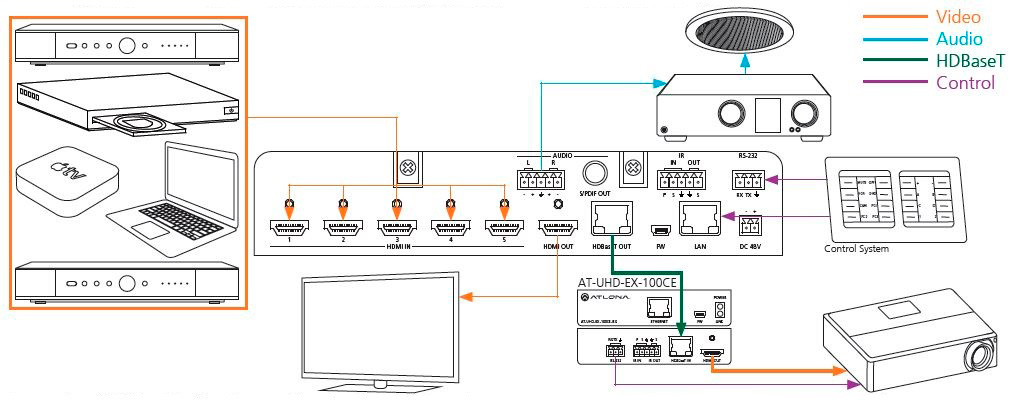

The Atlona AT-UHD-SW-52ED is a 5x1 HDMI switcher with mirrored HDMI and HDBaseT outputs, balanced audio outputs, auto-switching, and advanced control capability. The switcher supports 4K/UHD @ 60 Hz, 4:2:0; offers 3D pass-through, and 10.2 Gbps bandwidth. With front-panel buttons and IR control, it can be a standalone switcher. It transmits AV signals along with Ethernet, power, and control over a single cable to displays up to 328 feet (100 meters) from the switcher to PoE-powered HDBaseT receivers or HDBaseT displays. Control options include auto-switching, front-panel buttons, and compatibility with IR, RS-232, or TCP/IP-based control systems. Advanced features also include a web-based GUI for easy setup and management of EDID, HDCP, and display control. The switcher offers audio de-embedding of PCM audio over HDMI to either S/PDIF or two-channel analog audio outputs. The switcher is a cost-effective product for professional integration featuring a compact, 1U, half-rack width enclosure that is easily installed with the included 19" rack-mount brackets. Two units can be mounted side-by-side.

The AT-UHD-SW-52ED adds 4K/UHD performance and extended distance HDBaseT transmission to Atlona's HDMI small switcher family for a unique solution for professional integration applications. Internal HDBaseT and video distribution eliminate the need for additional system components while PoE eliminates the need for a power supply for the receiver. As an alternative, with an HDBaseT-capable display, an HDBaseT receiver isn't required, reducing system complexity and saving integrators time and money.

Configured and Managed by AMS

The AT-UHD-SW-52ED also supports the Atlona Management System (AMS), a powerful network software platform that integrates product configuration, management and updating. Specially designed for IP-controllable Atlona Products, the Atlona Management System reduces installation time and enables remote monitoring and support. To learn more please visit http://atlona.com/product/at-sw-ams.


  • Features

    • Mirrored, dual outputs on HDMI and HDBaseT
    • Supports dual display environments with local and extended distance to 328 foot (100 meter) displays
    • Eliminates cost associated with extra extension components; simplifies installation. HDMI output can be used with additional HDBaseT transmitter
    • 4K/UHD capability
    • Compatible with Ultra High Definition sources and displays
    • Supports high-resolution applications such as CAD, desktop publishing, and detailed financial reporting
    • Display control
    • Powers-up display when a source is connected or activated; Powers-down display when a source is disconnected or deactivated; Allows switcher's front panel volume controls to adjust display's audio levels
    • Reduces control systems costs by automating display control
    • Auto-switching
    • Reduces complexity or eliminates control system completely
    • Simplifies user operation
    • IR, RS-232, and Ethernet HDBaseT insertion
    • Adds internally-generated or externally-generated display control signals to the HDBaseT transmission
    • Simplifies display control from third-party control systems
    • EDID management
    • Manages EDID communications between source and display; allows integrators to force sources to preferred resolution
    • Ensures desired audio formats and video resolutions are provided to the AV system; eliminates the need for an EDID management device

  • Specifications

    • Resolution
    • Video: [email protected]/25/30/50*/60Hz*, [email protected]/25/30/50*/60Hz*, 2048x1080p, [email protected]/24/25/29.97/30/50/59.94/60Hz, [email protected]/59.94/60Hz, [email protected]/59.94/60Hz, 576p, 576i, 480p, 480i
    • VESA: 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800 1280x768, 1152x768, 1024x768, 800x600, 640x480
    • Colorspace: YUV, RGB
    • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
    • Color depth: 8-bit, 10-bit, 12-bit
    • Audio
    • HDMI IN/OUT: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+,Dolby TrueHD, DTS-HD Master Audio
    • S/PDIF: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+
    • L/R Audio: maximum analog output: balanced +5dBu @ 0dBfs, 2Ch PCM only
    • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • Distance
    • HDMI IN/OUT @ 4K up to 5 meters
    • HDMI IN/OUT @ 1080p up to 10 meters
    • Signal
    • Bandwidth 10.2 Gbps
    • CEC: Pass through
    • HDCP: Switchable - Compliant/Non compliant
    • Connector
    • Firmware: Mini-B USB
    • HDMI: Type A
    • LAN: RJ45 (8P8C), TCP/IP control
    • RS-232: 3-pin captive screw
    • Power: 2-pin, 5V captive screw
    • Temperature
    • Operating: 32°F to 122°F
    • Storage: -4°F to 140°F
    • Humidity: 20 to 90% non-condensing
    • Power
    • Consumption 7.5W
    • Idle Consumption 1.7W
    • Supply Input: AC100~240V 50/60Hz; Output: DC 5V/3.6A
    • Dimension
    • H x W x D 44 x 222.25 x 261 (mm) 1.73 x 8.75 x 10.28 (inch)
    • Rack Unit: 1/2 rack, 1RU
    • Weight
    • Unit: 1.44lbs
    • Certification
    • Power Supply: CE, FCC, cULus, RCM
    • Unit: CE, FCC

  • Warranty

    • 10 Years
