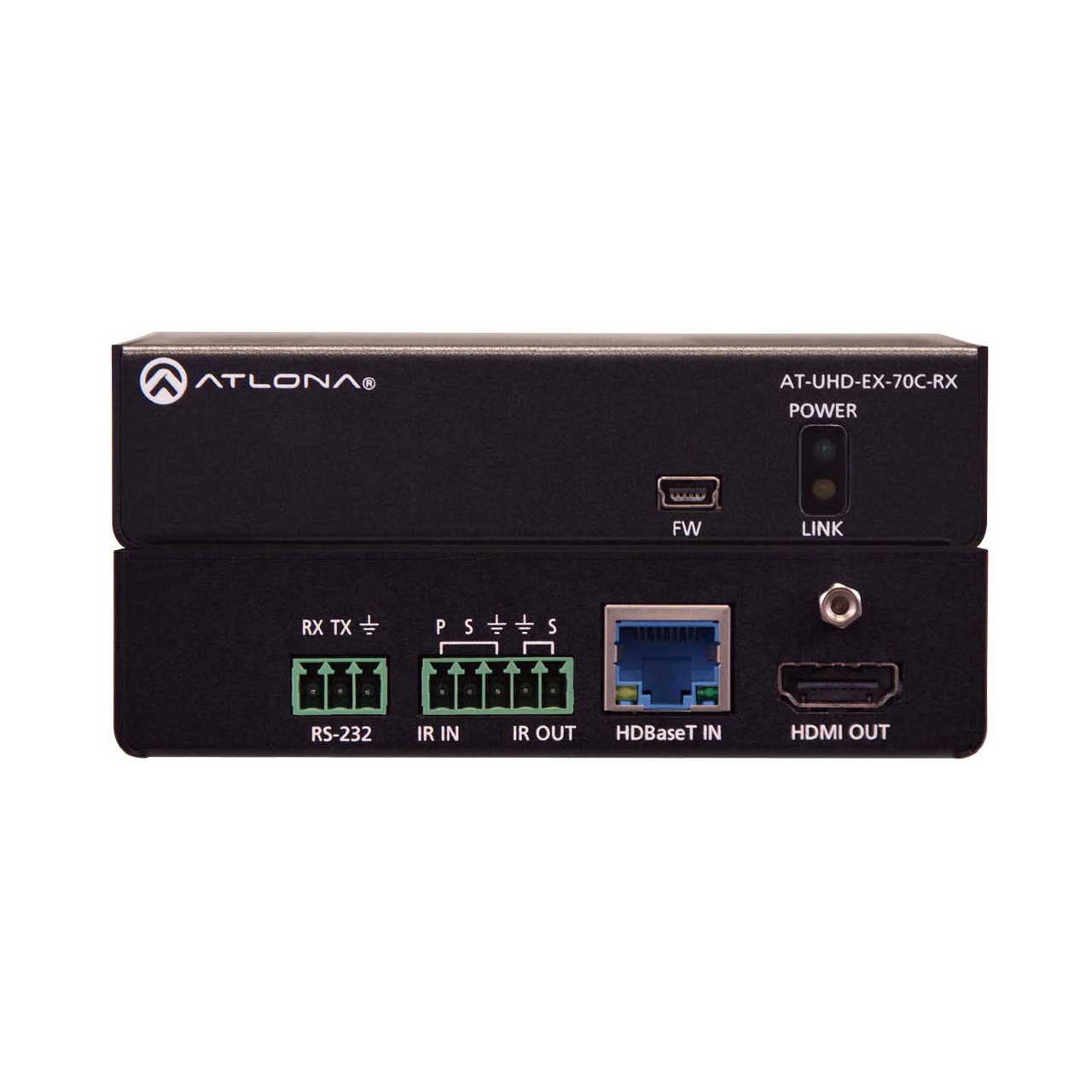

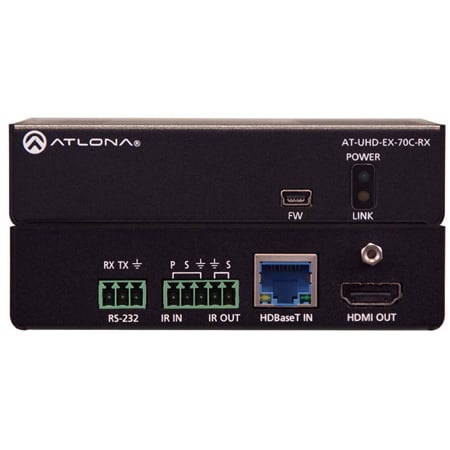

Atlona AT-UHD-EX-70C-RX 4K/UHD HDMI Over HDBaseT Receiver with Control and PoE

ITEM #: ATNO-UHDEX70CRX MFG #: AT-UHD-EX-70C-RX

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$369.00

Availability: In Stock
iAvailability Description Popup


    AT-UHD-EX-70C-RX - Overview

    The Atlona AT-UHD-EX-70C-RX is an HDBaseT receiver for AV signals up to 230 feet (70 meters) over category cable with RS-232 and IR control plus Power over Ethernet capability. It is compatible with video signals up to 4K/UHD @ 60Hz with embedded multi-channel audio and remote 48V Power over Ethernet. The AT-UHD-EX-70C-RX is HDCP 2.2 compliant and supports EDID communication. The receiver features a quarter rack width metal enclosure for easy installation with rear panel I/O ports for uncluttered wire management. Use with an optional AT-IR-CS-RX IR receiver cable to capture IR remote commands for AV system control.

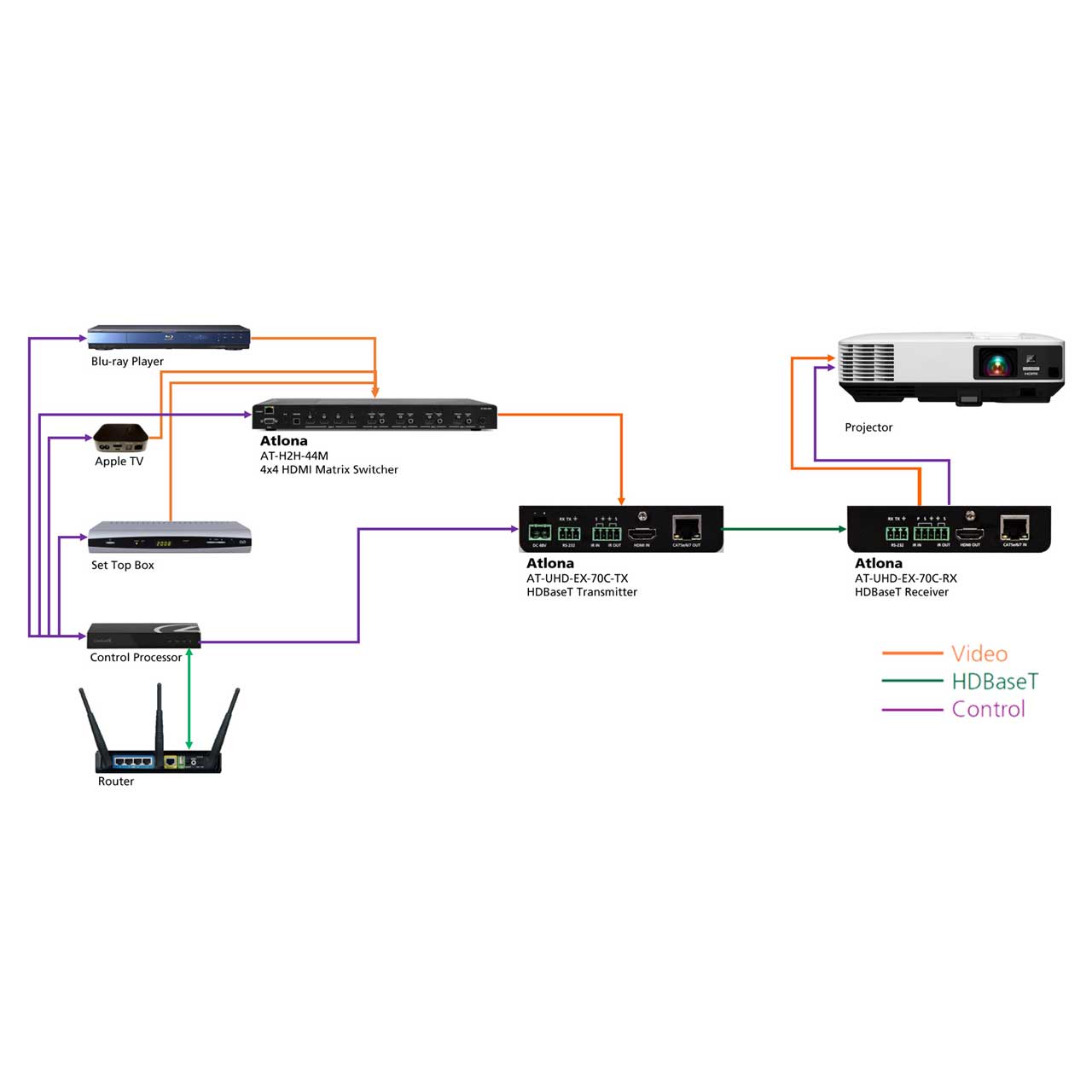

    This receiver is used in commercial and applications that call for an HDBaseT receiver with a compact form factor that allows for simple mounting behind displays and at projectors. These applications will not require an AC outlet for the receiver, since the receiver is powered by an Atlona switching product. This receiver will also be used to simplify control of the AV system by working with 12 volt-based IR receivers as well as passing through RS-232 commands.

    • Features:

      • 4K/UHD capability
      • Compatible with Ultra High Definition sources and displays
      • Future proofs AV systems in preparation for technology improvements, 4K/UHD streaming services and playback devices

        HDCP 2.2 compliant
      • Adheres to latest specification for High-bandwidth Content Protection
      • Allows protected content stream to pass between devices

        Remote-powered receiver
      • Industry standard IEEE 802.3af PoE for receiver is supplied by transmitter over HDBaseT
      • Saves time and integration costs

        Bidirectional extension of both RS-232 and IR control commands
      • Control signals travel over HDBaseT link for maximum control system flexibility
      • Eliminates multiple cable runs between source, control system, and display

        Long distance HDMI extension
      • Receives HDMI signals up to 230 ft (70m) @ 1080P and 130 ft (40m) @ 4K/UHD using CAT6a/7 cable
      • Uses easy-to-integrate category cable for low-cost, reliable system installation

        Flexible Bidirectional IR control capabilities
      • IR Input designed to work with 12V IR receivers for source control
      • Saves control systems costs

        Rear panel I/O connectors
      • Placement of ports on rear panel simplifies wire management
      • Saves installation time and eliminates clutter

        Multi-channel audio compliant
      • Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, and DTS-HD Master Audio
      • Allows any multi-channel audio stream to be used within a professional audio system

        Field updatable firmware
      • Front panel USB port provides an easy means for kit upgrades
      • Ensures long term system return on investment

        Front panel Power and Link status LEDs
      • LED indicators provide power and HDBaseT link status information
      • Provides easy setup and troubleshooting

        Low-profile, 1 inch (25 mm) high quarter rack-width enclosure
      • Easy installation into confined spaces behind displays and above projectors
      • Keeps devices out-of-sight when placed in public spaces

    • Specifications:

      • Resolution
      • Video 4096x2160@24/25/30/50*/60Hz*, 3840x2160@24/25/30/50*/60Hz*, 2048x1080p,
      • [email protected]/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
      • VESA 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800 1280x768, 1152x768, 1024x768, 800x600, 640x480
      • Colorspace YCbCr, RGB
      • Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
      • Color depth 8-bit, 10-bit, 12-bit

        Audio
      • Formats PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos
      • Sample Rate 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
      • Bit Rate up to 24-bit

        Distance (per port)
      • CAT5e/6 @ 4K up to 35 meters up to 115 feet
      • CAT6a/7 @ 4K up to 40 meters up to 130 feet
      • CAT5e/6 @ 1080p up to 60 meters up to 197 feet
      • CAT6a/7 @ 1080p up to 70 meters up to 230 feet
      • HDMI IN/OUT @ 4K up to 5 meters up to 15 feet
      • HDMI IN/OUT @ 1080p up to 10 meters up to 30 feet

        Signal
      • Bandwidth 10.2 Gbps
      • CEC Pass through
      • HDCP Supports up to 2.2

        Connector
      • Firmware Mini-B USB
      • HDBaseT RJ45 (8P8C)
      • HDMI Type A
      • IR 5-pin captive screw
      • RS-232 3-pin captive screw
      • Power PoE (Power over Ethernet) from TX

    • Item Includes:

      • User guide
      • Mounting brackets
      • IR emitter P/N AT-IR-CS-TX

    • Warranty:

      • 10 Years

    • GTIN:

      0846352004507
