Audio-Technica ATW-1101/H92 System 10 Digital Wireless PRO 92cW Headworn System

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Audio-Technica ATW-1101/H92 System 10 Digital Wireless PRO 92cW Headworn System

    Manufacturer: Audio-Technica

    Item #: ATW-1101-H92   •   MFG #: ATW-1101-H92








    Colors:





    Share!

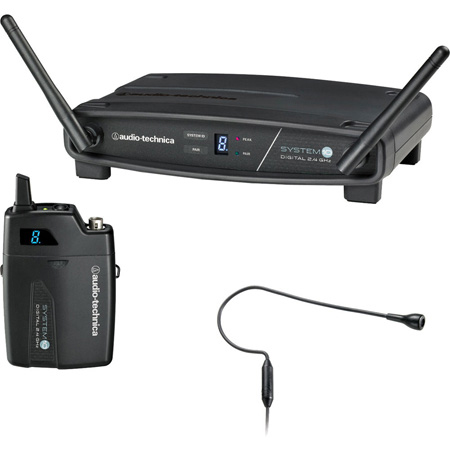

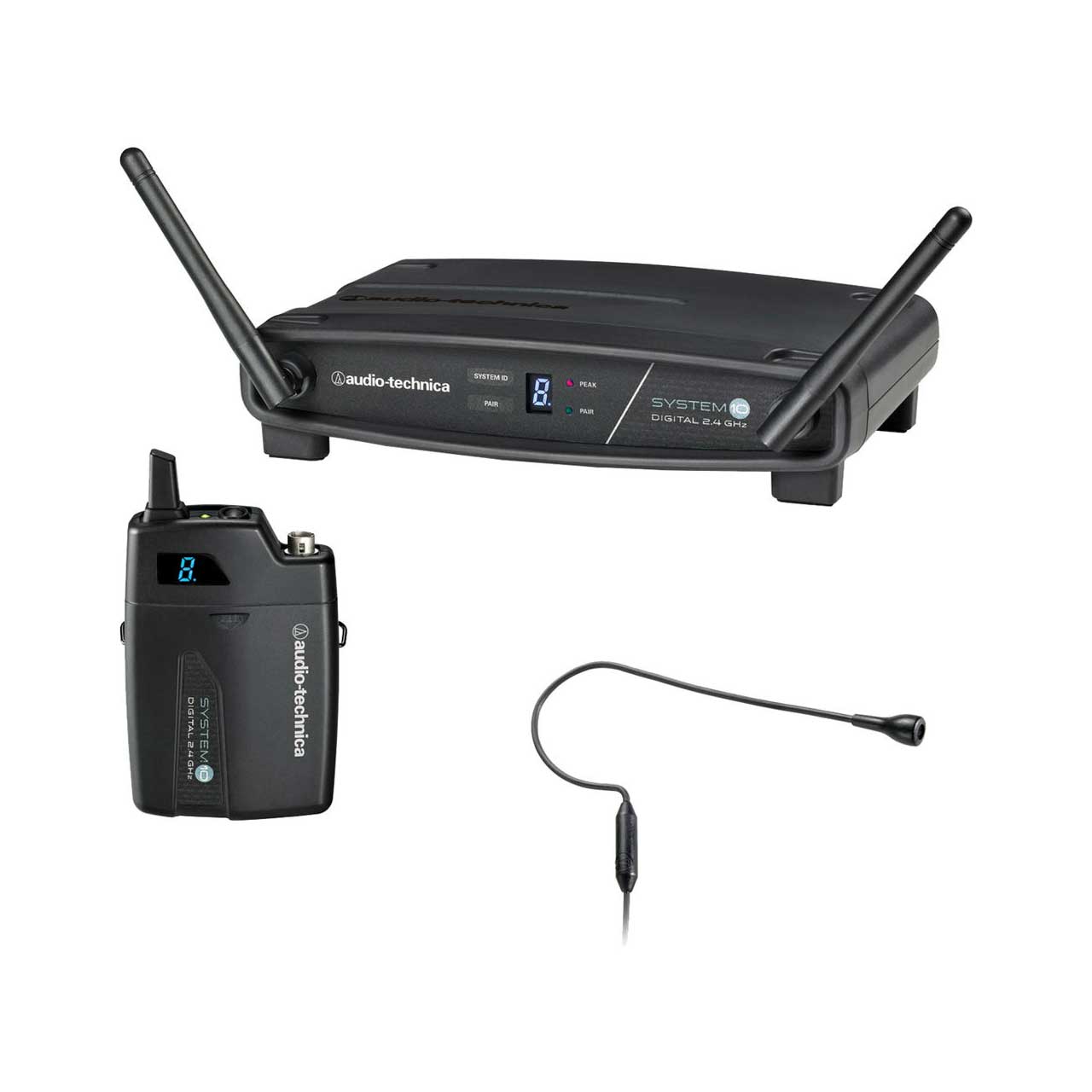

    The Audio Technica ATW-1101/H92 consists of an ATW-R1100 receiver and a ATW-T1001 UniPak transmitter with a PRO 92cW headworn microphone.

    Audio-Technica’s System 10 is a digital high-fidelity wireless system designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, System 10 offers extremely easy operation and instantaneous channel selection. Up to eight channels may be used together without any frequency coordination problems or group selection issues. System 10 receivers and transmitters offer an easy-to-read digital ID display.

    System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity.

    Featuring stackable, contemporary styling, System 10 is available in multiple system configurations, with handheld vocal microphone/transmitters and UniPak body-pack transmitters designed for use with lavalier, headworn and instrument microphones as well as electric guitars. Each configuration includes the ATW-R1100 receiver and either a body-pack transmitter or handheld microphone/ transmitter. The ATW-R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights.

    Please note: There are several models in this series. They are as follows......

    ATW-1101
    ATW-R1100 receiver and ATW-T1001 UniPak transmitter. Select a Wireless Essentials microphone or cable to complete the system.

    ATW-1101/G
    ATW-R1100 receiver and ATW-T1001 UniPak transmitter with AT-GcW guitar/instrument input cable.

    ATW-1101/H
    ATW-R1100 receiver and ATW-T1001 UniPak transmitter with PRO 8HEcW headworn microphone.

    ATW-1101/H92
    ATW-R1100 receiver and ATW-T1001 UniPak transmitter with PRO 92cW headworn microphone. (listed here)


    ATW-1101/H92-TH
    ATW-R1100 receiver and ATW-T1001 UniPak transmitter with PRO 92cW-TH headworn microphone (beige).

    ATW-1101/L
    ATW-R1100 receiver and ATW-T1001 UniPak transmitter with MT830cW omnidirectional lavalier microphone.

    ATW-1102
    ATW-R1100 receiver and ATW-T1002 handheld dynamic unidirectional microphone/transmitter. Includes AT8456a Quiet-Flex stand clamp.


    • Features

      • Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
      • 2.4 GHz range – completely free from TV interference
      • Three levels of diversity assurance: frequency, time, & space
      • Automatic frequency selection for seamless, interference-free operation
      • Extremely easy operation with instantaneous channel selection, sync, and set-up
      • State-of-the-art digital receiver for reliable performance
      • Balanced XLR and unbalanced 1/4” output jacks with level control

    • Specifications

      • OVERALL SYSTEM SPECIFICATIONS:
      • Operating Frequencies 2.4 GHz ISM band.
      • Dynamic Range >109 dB (A-weighted), typical.
      • Total Harmonic Distortion <0.05% typical.
      • Operating Range 30 m (100') typical.
      • Open range environment with no interfering signals.
      • Operating Temperature Range 0° C to +40° C (32° F to 104° F),Battery performance may be reduced at very low temperatures.
      • Frequency Response 20 Hz to 20 kHz Depending on microphone type.

      • RECEIVER SPECIFICATIONS:
      • Receiving System Diversity (frequency/time/space)
      • Maximum Output Level XLR, balanced: 0 dBV, 1/4" (6.3 mm), unbalanced: +6 dBV.
      • Power Supply 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply.
      • Dimensions 190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D .
      • Net Weight 290 grams (10.2 oz).
      • Accessory Included Power supply.

      • BODY-PACK TRANSMITTER SPECIFICATIONS:
      • RF Power Output 10 mW.
      • Spurious Emissions Following federal and national regulations.
      • Input Connections Four-pin Locking Connector, Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V.
      • Batteries Two 1.5V AA not included.
      • Battery Life >7 hours (alkaline) Depending on battery type and use pattern.
      • Dimensions 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D.
      • Net Weight 100 grams (3.5 oz) without batteries.
