Aviom Aviom16/o-Y1 A-Net Output Card for Yamaha Digital Products

ITEM #: AVIOM16O-Y1 MFG #: AVIOM16/O-Y1

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$976.00

Our Price:

$899.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    AVIOM16/O-Y1 - Overview

    The Aviom16/o-Y1 A-Net Card eliminates the need for an analog input module when creating a monitor mixing or audio distribution system, providing a direct digital interface between Yamaha digital products and Aviom's Pro16r Series, including the A-16II and A-16R Personal Mixers, A-Net distributors, and output modules.

    Yamaha Product Compatibility
    The Y1 card fits into any available MY expansion slot and is compatible with all Yamaha consoles and mix engines that support the Mini-YGDAI format, including:

    Model: MY Slots
    AW4416: 2
    AW2816: 1
    PM1D (DIO8) *: 8
    DM2000: 6
    02R96: 4
    DM1000: 2
    01V96: 1
    DME24N: 1
    DME64N: 4
    PM5D/PM5D-RH: 4
    M7CL: 3
    AW2400: 1
    LS9-16: 1
    LS9-32: 2
    * The PM1D operates in 8-channel mode (MY8) only

    Configuration and Setup
    Configuration of the 16 input sources for an Aviom monitoring system can be done digitally from the Yamaha console's user interface. This gives the console operator the option of routing any combination of channels, direct outputs, aux sends, groups, or sub-mixes from the console to the Y1 card as needed.

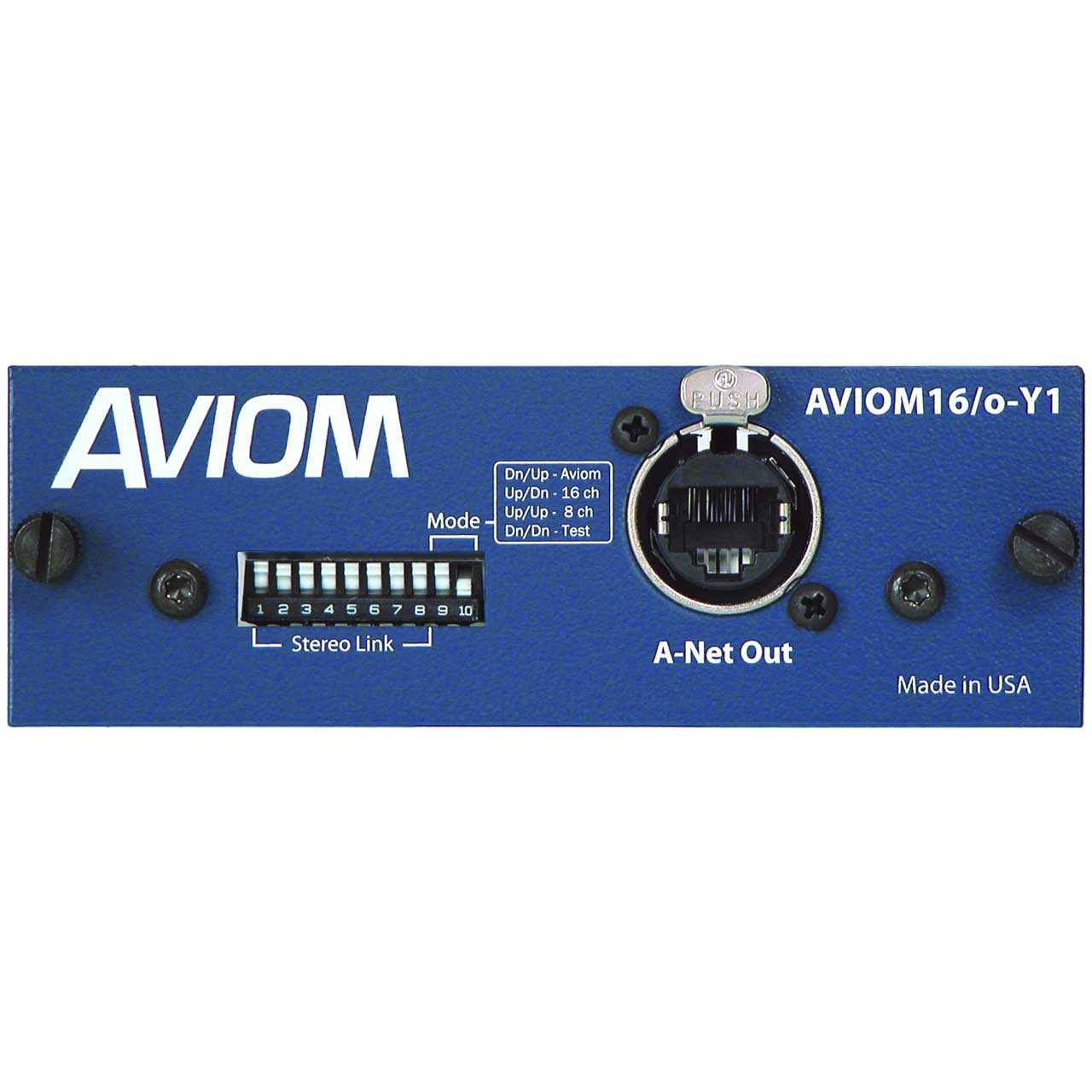

    DIP switches are provided on the face of the Y1 card for stereo link configuration of each channel pair. MY8 and MY16 mode switches on the Y1 allow the A-Net card to be used with Yamaha digital mixers that support only 8-channel expansion cards, such as the PM1D.

    The Y1 card is also compatible with AV-P2 and AN-16/o Output Modules and the A-16D and A-16D Pro A-Net Distributors. As with all Pro16 Series products, Cat-5e cable lengths of up to 500 feet (150 meters) are possible between devices.

    ** Note: The original A-16 Personal Mixer (discontinued) is not compatible with the Y1 A-Net card. Some early A-16R Personal Mixers built prior to the release of the Y1 card are also not compatible.

    • Features:

      • Mini-YGDAI (MY) format, supported by most Yamaha digital consoles
      • One 16-channel A-Net output
      • Supports sample rates from 44.1kHz to 48kHz, +/-10%
      • Assign audio outputs directly from Yamaha interface
      • Channel Link DIP switches for stereo operation

    • Specifications:

      • A-Net Pro16 Output: 16 channels of A-Net digital data;
      • * 8 channels on PM1D
      • Interface Format: Yamaha mini-YGDAI (MY) Expansion Card
      • Maximum Expansion: Limited only by the number of available MY expansion slots in the digital mixer
      • Sample Rate: 44.1kHz to 48kHz, +/-10%
      • Digital Conversion: 24-bit
      • A-Net Output: A-Net Out: 1; EtherConr RJ45 connector
      • DIP Switch:
      • Switch 1-8: Stereo Link on/off
      • Switch 9-10: A-Net mode
      • A-Net Modes: 8-channel, 16-channel, Aviom, Test
      • A-Net Pro16: A-Net allows 16 channels of audio to be transmitted over one Cat-5e cable use unshielded Cat-5e UTP (or better) cable; max. length 500 feet (150m) between devices
      • Latency: <0.880 msec (measured from analog input to analog output)
      • Power Supply: none required; uses Yamaha host device as source of power
      • Dimensions: 4.75" (120.7 mm) wide x 6.25" (158.8 mm) deep; 1.5" (38.1 mm) high
      • Weight: 0.8 lbs (0.36 kg)
      • Options: AN-16SBR System Bridge; used to combine up to four A-Net streams for transmission over one Cat-5e cable
