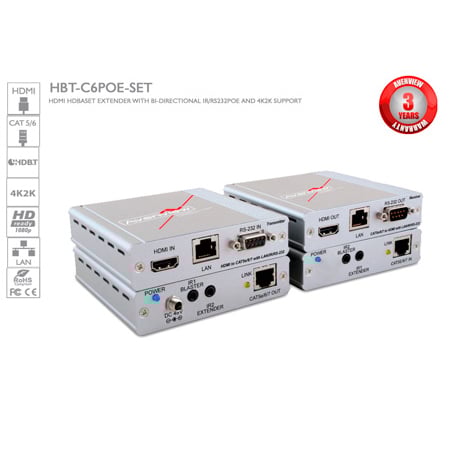

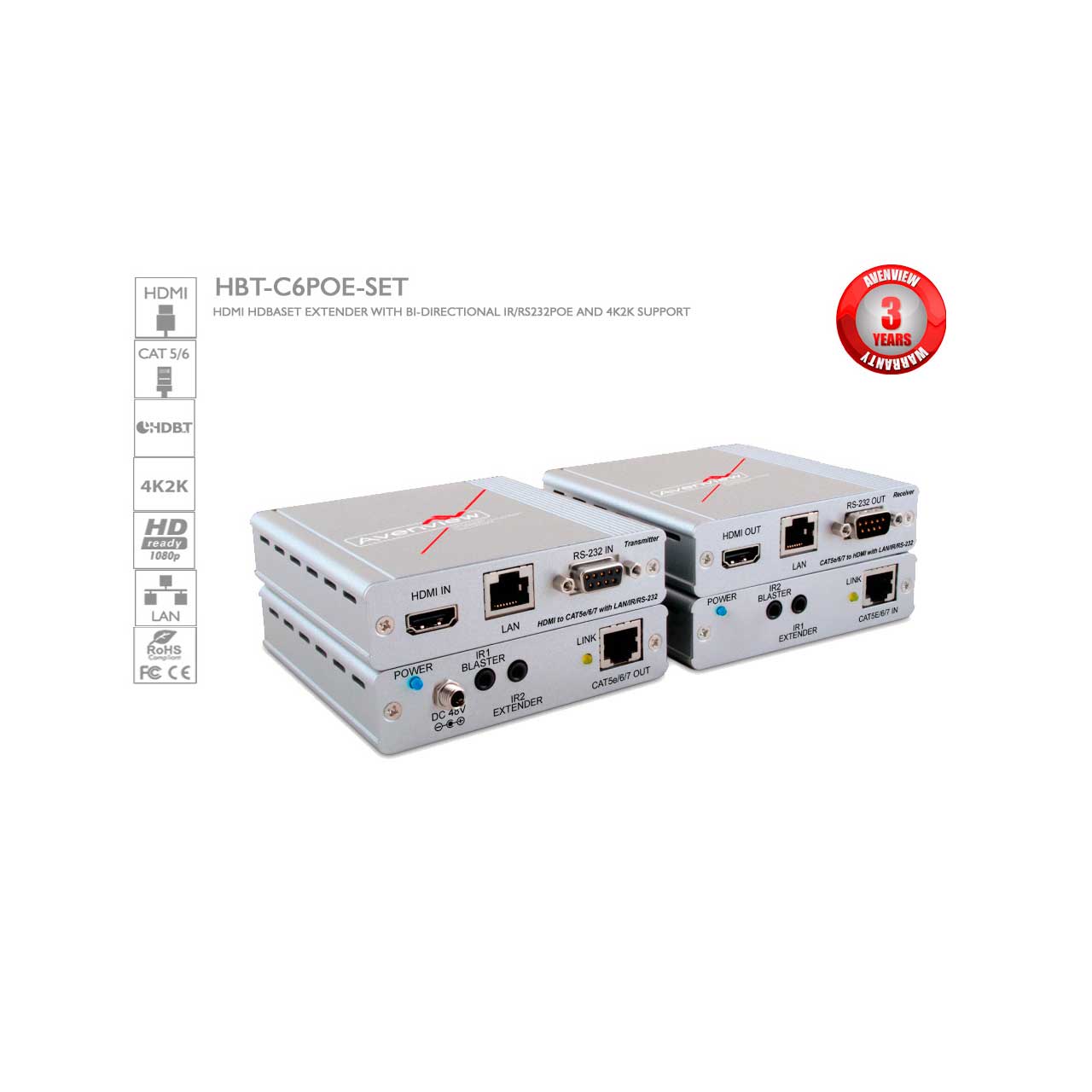

Avenview HBT-C6POE-SET HDMI/IR/RS-232/PoE over SingleCAT5e/6/7 Extender Set with Ethernet - UP TO 100M
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Avenview HBT-C6POE-SET HDMI/IR/RS-232/PoE over SingleCAT5e/6/7 Extender Set with Ethernet - UP TO 100M

    Manufacturer: Avenview Corp

    Item #: AVW-HBTC6POESET   •   MFG #: HBT-C6POE-SET


    Our Price:$549.00

    free ship
    Availability: Direct Ship From Manufacturer
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



    The Avenview HBT-C6POE-SET HDBaseT Extender set CAT5/6/7 with POE, Bi-Directional IR, RS232 and Ethernet has been designed to extend High Definition video and multi-channel digital audio formats to any HD Monitor.

    Video Signals: [email protected] (Ultra HD), 3D, 8/10/12 Deep Color, and Full HD [email protected] Hz/36-bit color depth.
    Audio signals: Lossless Multi-channel audio formats (DTS-HD Master Audio, Dolby TrueHD).
    Data Signals: Bi-Directional IR signals 30 KHz to 50 KHz over CAT5/6.

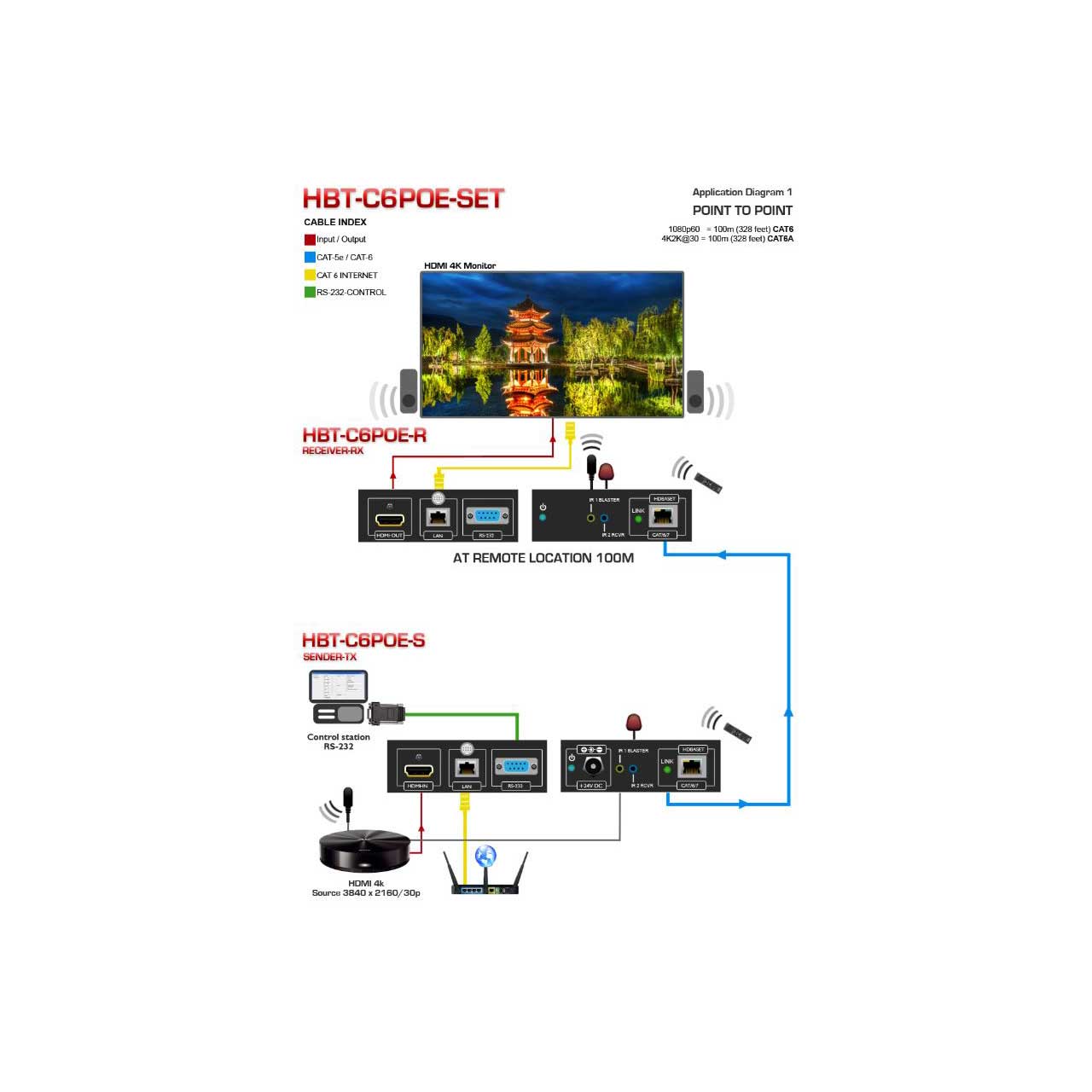

    The HBT-C6POE-SET includes two (2) units: Sending unit (TX) HBT-C6POE-S and Receiving unit (RX) HBT-C6POE-R with one (1) UTP output port which allows the user to extend video and audio up to 100m (330ft). The HBT-C6POE-SET also allows bi- directional IR control of the source connected to the unit from the users IR remote control at the monitor side.
    The bonus features with this device it can be powered by the 24V from the TX PoE (Power over the CATx cable to the RX) also Internet (100Mbps Ethernet service when connected to a Router). These features has been added to this unit to give the installer and user a complete solution with the new trends in online streaming, network connected devices and new demand in Smart TV, Ultra HD monitors and content.

    • Features

      • Input-HDMI with 3D, 4k x 2k support, HDCP & DVI Compliant;
      • Video Bandwidth- 300Mhz/9Gbps;
      • Transmission: HDCP repeater and CEC bypass supported;
      • Video Supported - uncompressed video of 36/30/24-bit Deep Color up to [email protected];
      • Audio supported - up to LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio;
      • Distance supported - 100M/328ft with CAT6 or CAT5e cable;
      • 4Play convergence - HDMI, PoE & Control (IR & RS-232);
      • Wall plate design and simple installation;
      • 2 Gang wall plate size

      • NOTE:
      • The PoE function is designed for powering compatible Transmitters units only.
      • Transmitters (Tx) from different manufactures would not be compatible.
      • Displaying HDMI 4Kx2K resolution would require the standard 4Kx2K HDMI cable and display for accurate results.
    • Item Includes

      • HBT-C6POE-S
      • HBT-C6POE-R
      • Power Adapter 24V 1.25A DC
      • IR Receiver x 1
      • IR Blaster x 1
      • User Guide
