Avenview HDM-SWITCHPRO-VW4 4X4 HDMI Matrix Switcher w/Videowall Function & Audio
  • Avenview HDM-SWITCHPRO-VW4 4X4 HDMI Matrix Switcher w/Videowall Function & Audio
  • Avenview HDM-SWITCHPRO-VW4 4X4 HDMI Matrix Switcher w/Videowall Function & Audio
  • Avenview HDM-SWITCHPRO-VW4 4X4 HDMI Matrix Switcher w/Videowall Function & Audio

Questions? Ask a Markertek Expert:
800-522-2025 Email

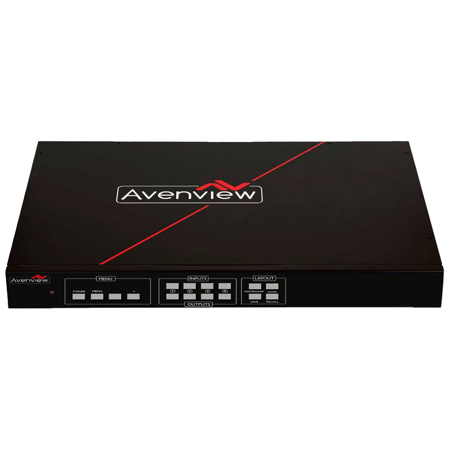

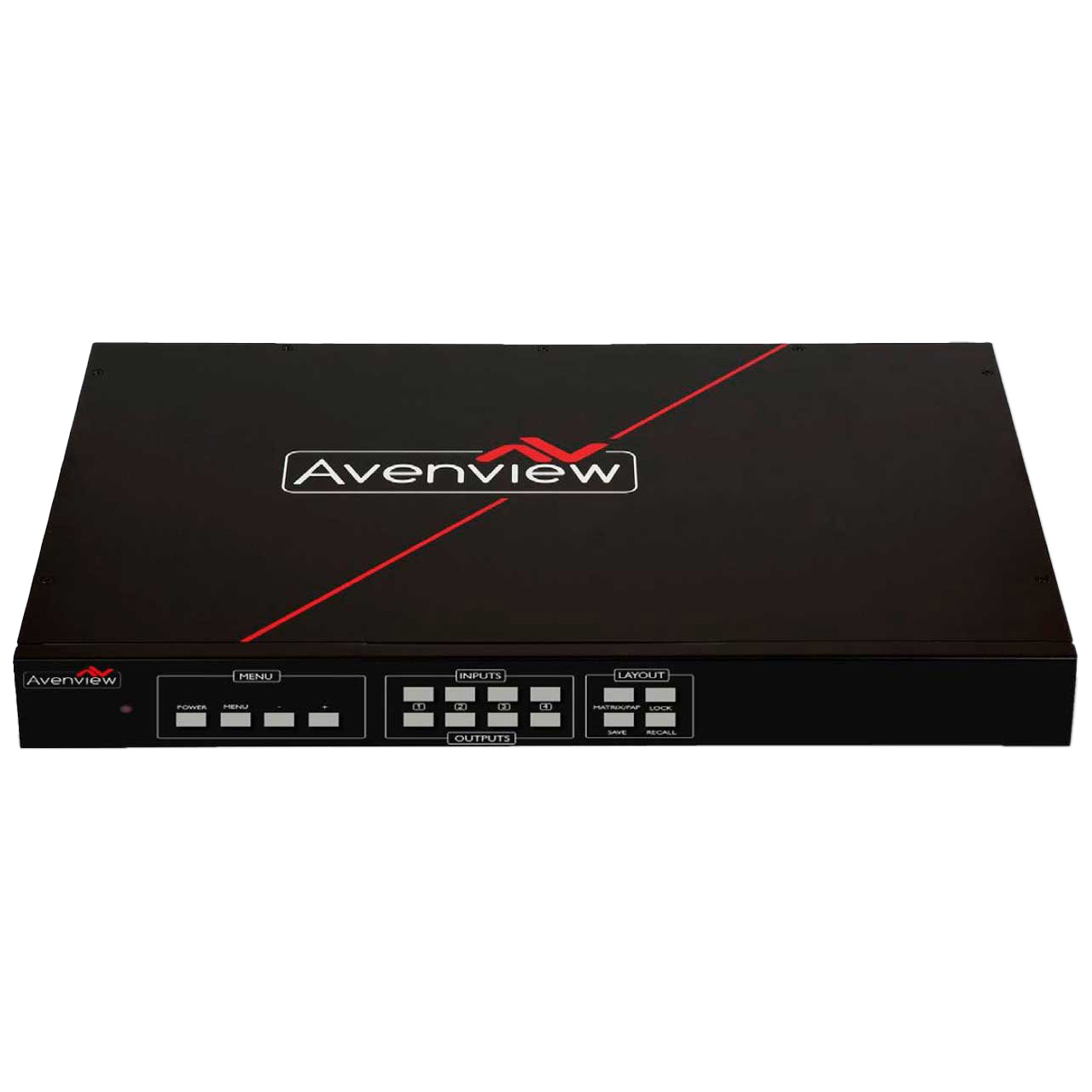

Avenview HDM-SWITCHPRO-VW4 4X4 HDMI Matrix Switcher w/Videowall Function & Audio

Manufacturer: Avenview Corp

Item #: AVW-SWITCHPROVW4   •   MFG #: HDM-SWITCHPRO-VW4




Our Price:$2,999.00

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • Special Order Item: non-cancelable, non-returnable, non-refundable.
  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





The Avenview HDM-SWITCHPRO-VW4 is a unique powerful processor, developed especially for our installers and clients needs.

This small form factor HDMI device can perform many functions such as;

4x4 Matrix switcher - This device can input 4 HDMI digital sources and then distribute the video and audio signal to any 4 HDMI HD Monitors. Supported video timings up to [email protected] Full HD and WUXGA Wide 1920x1200 audio formats up to 7.1CH LPCM AT 192Hz. This device can be configured using the IR Remote, Telnet, Rs232 or Front Panel buttons to set the desired 1-4 output sources.

Multi Input Splitter - This device can input 4 HDMI digital sources and then duplicate one source at once to the connected 4 HDMI HD Monitors. . This device can be configured using the IR Remote, Telnet, Rs232 or Front Panel buttons to set the desired output source.

Dual-Viewer - This device can input 4 HDMI digital sources and then combine, (4) four video signals onto two HD Monitors at Full HD 1080p. This device can be configured using the IR Remote, Telnet, Rs232 or Front Panel buttons to set the desired PAP (Picture Aside Picture).

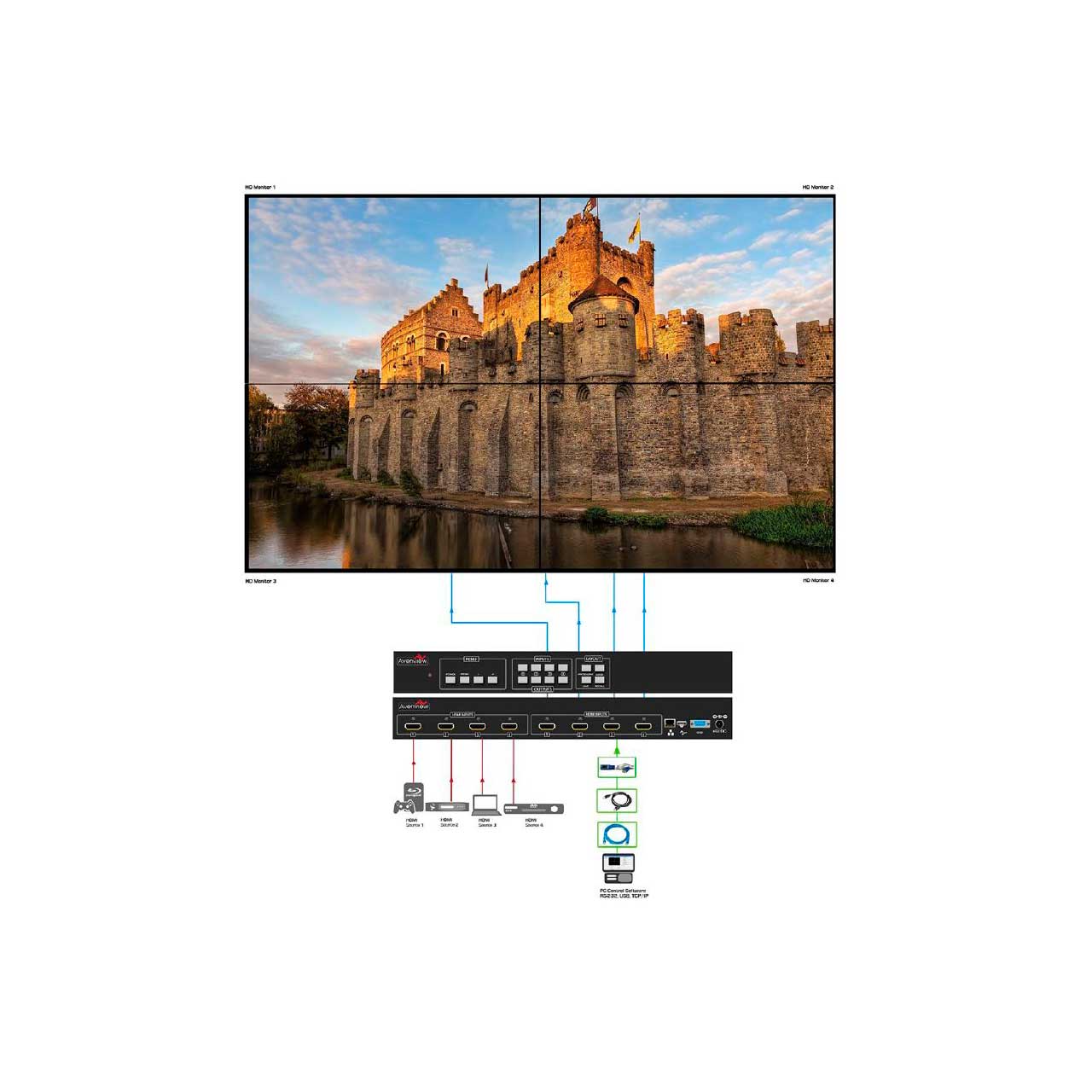

Videowall 2x2 - This device can input 4 HDMI digital sources and scale (1) one Input across the (4) four HD monitors in a 2x2 configuration at Full HD 1080p. This device can be configured using the IR Remote, Telnet, Rs232 or Front Panel buttons to set the desired video across the (4) four HD Monitors with Bezel Correction to align the image seamlessly.


  • Features

    • Input resolution settings from PC -VGA, XGA (1024 x 768), SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200)
    • Input from Digital Player- 480p up to Full HD 1080p (1920 x 1080);
    • Output Resolutions from 480p to 1080p Deep Color 8/10/12 bit source;
    • Audio Supports LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/Dolby TruHD & DTS-HD;
    • Fine tuning and adjustments of contrast, brightness, Saturation and hue;
    • Preset up to 4 favorite layout options;
    • Auto EDID detect from the source;
    • Bezel Correction support for 2x2 Videowall Mode;
    • USB for Service Mode and Firmware upgrade;
    • Connection by IR Remote, Telnet or Rs232 for user setup and configuration;
    • HDMI, HDCP and DVI Compliant;
    • Factory Reset;
    • Software control through USB, RS-232 and Ethernet;
    • Firmware upgradable for support of new features and technology enhancements
    • 1U size

  • Specifications

    • HDCP COMPLIANCE Yes
    • VIDEO BANDWIDTH 225 MHz (6.75Gbps)
    • SUPPORTED RESOLUTIONS
    • PC -VGA, XGA (1024 x 768), SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200)
    • 480i/720p/1080i/1080p
    • AUDIO SUPPORT LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/Dolby TruHD & DTS-HD

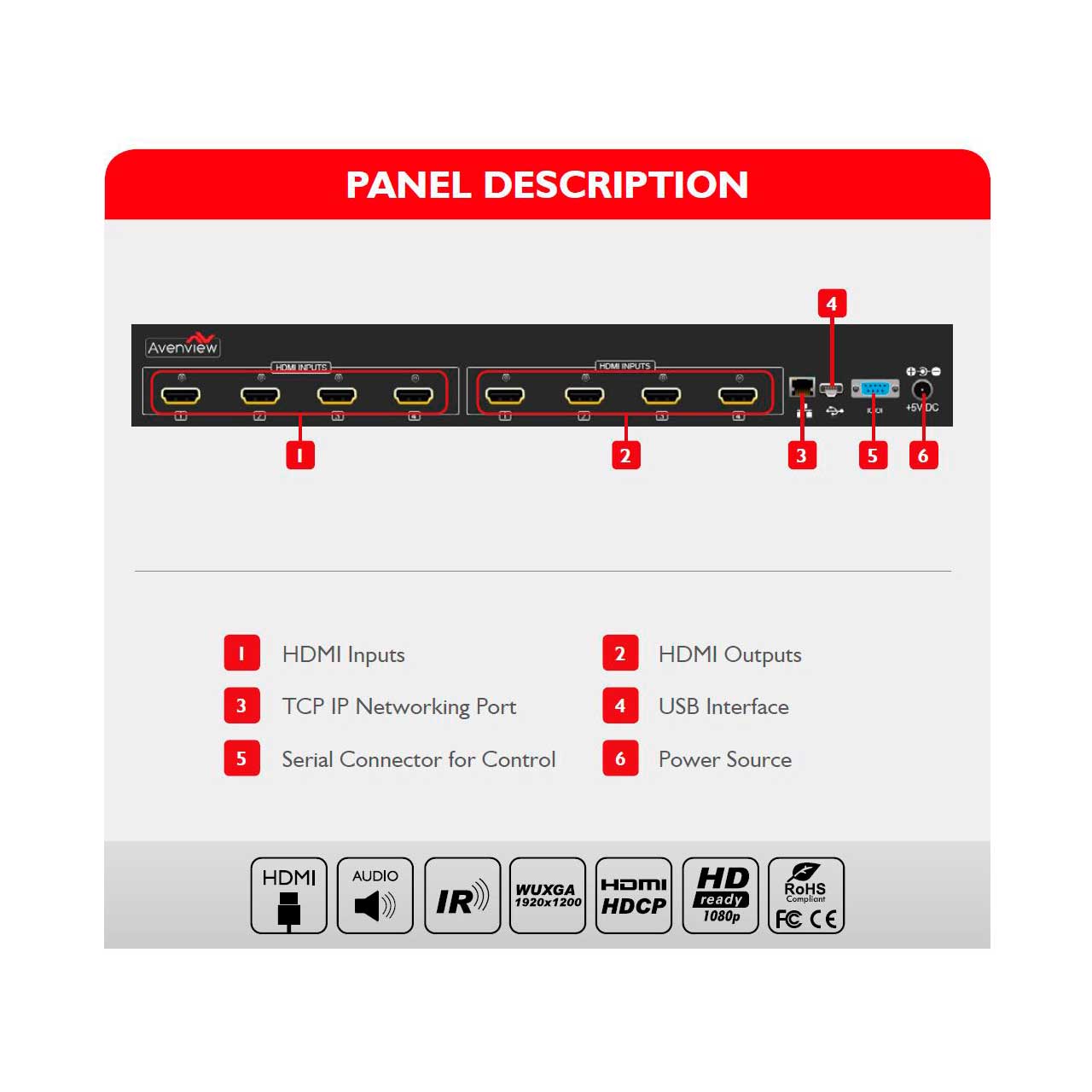

    • INPUT
    • 4 x HDMI19 Pin Female type connector
    • 1 x RJ45/RS-232 1xMini USB service only
    • OUTPUT 4 x HDMI 19 Pin Female type connector
    • USB CONNECTOR Type A Mini USB
    • RJ45 CONNECTOR WE/SS 8P8C with 2 LED indicators
    • SWITCHING SPEED
    • ±8 kV (air-gap discharge)
    • ±4 kV (contact discharge)
    • DIMENSIONS (L X W X H) 17.24" x 7" x 1.7"
    • POWER SUPPLY 12V/3A DC (US/EU standards, CE/FCC/UL certified)

  • Item Includes

    • 1 x HDM-SWITCHPRO-VW4
    • 2 x Rackmounting Ear
    • 1 x Power Cord
    • 1 x User's Manual
    • 1 x IR Remote Control
