Azden FMX-32A Portable Mixer

ITEM #: AZ-FMX-32A MFG #: FMX-32A

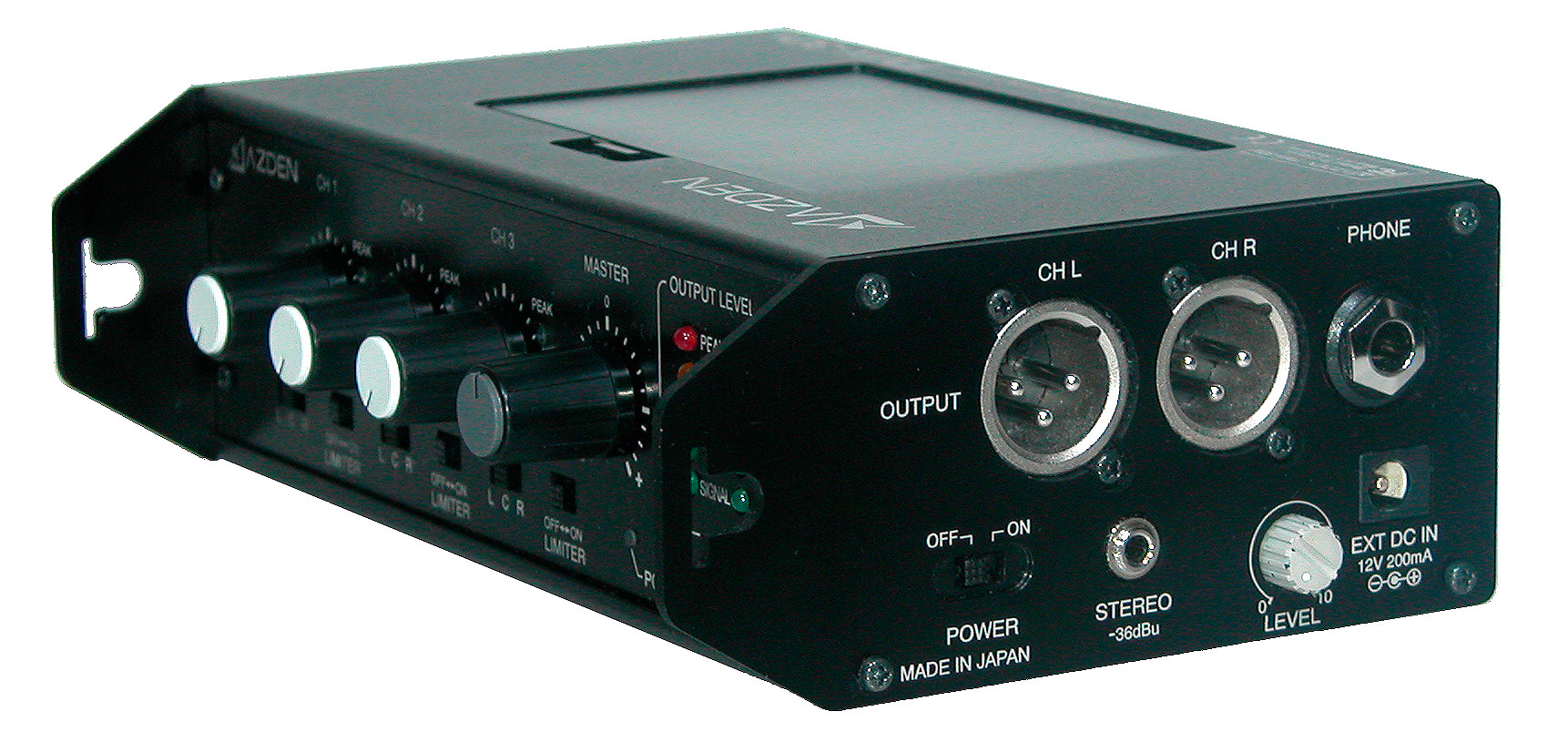

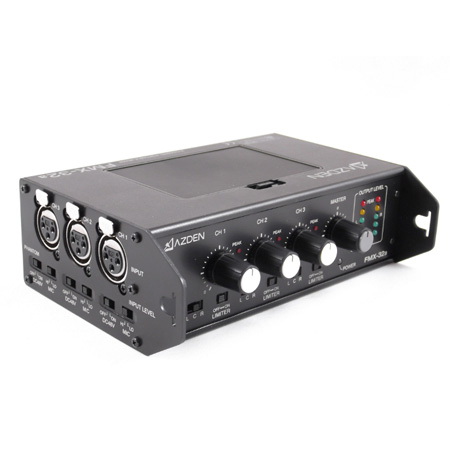

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AZ-FMX-32A

FMX-32A - Overview

New and improved, the FMX-32a now uses the same circuit topology as the more expensive FMX-42 series mixers. With improved signal to noise ratio and wider frequency response the new FMX-32a is designed for the demanding needs of Professional Videographers. The small, all metal, battery operated (6-"AA") mixer can be attached directly to the camera with supplied hook-and-loop fastener or neck worn with the optional FMX-32c carrying case. The FMX-32a has the following features: 3 XLR microphone inputs each with 2 input settings, 3 input level controls, master level control, switchable phantom power and limiters for each input, channel-addressable (L-C-R) Stereo XLR and mini outputs, 5-step LED array for easy signal monitoring, 12V DC input for external power (optional BC-27 power supply), and a 1/4? monitor headphone jack with level control.

  • Specifications:

    • Frequency Response
    • Main and Unbalanced Output: 20-20,000Hz (+0/-.5dB)
    • Monitor Output: 50-17,000Hz (-3dB)
    • Noise Level:
    • Left & Right Channel:-120dBu (A weighted, Input Equivalent Level)
    • T.H.D.: less than 0.005% @ 1KHz (+10dBu output)
    • MIC Input Level
    • LO -20 dBu Gain -6Db
    • HI -3dBu Gain +45Db
    • Monitor Output
    • 3.5mm Stereo: -4dBu (32 ohm load)
    • (Recommended load 16-100 ohms)
    • Maximum Output Level
    • Balanced Output: +20dBu (5K ohms)
    • Unbalanced Output (3.5mm) -19dBu (2K ohms)
    • Battery Type/Duration:
    • 6 - AA Alkaline - 15 hours
    • Current Drain:
    • 47mA nominal (Phantom Power Off)
    • 100mA maximum (Phantom Power On)
    • Phantom Power
    • Voltage: 48VDC (+/- 4VDC)
    • Dimensions:
    • Size: 53.5H x 170W x 120D mm (2.19 x 6.93 x 4.75 inches)
    • Weight w/o Battery: 26.45 ounces (750 grams)

  • GTIN:

    0095528070079
