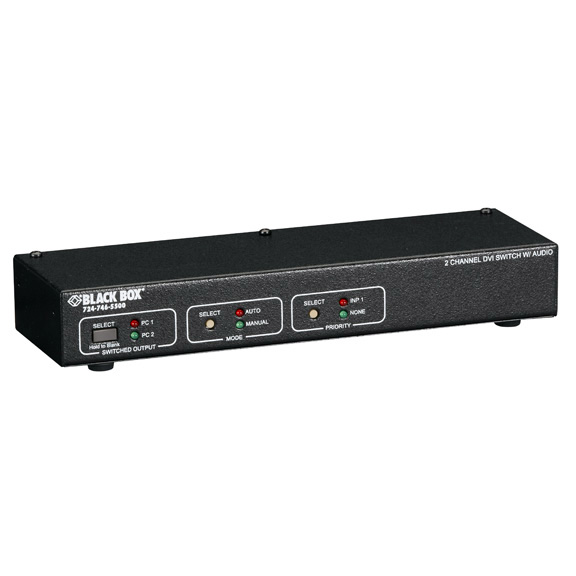

Black Box AC1032A-2A DVI Switch with Audio and Serial Control 2-Channel
  • Black Box AC1032A-2A DVI Switch with Audio and Serial Control 2-Channel
  • Black Box AC1032A-2A DVI Switch with Audio and Serial Control 2-Channel

Questions? Ask a Markertek Expert:
800-522-2025 Email

Black Box AC1032A-2A DVI Switch with Audio and Serial Control 2-Channel

Manufacturer: Black Box

Item #: BBX-AC1032A-2A   •   MFG #: AC1032A-2A



List Price:$304.00
Our Price:$298.19

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




    Share!





    DVI Switch with Audio and Serial Control, 2-Channel. Ideal for controlling presentations that require high-quality audio, these HDCP-compliant switches give you the option of switching between two or four single-link DVI video channels from a serial console.

    NOTE: Even though the switch physically has DVI-I ports, it will only support digital video signals.

    This product works with DVI Cable


    • Features

      • Switch video and audio from multiple DVI-D-equipped devices like PCs to a common DVI-D display.
      • HDCP compliant. Use to switch among HDCP inputs
      • Resolutions up to 1600 x 1280 on PCs and 1080p on HDTVs.
      • Supports digital video only.
      • Line-level audio inputs transmit clear stereo sound on each channel.
      • Support cabling up to to 65 feet (19.8 m) on the inputs and drive DVI signals as far as 50 feet (15.2 m).
      • Offer convenient remote switching and status monitoring through an RS-232 serial connection.
      • Or you can switch manually on the front panel, or set them up to switch automatically based on input detection.
      • Recall previous settings upon power-up.
      • Compact with a rugged, fully shielded metal enclosure.
      • LEDs show port selection.
      • Package includes switch, manual, and power supply.

    • Specifications

      • Distance:
      • Input: 65 ft. (19.8 m) maximum;
      • Output: 50 ft. (15.2 m) maximum
      • Resolution 1600 x 1200 or HDTV up to 1920 x 1080p maximum
      • Standards DVI-D single-link

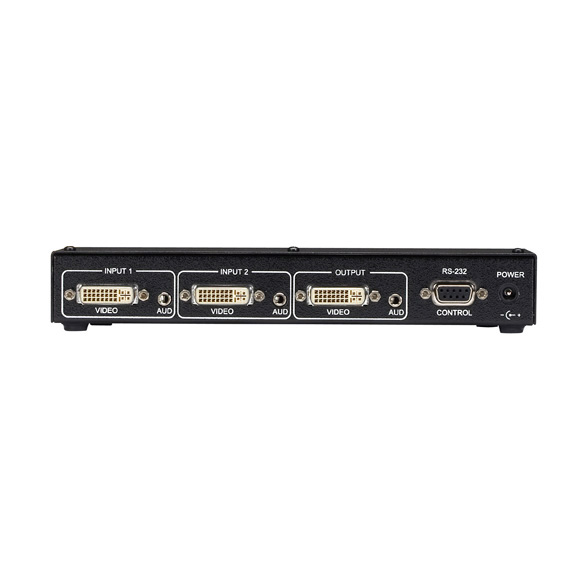

      • Connectors Both: Serial: (1) DB9 F (RS-232);
      • AC1032A-2A: Video in: (2) DVI F;
      • Video out: (1) DVI F;
      • Audio in: (2) 3.5-mm mini stereo jacks;
      • Audio out: (1) 3.5-mm mini stereo jack;
      • AC1032A-4A: Video in: (4) DVI F;
      • Video out: (1) DVI F;
      • Audio in: (4) 3.5-mm mini stereo jacks;
      • Audio out: (1) 3.5-mm mini stereo jack
      • Indicators Per port LEDs
      • Power Input: 100-240 VAC, 50-60 Hz with universal plug kit;
      • Output: 6 VDC
      • Dimensions AC1032A-2A: 1.3"H x 8.4"W x 2.6"D (3.3 x 21.3 x 6.6 cm);
      • AC1032A-4A: 1.7"H x 8.4"W x 2.7"D (4.3 x 21.3 x 6.9 cm)
      • Weight AC1032A-2A: 1.1 lb. (0.5 kg);
      • AC1032A-4A: 1.8 lb. (0.8 kg)
      • NOTE: If you need analog/VGA support without audio, check out the Black Box AC1031A-R2-2 and AC1031A-R2-4.
