Black Box ACU5050A-R2 ServSwitch Wizard USB KVM Extender with Audio
  • Black Box ACU5050A-R2 ServSwitch Wizard USB KVM Extender with Audio
  • Black Box ACU5050A-R2 ServSwitch Wizard USB KVM Extender with Audio
  • Black Box ACU5050A-R2 ServSwitch Wizard USB KVM Extender with Audio

Questions? Ask a Markertek Expert:
800-522-2025 Email

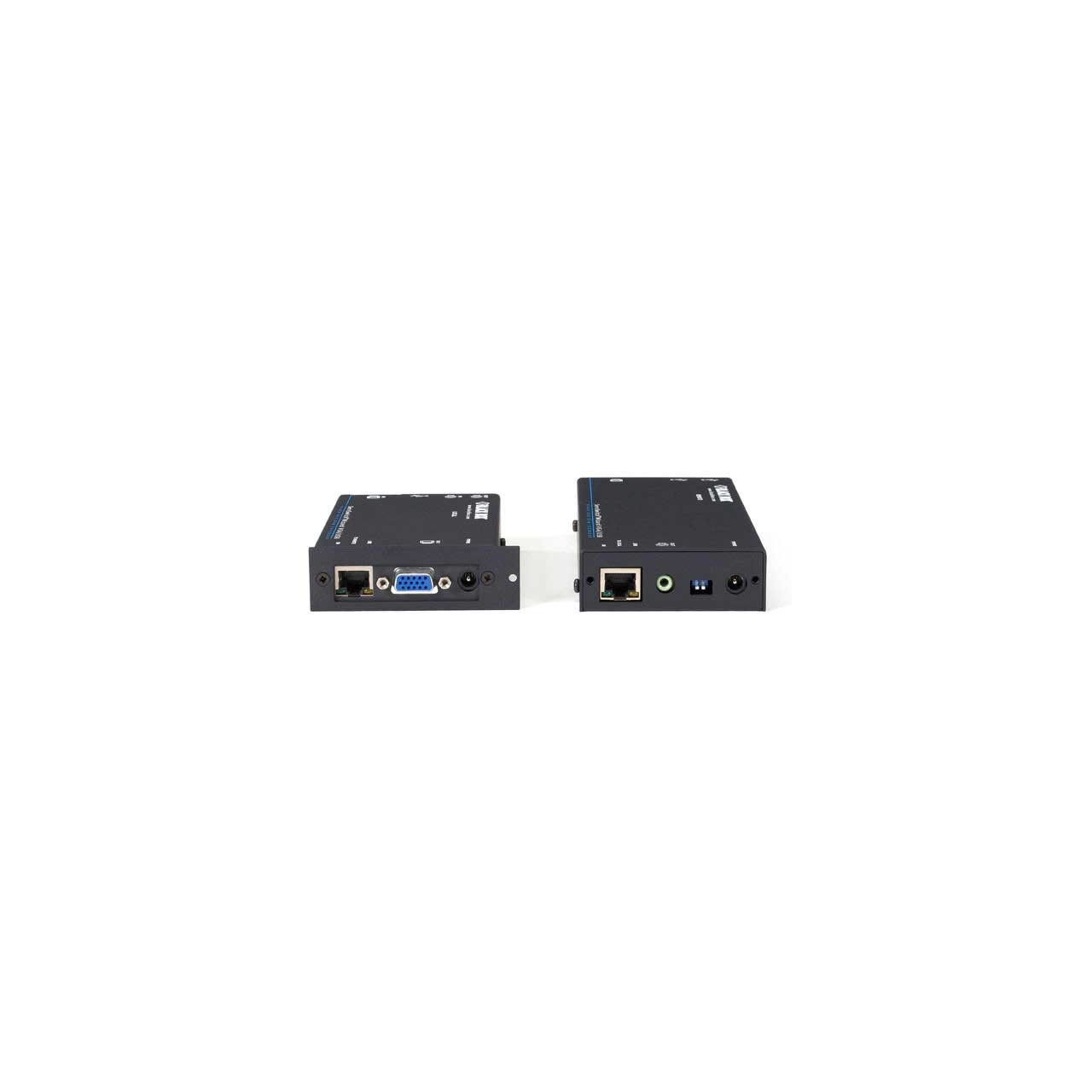

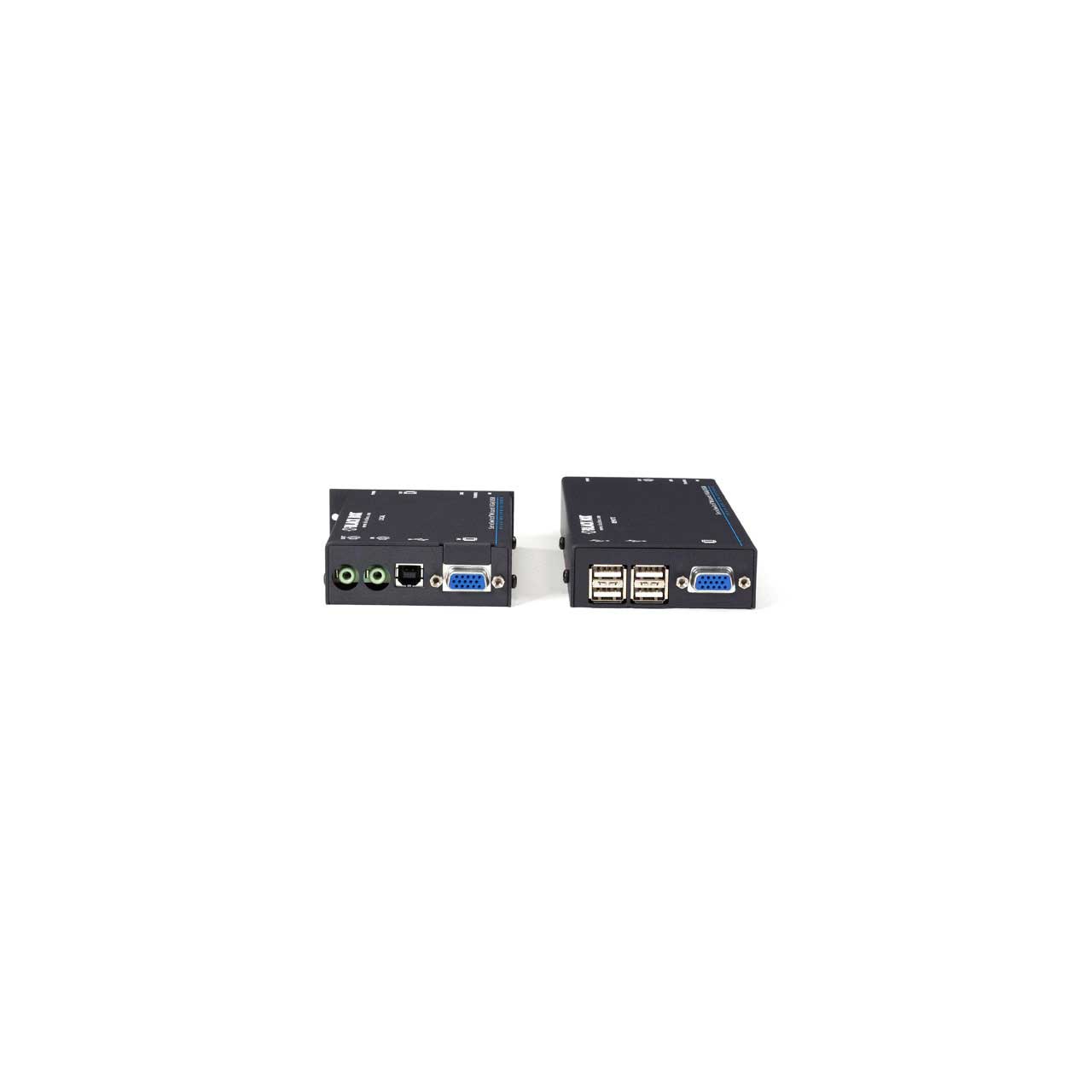

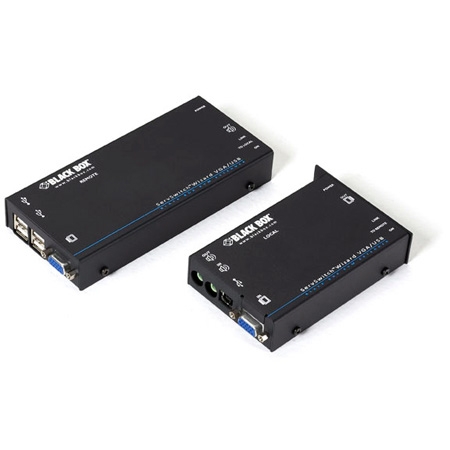

Black Box ACU5050A-R2 ServSwitch Wizard USB KVM Extender with Audio

Manufacturer: Black Box

Item #: BBX-ACU5050A-R2   •   MFG #: ACU5050A-R2



List Price:$1,136.20
Our Price:$1,079.75

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




    Share!





    Put extra distance between your USB-style peripherals and your CPU with the ServSwitch Wizard KVM USB Extender with Audio. The extender is ideal for high-density applications where you want full use of USB keyboards, mice, and other devices but there simply isn't room for a server nearby, or for applications where you want to keep CPUs secured and out of the way.

    Even better, all communications use inexpensive CAT5 or higher cable, so there's no special cabling needed to extend a USB bus from a PC to peripherals!

    Extend video and audio signals, too.The extender enables you to transmit more than just signals for USB connections. You can use the same CAT5, CAT5e, or CAT6 cable link to transmit video signals, too!

    And to transmit bidirectional audio for microphone or speaker signals for a truly multimedia workstation, just attach a second CAT5 or higher link. The extender package includes a local and a remote unit. Simply connect the local module to your PC or Sunr system and the remote module to the peripherals next to the user. The remote unit contains a built-in USB hub that provides four separate USB 2.0 channels for attaching multiple devices.

    Fine-tune images at the remote end.
    On the remote unit, video compensation switches and dials enable you to adjust the image and keep the video signal crisp and clear with no "shadowing." Using these functions, you can boost video frequencies to counter the effects of long cable runs. The remote unit also has a signal-boost feature that optimizes less-responsive microphones. To protect against power surges, both modules include internal automatic cut out fuses.

    What's more, you can mount both local and remote units in an optional space-saving chassis, which makes these extenders perfect for fast-growing installations.


    • Features

      • Supports all USB 1.1 devices (full speed and low speed modes) and USB 2.0 devices that will run in low speed or full speed USB 1.1 modes.
      • Supports high-bandwidth monitors at resolutions up to 1920 x 1080.
      • Ideal for high-density applications where you want full use of USB keyboards, mice, and other devices but there simply isn't room for a server nearby, or for applications where you want to keep CPUs secured and out of the way.
      • Sends VGA, USB, keyboard, and mouse plus audio up to 1000 feet over CATx, depending on video resolution.
      • Now with improved video performance.
      • Rackmount multiple local and remote units in the optional ServSwitch Wizard Extender Chassis (ACU5000A).
      • Compatible with most PC and Sun systems.
      • Video signal boost features ensure that the video signal remains clear.
      • Also supports emulated DDC for high-quality video resolution.
      • Automatic cut-out fuses protect against power surges.

    • Specifications

      • Approvals CE
      • Resolution 1920 x 1200: at less than 500-ft (152.4 m);
      • 1600 x 1200: at 1000-ft (304.8 m) maximum
      • Connectors Local unit: Audio: (2) 3.5-mm jacks;
      • Video: (1) HD15 F;
      • Interconnect: (2) RJ-45;
      • USB: (1) USB Type B;
      • Power (optional): (1) barrel for power supply (not required when USB connection to PC is used);
      • Remote module: Audio: (2) 3.5-mm jacks;
      • Video: (1) HD15 F;
      • Interconnect: (2) RJ-45;
      • USB: (4) USB Type A;
      • Power: (1) barrel for power supply
      • Indicators Local unit: ON (indicates power from USB port or optional power supply is present); HOST (indicates connection to USB host and/or device connection to remote unit); LINK (indicates link between local and remote units);
      • Remote unit: ON (indicates power from power supply is present); LINK (indicates connection to USB host via local unit and/or device connection to remote unit)
      • Power Local unit: From the PC's USB connections or optional 5-VDC power supply (PS649-R3);
      • Remote unit: Input: From the included power supply; Output: 5 VDC, 2.5 A
      • Dimensions 1"H x 2.9"W x 6.4"D (2.5 x 7.4 x 16.3 cm)
      • Weight Each unit: 1 lb. (0.5 kg)

    • Item Includes

      • Local unit
      • Remote unit
      • USB cable
      • Audio cable
      • Video cable
      • (2) rackmounting plates
      • (8) self-adhesive rubber feet
      • Power supply for remote unit (PS649-R3)
      • IEC 320 power cord
      • Safety guide
