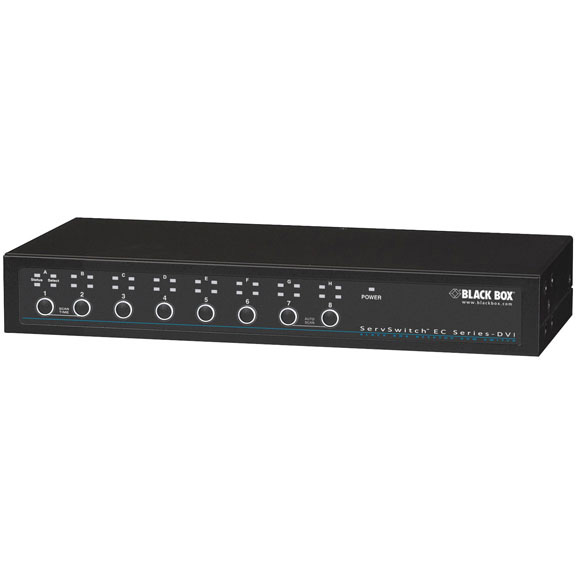

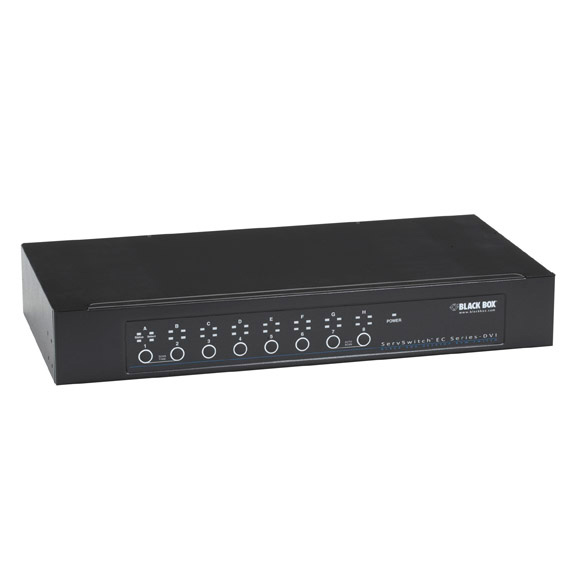

Black Box KV9516A ServSwitch  - USB Servers - DVI /USB Console - 16 port
  • Black Box KV9516A ServSwitch  - USB Servers - DVI /USB Console - 16 port
  • Black Box KV9516A ServSwitch  - USB Servers - DVI /USB Console - 16 port
  • Black Box KV9516A ServSwitch  - USB Servers - DVI /USB Console - 16 port
  • Black Box KV9516A ServSwitch  - USB Servers - DVI /USB Console - 16 port
Questions? Ask a Markertek Expert:
800-522-2025 Email

Black Box KV9516A ServSwitch - USB Servers - DVI /USB Console - 16 port

Manufacturer: Black Box

Item #: BBX-KV9516A   •   MFG #: KV9516A


List Price:$1,287.70
Our Price:$1,179.75

free ship
Availability: Usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.
  • Special Order Item: non-cancelable, non-returnable, non-refundable.



Manage and control up to 16 DVI and USB servers from your desktop.

Tight quarters.
Ideal for applications where you have a limited amount of space, the 2U-high 16-port DVI switch can be used on the desktop or mounted in a rack or cabinet.

Choice in switching.
Switch between servers using front-panel buttons or hotkeys. Or if you select the autoscan function for automatic switching, the ServSwitch EC will scan and switch between servers, one by one, at an interval that you determine. When autoscan detects any keyboard or mouse activity, it suspends the scanning until activity stops and then resumes with the next computer in sequence.

Set it and forget it.
System settings are stored in nonvolatile memory so you don't have to worry about a power outage wiping out your information. The ServSwitch EC also saves your keyboard settings for each server and restores them when you come back to that machine.

Check it.
The front panel includes port LEDs, which light with the corresponding active port when you switch between servers.

Digital quality.
With video enhancement technology that ensures superb quality and resolutions up to 1920 x 1200, the ServSwitch EC is DDC2B compatible, so you can use it with the latest digital monitors. What's more, the switch is operating-system independent and transparent to all applications.

  • Features

    • Resolutions up to 1920 x 1200.
    • Perfect for small server rooms.
    • 16-port DVI (single link) and USB KVM switch with USB/DVI console.
    • Unit is 2U high.
    • Supports Microsoftr IntelliMouser (Pro).
    • Operating system independent and transparent to all applications.
    • Switch with hotkeys, manually, or use autoscan, which selects servers sequentially.
    • Hot-pluggable keyboard/mouse ports.
    • Plug-and-play configuration.
    • DDC2B compatible.
  • Specifications

    • Autoscan Intervals - 3, 8, 15, and 30 seconds
    • Cable Length (Maximum) - At console: 15 ft. (4.5 m);
    • At PC ports for USB server: 15 ft. (4.5 m)
    • Operating Systems Supported - Windowsr 98/Me/Windows XPr, Windows NTr, Windows 2000, Windows Vistar, Windows 7, Mac OSr
    • Resolution (Maximum) - 1920 x 1200
    • User Controls - (8) dual-function selection buttons
    • CE Approval - Yes
    • RoHS - Yes

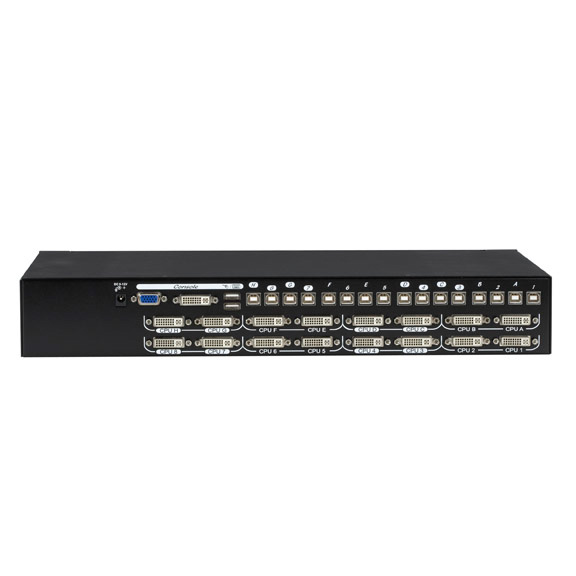

    • Connectors - Server: (16) DVI-I (digital only), (16) USB Type B F;
    • Console: Keyboard/Mouse: (2) USB Type A F;
    • Monitor: (1) DVI-I F (digital only)
    • Indicators - LEDs: (2) per port, (1) power per unit
    • Power - External power supply: Input; 100-240 VAC, 50-60 Hz; Output: 12 VDC, 4A
    • Size - 2.6"H (2U) x 17.25"W x 9"D (6.6 x 43.8 x 22.9 cm)
    • Weight -8.4 lb. (3.8 kg)
  • Item Includes

    • (1) ServSwitch EC
    • (1) universal power supply, 12 VDC, 4.0 A output
    • (1) 6-ft. power cable
    • Set of (4) foot pads
    • (2) mounting brackets
    • Assortment of screws
    • User's manual
