Canare BCP-B51F 75 Ohm BNC Crimp Plug for L-5CFW

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

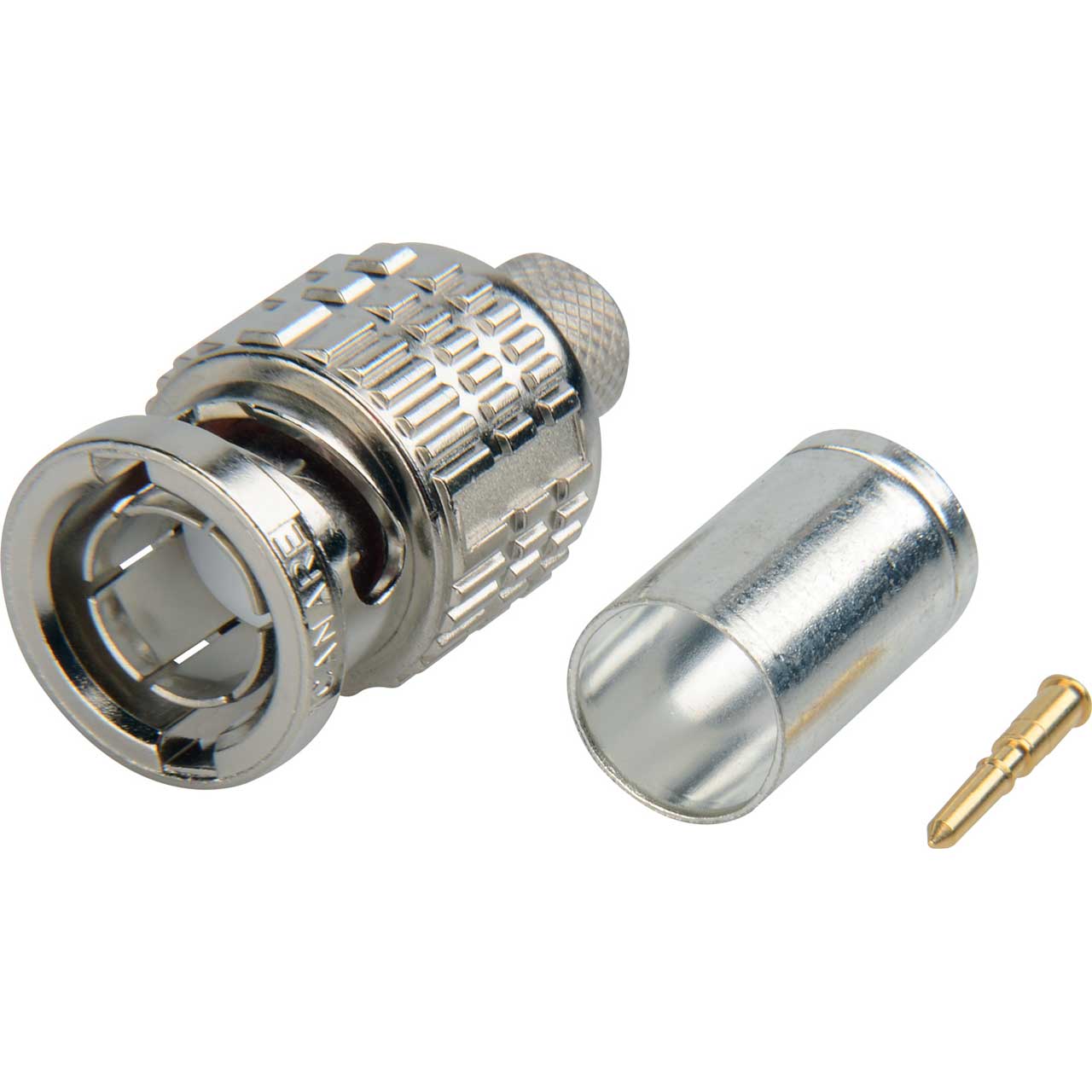

    Canare BCP-B51F 75 Ohm BNC Crimp Plug for L-5CFW

    Item #: BCP-B51F   •   MFG #: BCP-B51F



    List Price:$2.99
    Our Price:$2.49
    Quantity Pricing

    free ship


    Availability: In Stock
    i
    Item is Available for immediate shipping from our warehouse.




      Share!





      Canare true 75 Ohm BCP connectors has been widely used in a number of video formats analog to digital with outstandingelectrical and mechanical performance. Exceeding 3.0Gbps HD-SDI requirements specified in SMPTE424M. The highest quality BNC in the market.


      • Features

        • True 75 ohm construction Crimp Pin & Sleeve
        • High performance of 1.1 or less VSWR up to 3GHz.
        • Elongated Body for better finger grip
        • Position mark on body allows the connector fit to be check easily.
        • Superior cable pull strength
        • Gold plated center pins 'snap' into place
        • Connector Body has been die-cast, achieving a lower price with higher performace
        • Easy Assembly using Canare Strip & Crimp Tools

      • Specifications

        • Return Loss (0-3GHz): 26dB or greater
        • Coupling Sleeve: Zinc Alloy Die Casting
        • Center Pin: Gold Pating
        • Weight: approx. 12.5g
