Broadata MINI-DVI-WP-T-M-SC Mini DVI Video Transmitter

ITEM #: BD-MINIDVIWPTMSC MFG #: MINI-DVI-WP-T-M-SC

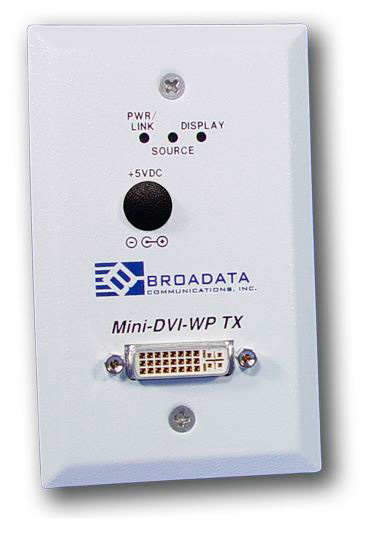

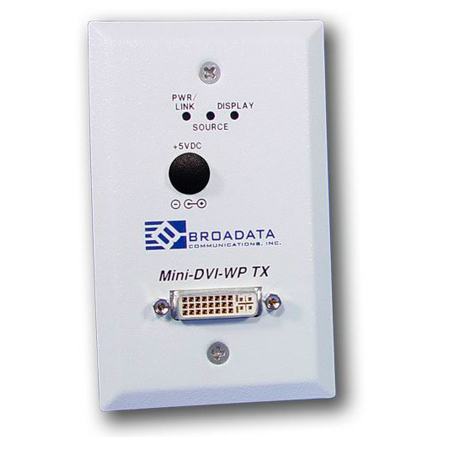

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BD-MINIDVIWPTMSC

MINI-DVI-WP-T-M-SC - Overview

The Mini-DVI-WP Series is a high performance, low cost, miniature, Fiber Optic DVI extender system designed specifically for wall plate installation. It carries one (1) unidirectional DVI video, together with HDCP/DDC, through one (1) multimode fiber. This unique fiber optic transmission system lets your digital flat panel display extend up to 400m at WUXGA (1920x1200 @ 60Hz) resolution.

No user adjustment is required for the Mini-DVI-WP system due to the use of advanced digital fiber optic transmission system technology with zero compression and zero bit reduction. This allows for a quick and easy setup, offering trouble-free operation for many years to come. The Mini-DVI-WP supports video resolution up to WUXGA (1920 x 1200 @ 60 Hz) or 1080p @ 60Hz HDTV video resolution. It supports in-wall +12VDC powering option.

  • Features:

    • DVI 1.0 Compliant
    • Up to 400m at WUXGA (1920x1200 @ 60Hz)
    • Supports HDCP/DDC Content
    • Zero Compression and Zero Bit Reduction
    • Up to 720p/1080i/1080p HDTV Video Resolution
    • Over 1 Multimode Fiber

  • Specifications:

    • Video
    • Resolution - Up to 1080p @ 60Hz or 1920x1200 @ 60Hz
    • Connector - DVI Female Plug
    • Protocol - HDCP/DDC Capable

    • Physical
    • Dimension (H x W x D) - 4.50" x 2.75" x 1.2"
    • Power Level (max.) - +12VDC @ 0.5A (in-wall)
    • Power Wiring Distance - >200 ft. when 22-AWG wire is used with 12VDC
    • Operating Temperature - 0 to +50oC
    • Humidity - 0 to 95% RH, non-condensing

    • Optical
    • Fiber Type - Multimode
    • Number of Fibers - 1
    • Connector - SC


MINI-DVI-WP-T-M-SC - Required Accessories
