Belden 7921A Paired- CAT5e DataTuff Twisted Pair Cable 1000ft Blue

ITEM #: BL-7921A-1000BE MFG #: 7921A 0061000

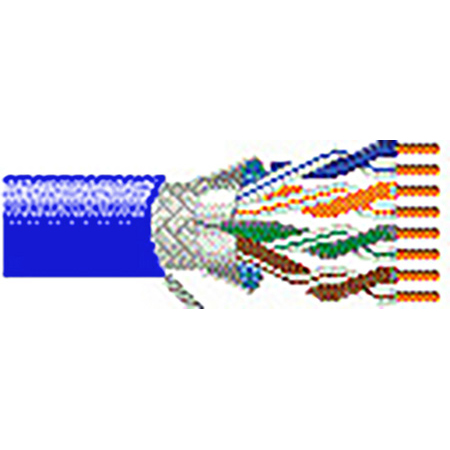

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3,427.20

Our Price:

$2,695.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

7921A 0061000 - Overview

Industrial Ethernet Cat 5e, 4 Bonded-Pair 24AWG (Solid) Bare Copper, PO Insulation, Overall Beldfoil®+Tinned Copper Braid(70%) Shield, PVC Outer Jacket, CMR CMX-Outdoor

  • Specifications:

    • Number of Pairs: 4
    • Total Number of Conductors: 8
    • AWG: 24
    • Stranding: Solid
    • Conductor Material: BC - Bare Copper
    • Insulation Material: PO - Polyolefin
    • Outer Shield Material Trade Name: Beldfoil
    • Outer Shield Material: Aluminum Foil-Polyester Tape/TC - Tinned
    • Max. Conductor DCR: 9.38 Ohm/1000ft
    • Max. DCR Unbalance: 3%
    • Max. Capacitance Unbalance: 150 pF/ft
    • Nom. Mutual Capacitance: 15 pF/ft
    • Max. Delay: 538 ns/100m
    • Max. Delay Skew: 45 ns/100m
    • UL Voltage Rating: 300 V (CMR), 300 V (CMX-Outdoor)
    • UL Rating Temp: 60°C
    • Operating Temp: -40°C To +75°C
    • Installation Temp: -25°C To +75°C
    • Storage Temp: -40°C To +80°C
    • Max. Pull Tension: 75 lbs
    • Bulk Cable Weight: 50 lbs/1000ft
    • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
    • Flammability / Fire Resistance: UL1666 Riser, FT4, FT4, 1202 Vertical Tray, IEC 60332-1-2
    • NEC / UL Compliance: 800, CMR;CMX-Outdoor
    • CEC / C(UL) Compliance: CMX-Outdoor
    • Data Category: Category 5e


  • GTIN:

    0612825191254
