Belden 8454 4-Conductor Rubber Jacket 300V Portable Cordage - Black - 500 Foot

ITEM #: BL-8454-010500 MFG #: 8454 010100

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$2,852.95

Our Price:

$2,562.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    8454 010100 - Overview

    A portable cord (also known as portable cordage, flexible cord, or extension cord) is a cable with multiple conductors used for temporary electrical power connections requiring flexibility. The cord can be employed in a range of applications, such as operating motors in small and large tools, equipment, power extensions, home appliances, and machinery.Portable cords may be used in commercial, industrial and residential applications. Some are used on job sites where resistance to oil, chemicals, and abrasion is essential in extreme environments - both the heat and the cold, outside or inside. Additionally, some portable cords can be water-resistant or water-submersible. Portable cords are commonly used in a range of facilities, such as construction sites, mills, mines, sports complexes, or even marinas.

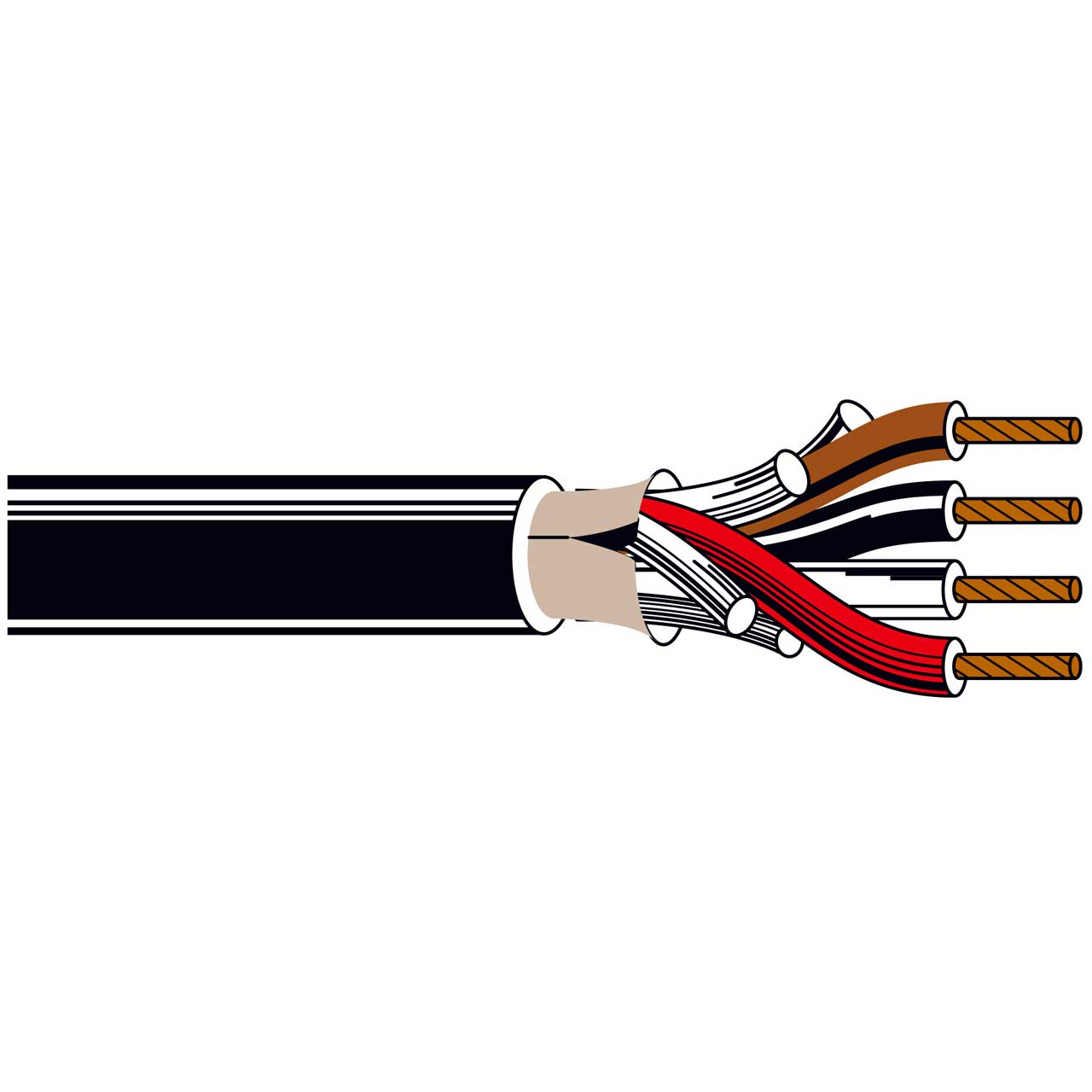

    4-conductor rubber jacket, 300V, 60 degrees C, paper tape separator, smooth jacket, style 4097, color code: black, white brown, red.

    • Specifications:

      • Conductor AWG:
      • # Conductors: 4
      • AWG: 18
      • Stranding 41x34
      • Conductor Material:TC - Tinned Copper
      • Total Number of Conductors: 4
        Insulation Material:
      • Insulation Material: EPDM - Ethylene Propylene Diene Monomer Rubbe
      • Wall Thickness (mm): 0.4572
        Outer Shield
      • Outer Shield Material: Unshielded
        Outer Jacket Material
      • Outer Jacket Material: Rubber
      • Nom. Wall Thickness (mm): 0.9144
        Overall Cable
      • Overall Cabling Fillers: Jute
      • Overall Cabling Color: Black, White, Brown, Red
      • Overall Cabling Separator Material: Paper Tape
      • Overall Nominal Diameter: 6.731 mm
        Mechanical Characteristics (Overall)
      • UL Temperature Rating: 60 degrees C
      • Bulk Cable Weight: 74.410 Kg/Km
      • Max. Recommended Pulling Tension: 364.752 N
      • Min. Bend Radius/Minor Axis: 69.850 mm
        Applicable Specifications and Agency Compliance (Overall)
      • AWM Specification: UL Style 4097
      • EU Directive 2011/65/EU (ROHS II): Yes
      • EU CE Mark: Yes
      • EU Directive 2000/53/EC (ELV): Yes
      • EU Directive 2002/95/EC (RoHS): Yes
      • EU RoHS Compliance Date (mm/dd/yyyy): 10/13/2005
      • EU Directive 2002/96/EC (WEEE): Yes
      • EU Directive 2003/11/EC (BFR): Yes
      • CA Prop 65 (CJ for Wire & Cable): Yes
      • MII Order #39 (China RoHS): Yes
        Plenum/Non-Plenum
      • Plenum (Y/N): No
        Electrical Characteristics (Overall)
      • Max. Operating Voltage - UL: 300 V RMS
      • Max. Recommended Current: 5.6 Amps per conductor @ 25ÝC
      • Dielectric Withstand Voltage: 1500 V AC Applied for 1 Min.

    • Item Includes:

      • 1X 500' Spool

    • Warranty:

      • 10 Years

    • GTIN:

      0612825207870
