Blackmagic CONVMBHS2 HDMI to Dual 3G HD-SDI with 2-CH AES/EBU or Analog Audio

Manufacturer: Blackmagic Design

Item #: BMD-CONVMHS   •   MFG #: BMD-CONVMHS



This item is no longer available. Please email or call us and we we'll be happy to help you with an appropriate substitute.




Share!

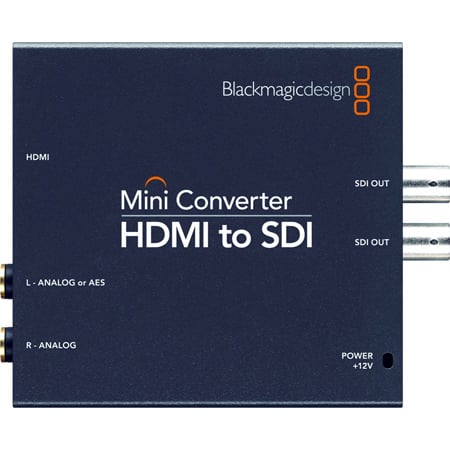

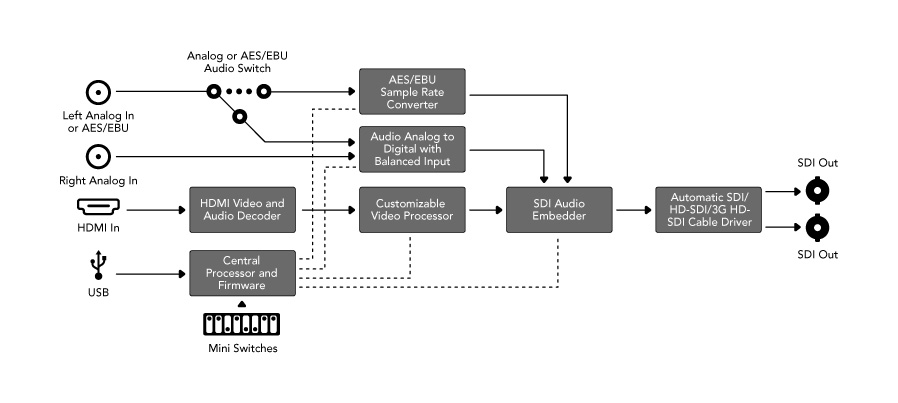

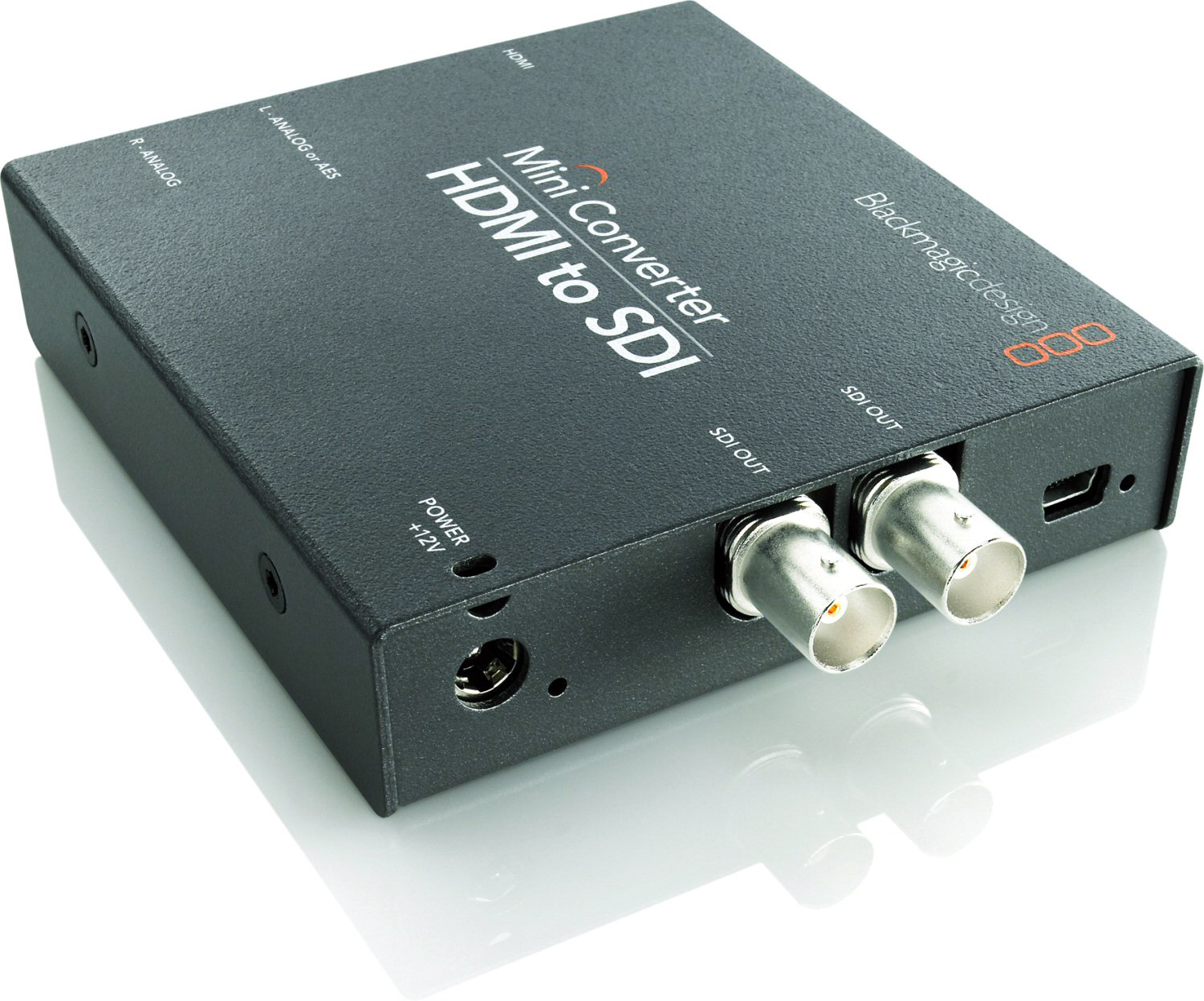

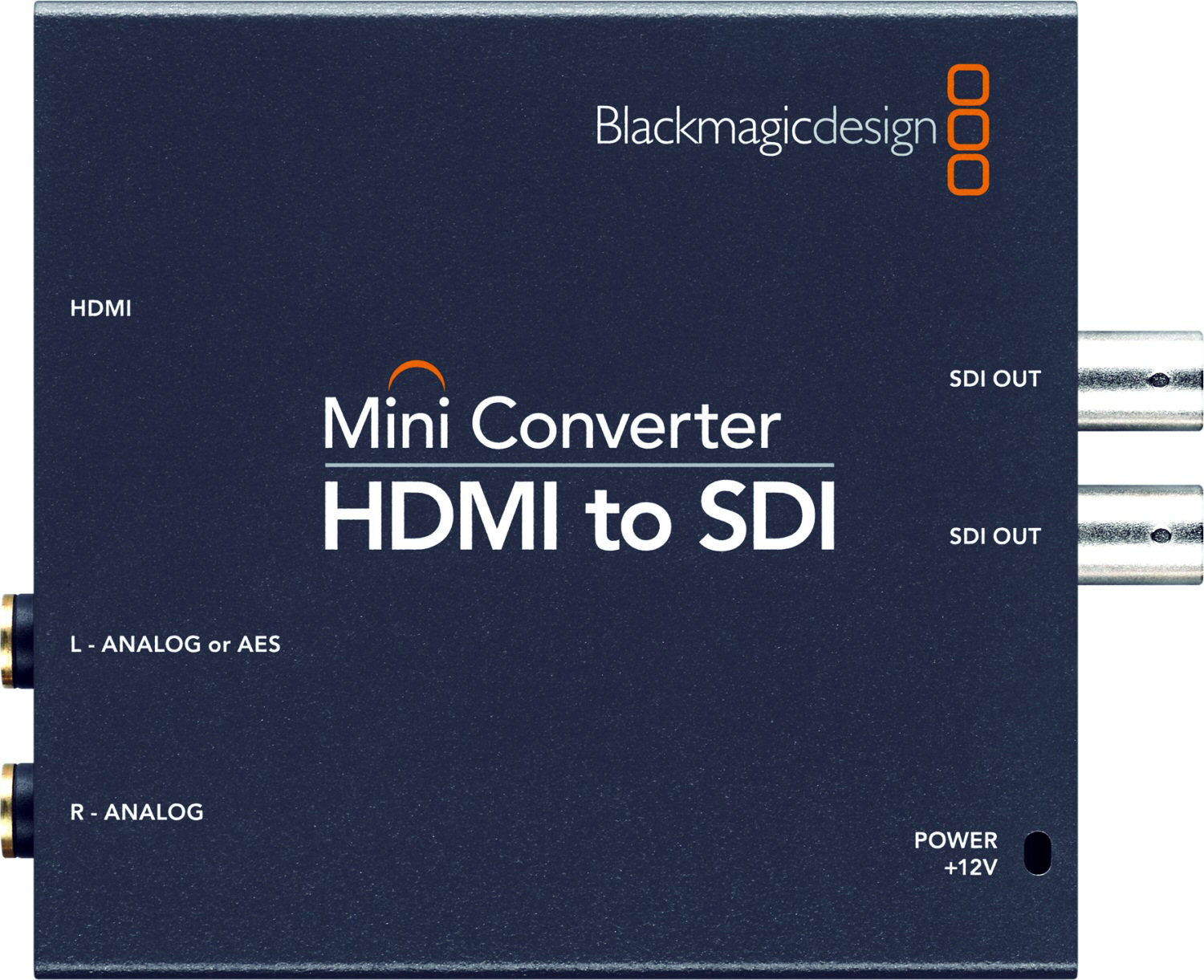

The Mini Converter HDMI to SDI from Blackmagic Design will accept an HDMI signal and convert it to 2 SDI outputs. You can also choose to embed audio from balanced AES/EBU or analog audio inputs. Use this device to add SDI output to cameras with HDMI connections or add SDI outputs to computers with HDMI or DVI connectors.

Embedded Audio This unit can embed SDI audio from balanced AES/EBU or analog audio inputs.

Universal Power A power supply with international socket adapters for all countries is included.


The new Blackmagic Mini Converter range are the worlds most advanced converters because they include the latest 6G-SDI technology, plus automatically detect the input video format and instantly change between virtually all SD, HD and Ultra HD video standards! Simply plug in and Mini Converters will convert between your equipment all automatically! You get advanced features such as redundant SDI inputs, re-clocked loop outputs and full analog and AES/EBU audio inputs and outputs so you can convert between formats as well as embed or de-embed audio all on the one converter! Choose from a range of 13 models depending on the conversion you need!

Easy To Use Features.
Broadcast, post production and professional AV environments are built using SDI equipment and cabling. It's essential when converting to and from SDI that you maintain the highest possible video and audio quality. Mini Converters are compact, affordable and easy-to-use. Settings can be changed quickly using built-in mini switches, and with a diagram showing pin settings printed on the back you never need to refer to a manual! Mini Converters use standard broadcast video and audio connections, so you get the convenience and cost savings of using your own cables!


  • Features

    • (1) HDMI Input, (2) SDI Output
    • Embedded Audio

  • Specifications

    • Input:HDMI (x1)
    • Audio:
    • Analog:(2) channels of professional balanced analog with standard 1/4" jack connections
    • Digital:(2) channels of professional balanced digital with standard 1/4" jack connections, AES/EBU standard.
    • Standards:
    • SDI Format Support:625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60
    • SDI Compliance:SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI.
    • SDI Video Sampling:4:2:2 None
    • SDI Video Rates:SDI video connections are switchable between standard definition and high definition.
    • SDI Color Precision:4:2:2
    • SDI Color Space:YUV.
    • SDI Audio Sampling:Television standard sample rate of 48 kHz and 24 bit.
    • SDI Auto Switching:Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI
    • Analog Format Support:625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60
    • Analog Color Precision:4:2:2
    • Analog Color Space:YUV
    • HDMI Format Support:625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC, 1080p23.98/24, 1080i50, 1080i59.94/60, 720p50 and 720p59.94/60
    • HDMI Color Precision:4:2:2 and 4:4:4
    • HDMI Color Space:YUV and RGB
    • Copy Protection:For legal reasons, capture devices from Blackmagic Design are designed not to capture, convert or transmit video or audio from copy-protected sources, e.g. video devices using HDCP.
    • Power: 12VDC.

  • Item Includes

    • Blackmagic Design Mini Converter HDMI to SDI Converter
    • Power Supply
    • Three-Year Warranty Against Defects in Material & Workmanship



REVIEW SNAPSHOT®

by PowerReviews
Blackmagic Design CONVMHS HDMI to SDI/HD-SDI/3G-SDI with 2-Channel AES/EBU or Analog Audio

3.0

(based on 1 review)

Ratings Distribution

  • 5 Stars



    (0)

  • 4 Stars



    (0)

  • 3 Stars



    (1)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

Reviewed by 1 customer

Displaying review 1

Back to top


3.0

There are better options

By TCTexas

from Houston, TX

About Me Webcast Producer

Verified Buyer

Pros

  • Easy Setup
  • Easy To Use

Cons

  • Limited Compatibility

Best Uses

    Comments about Blackmagic Design CONVMHS HDMI to SDI/HD-SDI/3G-SDI with 2-Channel AES/EBU or Analog Audio:

    BMD makes amazing products at great prices. Unforuntately, this is NOT one of them if you want to see your SDI output in 1080i. The product works very well in 720 mode, but when connected to devices with a 1080i output that is being passed to the BMD ATEM switcher (and others from what I've read), the 1080i output is not reliable.
