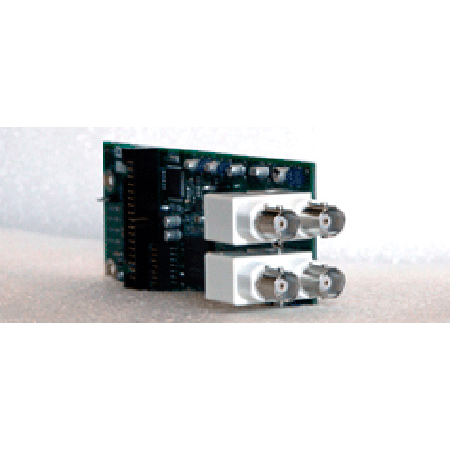

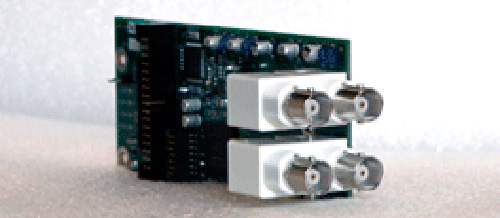

    Brainstorm VSG-4 Video Sync Generator Card for Brainstorm DCD-8

    Manufacturer: Brainstorm Electronics

    Item #: BRAIN-VSG4   •   MFG #: VSG-4




    Our Price:$965.00

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




      Share!





      The VSG-4 generates analog tri-level and bi-level sync signals for HD and SD video applications. It is designed as an option for the Brainstorm DCD-8 Word Clock Distripalyzer. The combination of the DCD-8 and the VSG-4 delivers a complete solution for all sync requirements in the post-production, recording and broadcast environments.

      Up to 4 different sync formats can be generated simultaneously through the 4 BNC outputs, 2 HD and 2 SD. The VSG-4 operates either as a master sync generator or genlocked to any of the references available to the DCD-8: Video (HD or SD), Word Clock, Digital Audio (AES/EBU, S/PDIF, FireWire, ADAT) or GPS.

      When genlocking, the output rates can be different from the reference rate, while still maintaining phase coherence. For example, 30 and 24 or 23.976 and 29.97 will be correctly aligned.

      By making use of the DCD-8's B Domain PLL, the VSG-4 provides stable HD clock rates over long periods of time.

      The VSG-4/DCD-8 combination brings a great amount of flexibility. Audio can be locked to video or vice-versa. Many different rates can be generated simultaneously. Most importantly, a single sync reference can run your whole audio/video installation.


      • Features

        • Generates NTSC, PAL and HD tri-level sync
        • Generates up to 4 different formats simultaneously (2 HD + 2 SD)
        • Genlocks to any of the DCD-8 references: HD or SD video; Word Clock; Audio (AES/EBU, S/PDIF, FireWire, ADAT); GPS
        • Can also operate as a Master Sync Generator
        • Very Low-Jitter Video Sync output
        • Comprehensive choice of rates and formats (31 different options)
        • Easy installation into the DCD-8

      • Specifications

        • Waveforms: All rise and fall times per their respective standards
        • References: Internal Xtl, Video (HD & SD), WC, AES, S/PDIF, FireWire, ADAT, GPS
        • Connectors: BNC - 75 Ohm - DC coupled
        • Form Factor: 2" x 5.4" PCB - for Brainstorm DCD-8 only
        • DCD-8 Domain: When generating HD sync, the VSG-4 uses the B Domain on the DCD-8
        • Number of outputs:4 (2 SD + 2 HD)

        • Standards
        • 1080: SMPTE 274M, RP211, 295M
        • 720: SMPTE 296M
        • NTSC: RS170A
        • PAL: Rec ITU-R BT.470-6

        • Output Levels:
        • Tri-level: 600mV p-p into 75 Ohm (+/-300mVDC sync tip)
        • NTSC: 429mV p-p into 75 Ohm (-286mVDC sync tip)
        • PAL: 450mV p-p into 75 Ohm (-300mVDC sync tip)
