Burst DSR8X1 HD/SD SDI 8x1 Video Switcher

Manufacturer: Burst Electronics Inc

Item #: BURST-DSR8X1   •   MFG #: BURST-DSR8X1







The DSR8x1 provides dependable signal routing of eight HD or SD SDI video signals, between 143Mbps and 1.5Gbps, to a selected output.

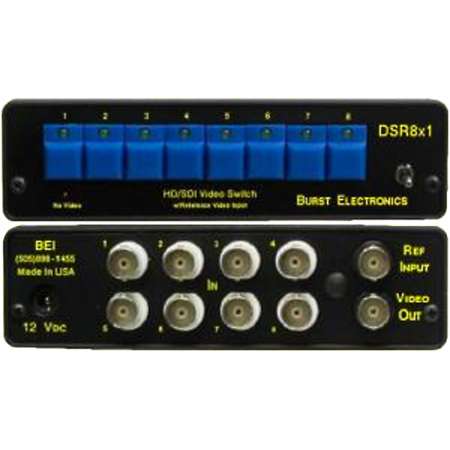

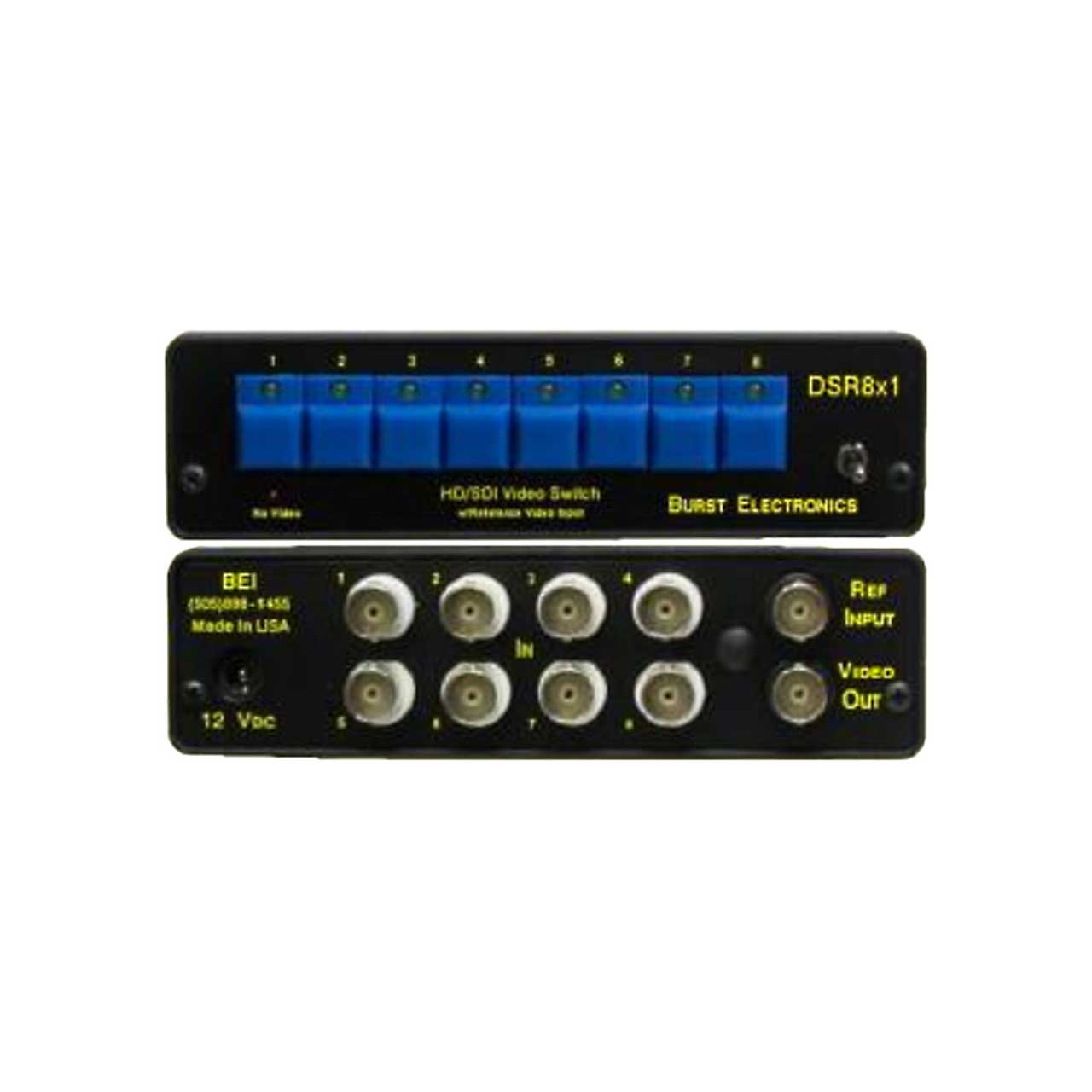

There are eight LED switches mounted on the front panel to select among the inputs. For remote control, there is an optional RS232 serial port that uses simple ASCII commands for input selection. The included serial control makes for a very economical remote-access SDI switcher.

In addition, the DSR8x1 can be controlled by an optional RC8x1, a separate device with illuminated switches for selection between inputs. Another optional remote control for the DSR8x1 uses DTMF tones.

The DSR8x1 are housed in Burst Electronics standard aluminum and steel enclosures that can be either desktop- or rack-mounted in a 1U rail. Power is supplied by any 9-15 Vac/dc power source using a 2.1mm circular connector (5Vdc optional). The units are polarity immune - perfect for vehicular and portable applications.

  • Features

    • Accepts HD/SD signals between 143Mbps and 1.5Gbps
    • Cross standard switching (between HD and SD inputs)
    • Analog reference input for clean switching between synchronized sources
    • LED-Illuminated pushbutton switches for input selects
    • Input level compensation for long-cable applications
    • Compact design and easy to use
    • Model DSR8x1R Optional RS232 remote control using simple ASCII commands
    • Model DSR8x1T Optional DTMF
  • Specifications

    • Inputs: 8
    • Connectors: BNC
    • Level: 20-800mV p-p
    • Freq. Range: 143Mbps to 1.5Gbps inclusive
    • Analog Reference Video (Tri-Level or Composite Sync): BNC
    • Outputs: 1
    • Connectors: BNC
    • Level: 800mV p-p
    • Freq. Range: 143Mbps to 1.5 Gbps inclusive
    • DSR8x1: 5.6W x 1.5H x 7.3D (inches)
