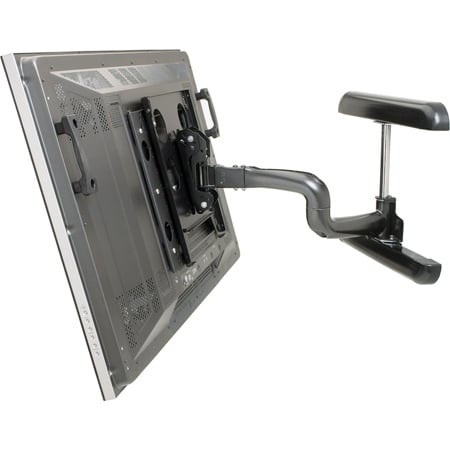

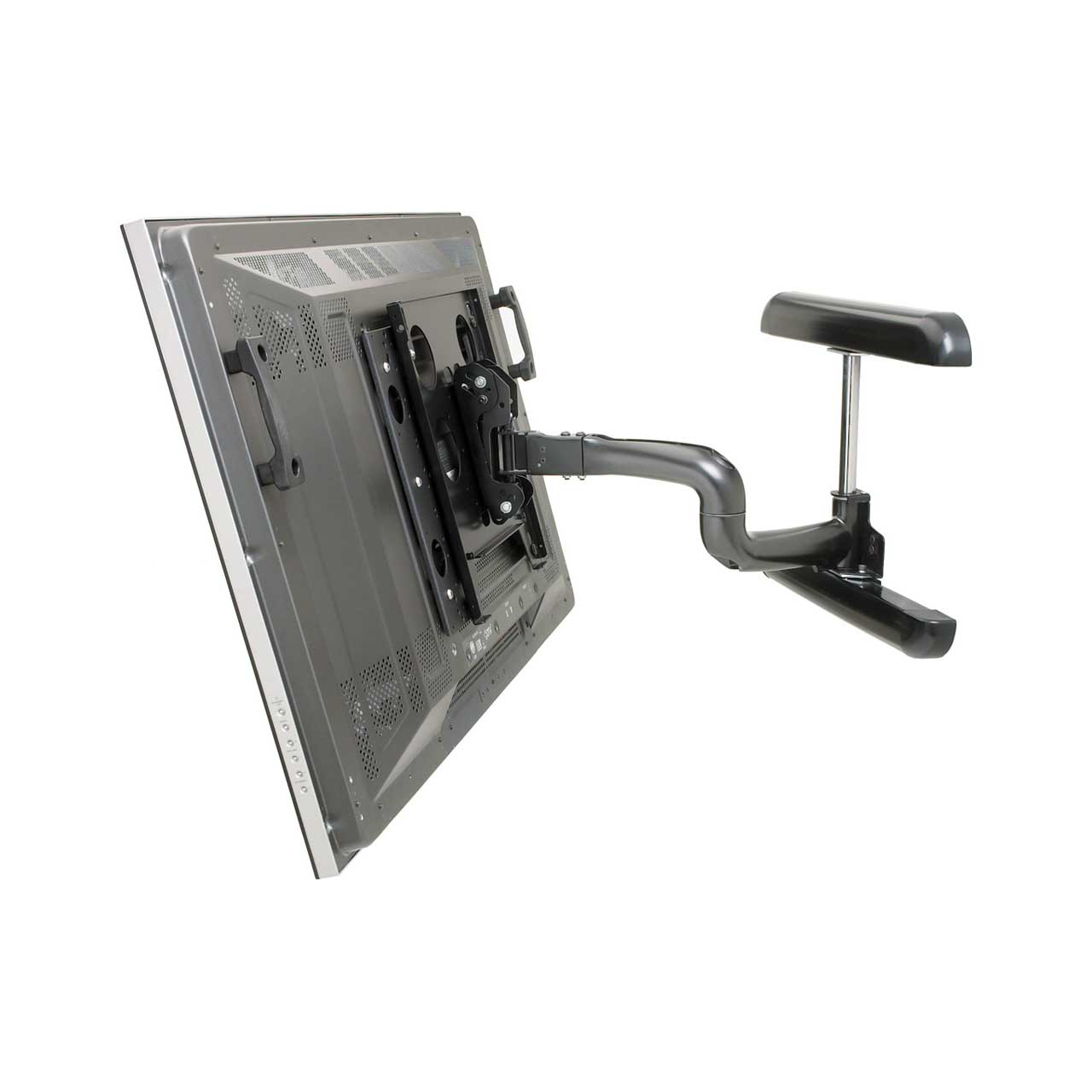

Chief PWRUB Large Flat Panel Swing Arm Wall Mount - 25 Inch Extension

PWRUB - Overview

• Features:

  • Extends 24.88" from wall and remains low profile in the home position
  • Q-Latch Mounting System secures flat panel to mount with a latching flag
  • Integrated lateral shift 6" left and right (ships shifted 2.5" to the left)
  • Centris Technology provides fingertip tilt adjustments
  • Mounting guides provided for a hassle-free installation
  • Provides positive latch in home position to keep screen tight to wall
  • CableTrac System provides a fast and effective way to route cables
  • UL listed for proven strength
  • Swivel up to 90° left or right (depending upon screen size)
  • Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)


• Specifications:

  • Certifications: UL Listed
  • Color: Black
  • Lateral Shift: 12" (304.8mm)
  • Maximum Extension: 24.88" (632.mm)
  • Minimum Depth: 3.38" (85.9mm)
  • Mounting Pattern Compatibility (Universal Versions): 200 x 200mm - 862 x 517mm
  • Notes: Depth and Extension do not include interface bracket (adds 0.5 - 1.5")
  • Orientation: Landscape, Portrait
  • Overall Dimensions (H x W x D): 18.0" x 23.6" x 3.4" (457 x 600 x 86mm)
  • Post-Installation Leveling (Roll): Yes
  • Solution Type: Universal
  • Tilt: + 5° , - 15°
  • Typical Screen Sizes: 37 - 55"
  • Wall Stud Compatibility (inches): 16
  • Weight Capacity: 125 lbs (56.7kg)


• GTIN:

  0841872051581
