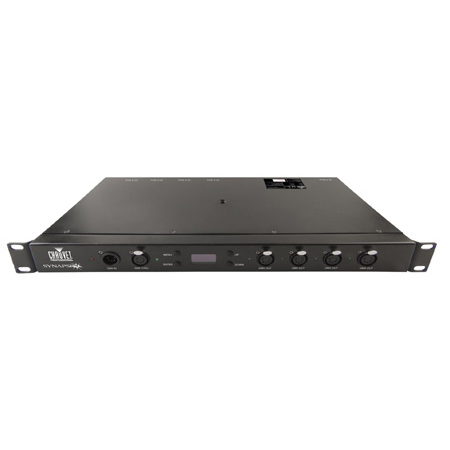

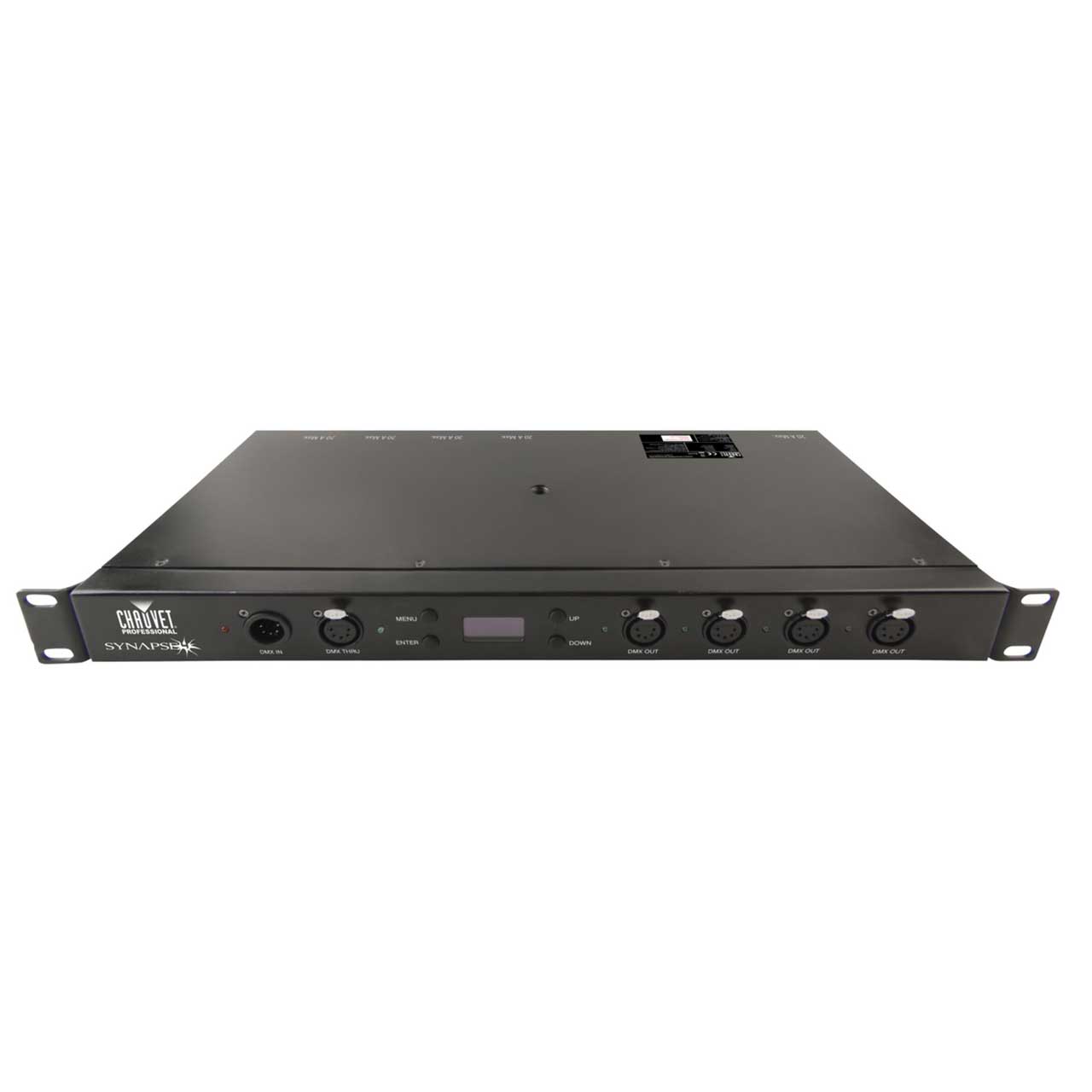

Chauvet SYNAPSE4 Synapse 4 Relay Pack

ITEM #: CHVT-SYNAPSE4 MFG #: SYNAPSE4

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$676.69

Our Price:

$600.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    SYNAPSE4 - Overview

    Chauvet's Synapse 4 functions as an intelligent relay pack to control the power sent to individual lighting units. Synapse 4 can de-power entire sections of an installation, which prolongs the lifespan of lighting fixtures and decreases overall power consumption, saving energy and money. Rack, truss or wall mountable, Synapse 4 also offers flexible options to control its four outputs: 1) via DMX; 2) upon sensing the loss of the DMX signal; 3) via an internal scheduler that can be used to specify that individual outputs be turned on/off. As an added convenience, a 4-port DMX opto-isolator allows users to easily branch their DMX universe in multiple directions and amplify the signal after a long cable run.

    • Features:

      • Controllable powerCON relay pack and DMX optically isolated splitter/amplifier
      • Compounds the savings of LED fixtures by completely removing power when not in use
      • Individually control all 4 relays via DMX, DMX sensing or internal scheduler for specific on/off times every day
      • Optically isolated 5-pin DMX splitter provides an easy hub for running DMX to multiple locations
      • Convenient mounting options; rack mount, wall mount or clamped to truss

    • Specifications:

      • Construction/Physical
      • Dimensions: 19 x 7.87 x 1.75 in
      • Weight: 6 lb
      • Exterior Color: Black
      • Rackmount: 1U

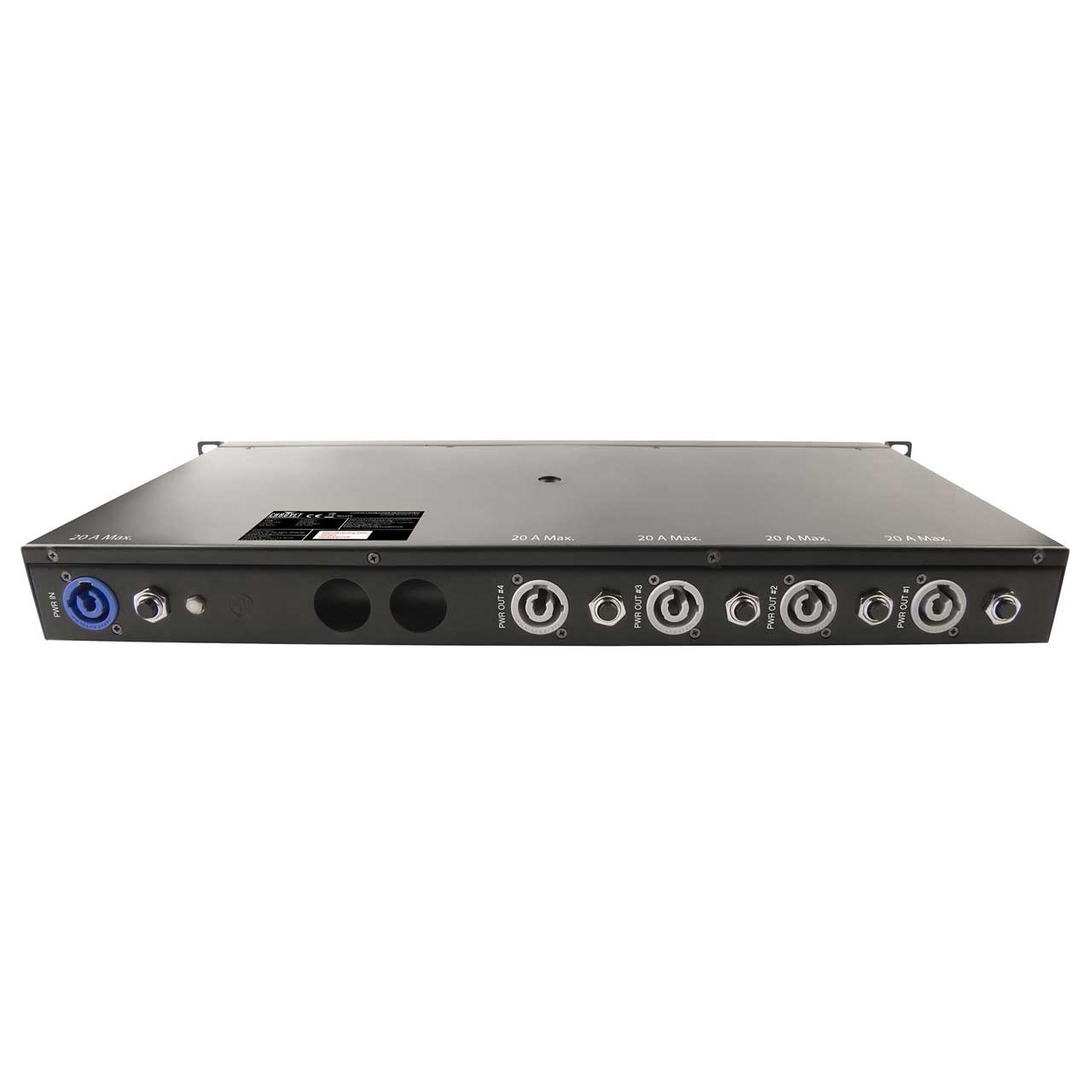

        Connections
      • Power Connection: Edison (Local) plug to Neutrik powerCON
      • Power Input: Neutrik powerCON
      • Power Output: Neutrik powerCON
      • Data Connectors: 5-pin XLR
      • Cable Length (power): 5 ft

        Control
      • Control Protocol: DMX
      • DMX Channels: 1 or 4

        Electrical
      • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
      • Main breaker size: 20 A, 250 V
      • Breaker size per output: 20A, 250 V

        Certifications/Qualifications
      • CE
      • IP Rating: IP20, dry location

    • Item Includes:

      • Synapse 4
      • Neutrik powerCON power cord
      • Warranty Card
      • Quick Reference Guide

    • GTIN:

      0781462214364
