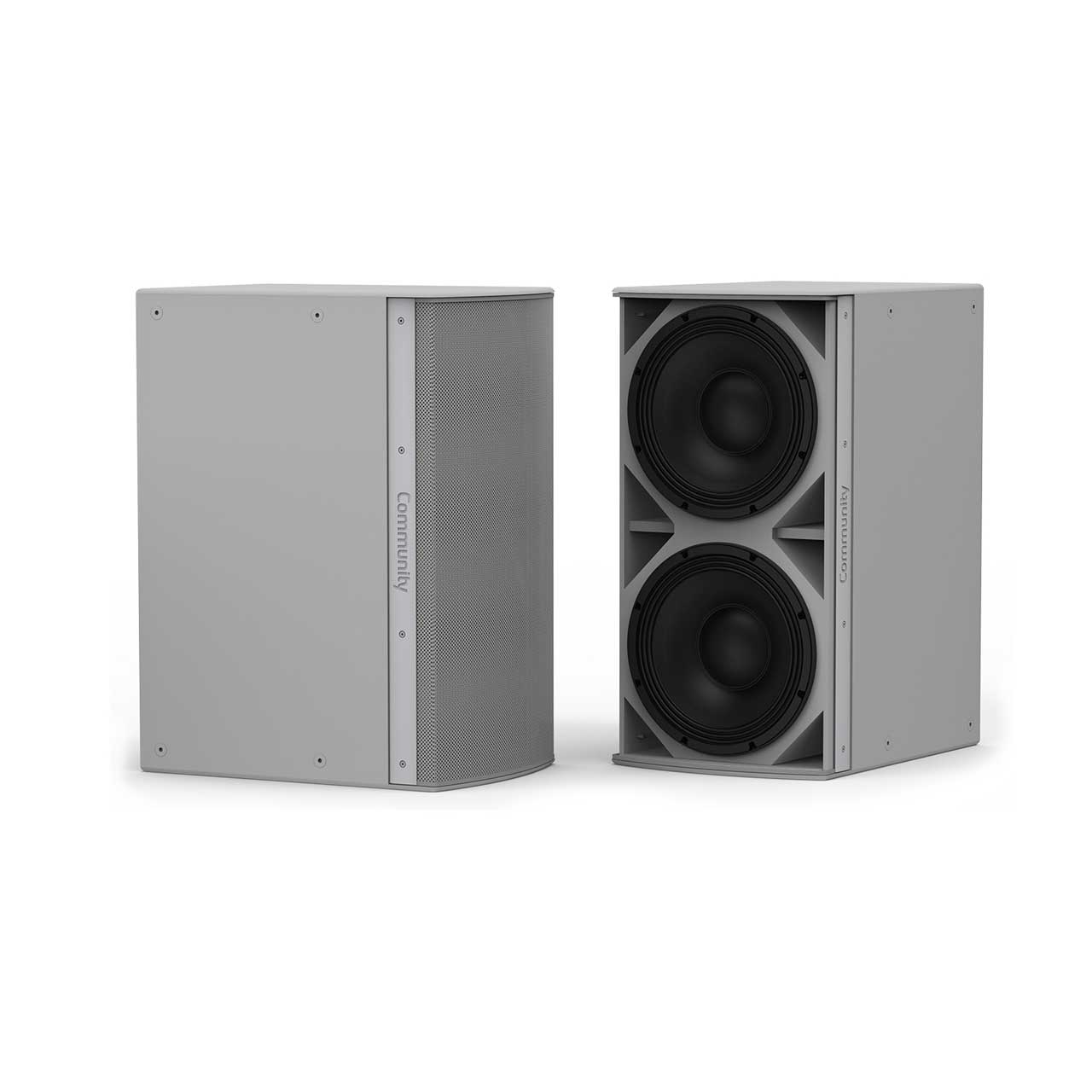

Community IS6-212W Medium Power Dual 12 Inch Subwoofer White

ITEM #: CMTY-IS6-212W MFG #: IS6-212W

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$2,862.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


IS6-212W - Overview

Your Voice Is always Stronger When You Have A Community Backing It Up!

I SERIES similar-sized rectangular enclosures, construction, finish and aligned suspension points for seamless flown array integration. Medium power, 700W(+) continuous power handling, ferrite woofers. User selectable single amp or dual amp operation on the dual subwoofer models. Rubber feet included for floor installation. Easily configured low profile rigging hardware available for multiple applications (see Accessories).

I SERIES Subwoofer 600 loudspeakers provide excellent acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, I SERIES Subwoofers provide a broad range of sizes and capabilities that can be specifically matched to the needs of any modern venue.

The compact, low-profile single driver I SERIES subwoofers are ideal for distributed or concealed sub-bass and are the perfect choice for ground stack applications. Additionally, each cabinet was carefully designed to provide matching face widths and suspension point locations for seamless integration into flown arrays with I SERIES full-range models when additional LF extension is needed but a compact appearance is required. The broad range of optional low profile fly rails, fly frames and modular array brackets reduces design and installation time while also providing improved aesthetics and nearly limitless integration possibilities.

The IS6-212 is a compact, direct radiating subwoofer with large, balanced ports that provide optimal enclosure tuning and even air pressure distribution to the driver cones, reducing distortion and extending system longevity. Drivers are loaded into individual air volumes within the enclosure, isolating their performance from one another. This arrangement not only provides additional protection to drivers in case of failures, but also allows the designer to implement directional subwoofer techniques, like steered end-fire arrays and cardioid patterns, within a single enclosure when using any I SERIES dual driver subwoofer model.

APPLICATIONS:
Houses of Worship
Auditoriums
Restaurants
Meeting Rooms
Theaters
Corporate A/V Systems
Arenas
Stadiums
Night Clubs
Theaters
Themed Entertainment/Amusement Parks

  • Features:

    • Long excursion ferrite LF drivers with FEA-optimized motors and symmetric movement suspension.
    • Matched-size enclosure and aligned suspension point for seamless flown array integration.
    • 1400W continuous power handling (5600W peak).
    • High sensitivity design minimizes power compression losses and required amplifier size.
    • Isolated driver air volumes allow use of directional steering techniques within a single enclosure.

  • Specifications:

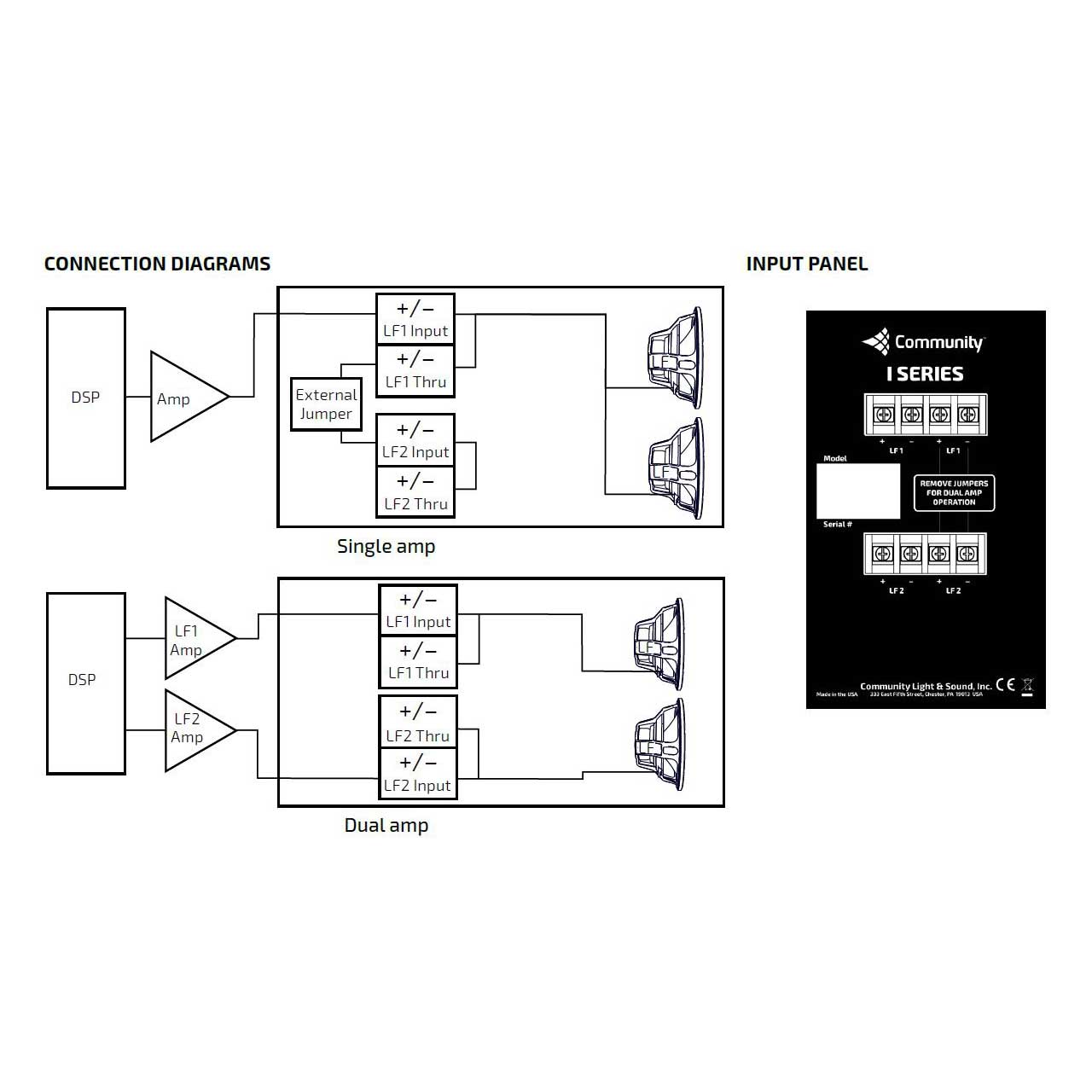

    • Operating Mode: Single or Dual Amp
    • Operating Environment: Indoor or Weather-Resistant Outdoor.
    • Operating Range: 38 Hz to 150 Hz
    • Transducers: 2 x 12" (300mm) double-treated cones with 4" (102mm) inner/outer wound voice coil, ferrite construction
    • Continuous Power Handling @ Nominal Impedance; Single Amp 75V 1400W @ 4 ohms (5600W peak), Dual Amp 75V 700W @ 8 ohms (2800W peak) (each).
    • Nominal Sensitivity: Half Space @ 1W 103 dB, @ 2.83V 106 dB, Whole Space @ 1W 97 dB, @ 2.83V 100 dB
    • Nominal Maximum SPL (Whole Space): Peak 132 dB, Continuous 126 dB, (Half Space) Peak 138 dB, Continuous 126 dB.
    • Equalized Sensitivity: Half Space @ 1W 99 dB, @ 2.83V 102 dB, Whole Space: @ 1W 93 dB, @ 2.83V 96 dB.
    • Equalized Maximum SPL: Half Space Peak136 dB, Continuous 130 dB, Whole Space Peak 130 dB, Continuous 124 dB.
    • Recommended Amplifiers: Single Amp 1400W - 2800W @ 4 ohms, (75V - 106V), Dual Amp 700W - 1400W @ 8 ohms, (75V - 106V) (each driver).
    • Input Connection: Indoor: (2) Screw terminal blocks (4-position),
    • Mounting Points: (24) M10 threaded rigging points, (23 in Outdoor model).
    • Environmental: Outdoor: IP55W per IEC 60529 , MIL-STD-810G
    • Weight: 101 lbs (45.8 kg) subwoofer only
    • Dimensions H x W x D 28.00" x 14.50" x 21.00 " (711 x 368 x 533 mm).

  • GTIN:

    0617174031268
