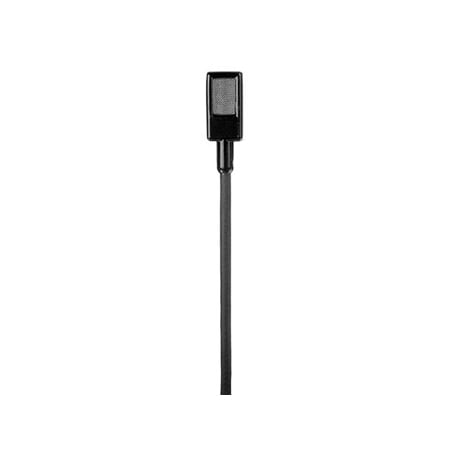

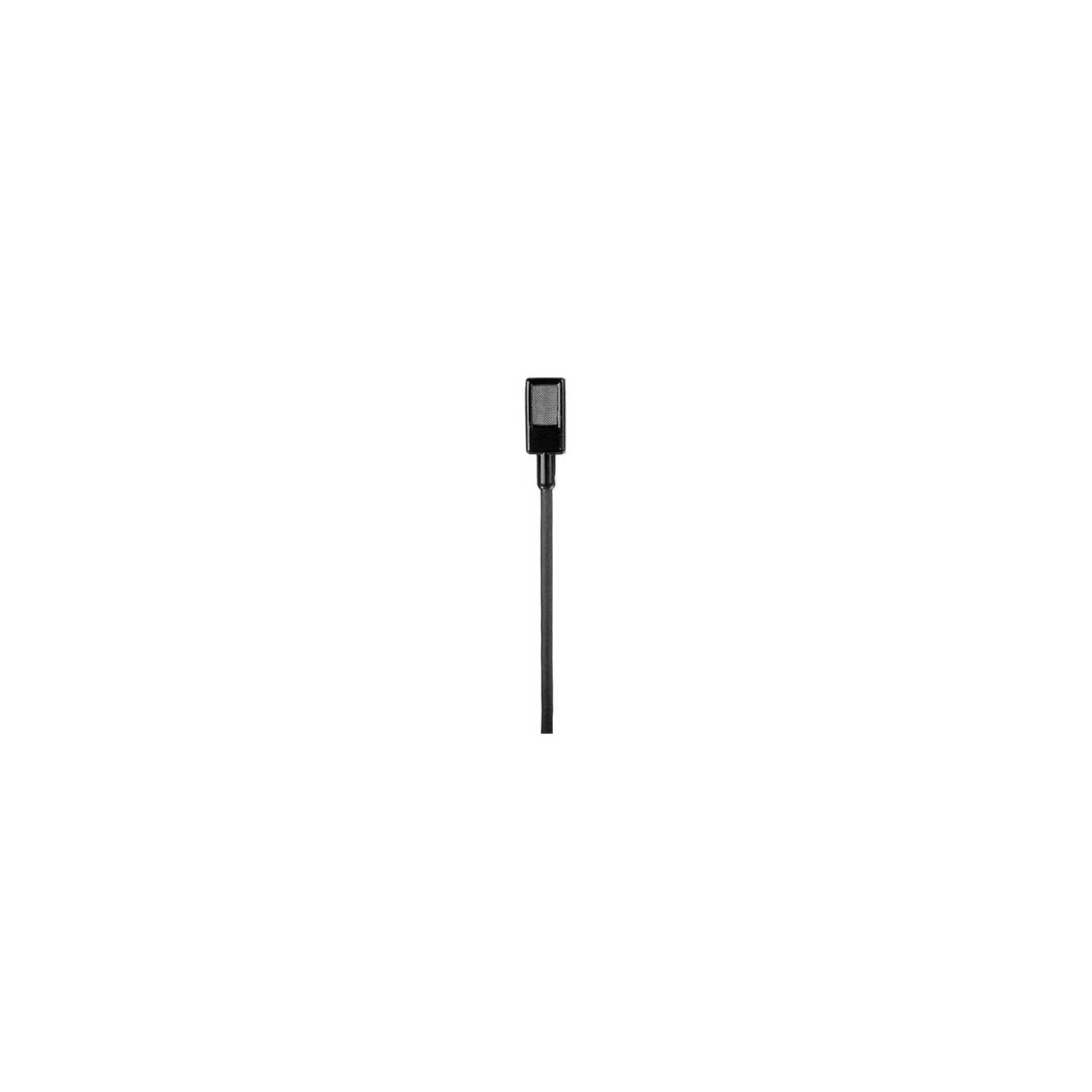

Countryman MEMWF05BSR EMW Omnidirectional Lavalier Microphone

MEMWF05BSR - Overview

• Features:

  • Minimize rubbing noise: We use a self-lubricating, low friction plastic for the EMW body, and mount the capsule perpendicular to the plane of vibration to minimize rubbing noise.
  • Rugged cable: Aramid strength members and engineered alloys ensure that our cables provide extreme tensile and flex strength.
  • True colors: Our colors are precision-matched to theatre makeup shades to blend with a wide range of skin tones and clothing.
  • Water resistance: Our mics are water-sealed so you can use them in the hair or against the skin under hot theater lights without "sweat-outs".


• Specifications:

  • Frequency Response: 20 Hz to 20 kHz
  • Sensitivity: 10 mV/Pascal
  • Equivalent Acoustic Noise: 24 dBA SPL
  • Output Impedance:
  • - 600 Ohms balanced for wired operation
  • - 1500 Ohms unbalanced for wireless
  • Overload Sound Level: 130 dB SPL @ 1% THD on 48 V Phantom (dependant on transmitter for wireless)
  • Power Requirements:
  • - Phantom: 6 to 50 Volts @ 4 mA
  • - Wireless: 1.5 to 24 Volts 400 uA
