Contemporary Research ICC1-IRX IR Display Controller - 1-Way RF

ITEM #: CRC-ICC1-IRX MFG #: ICC1-IRX

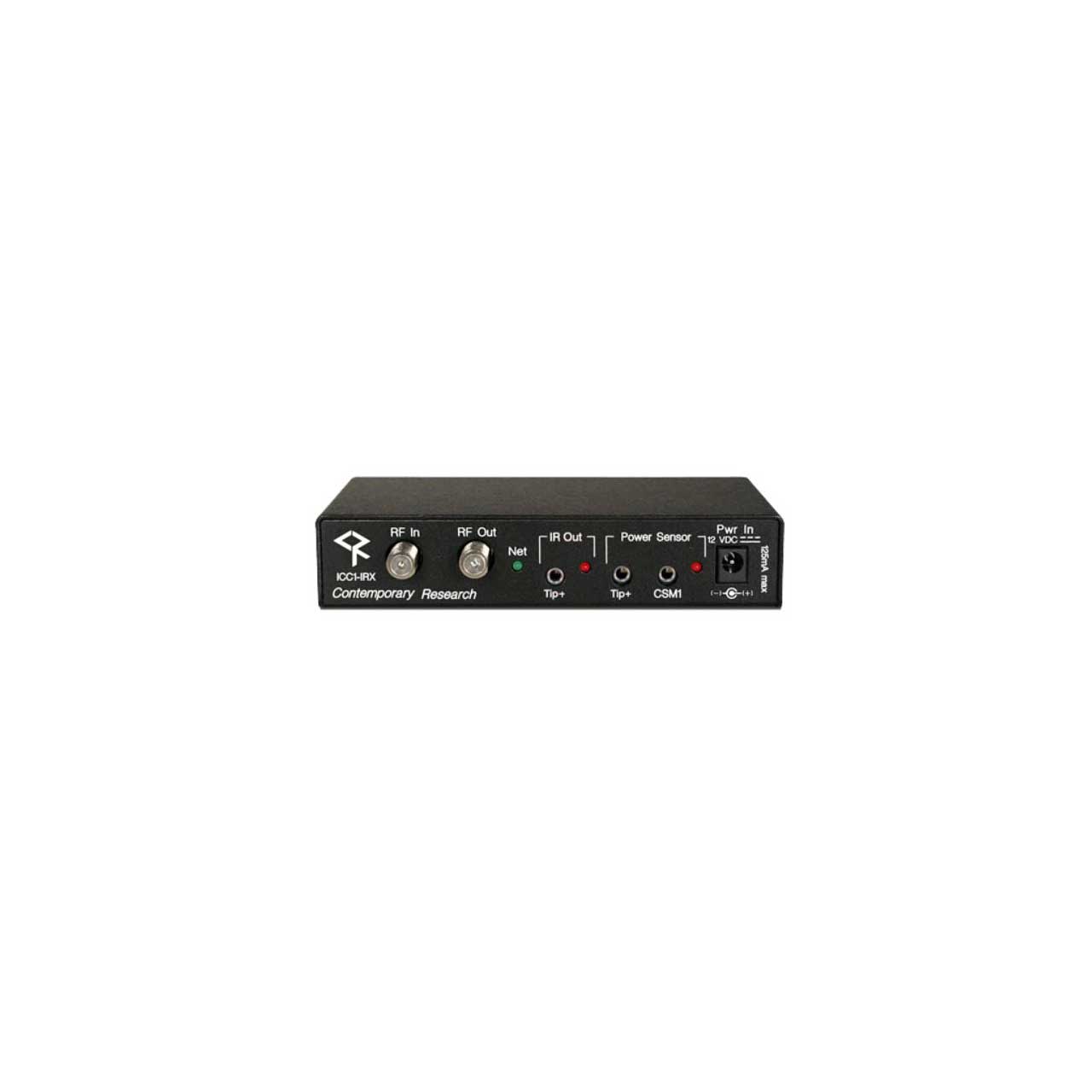

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$353.00

Our Price:

$300.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


ICC1-IRX - Overview

The new ICC1-IRX IR TV Controller delivers economical 1-way control for TV power, volume, and channels, receiving iCC-Net network commands over the same broadband coax that carries the CATV channels. Compact in size and price, the ICC1-IRX now features power current sensing using the optional CSM1 sensor from Xantech.

Controls most brands of IR-controlled TVs.

  • Features:

    • Manages channel access by changing the TV's internal available channel list
    • Delivers absolute power control using the Xantech CSM1 power current sensor
    • Networks up to 4,000 TVs through the ICE-HE Ethernet Head-End
    • Receives 1-way individual and zone commands from a single RS-232 port on the HE
    • Operates over same RF coax cable as CATV channels
    • Exclusive SmartZone architecture controls hundreds of controllers with a single command
    • Low-loss internal RF tap saves amplification and installation costs
    • Provides LED feedback for network, IR control, and power status
    • Restores all power and channel status after loss of power from data stored in non-volatile memory
    • Mounts on the back of the TV for simplified control and RF installation
    • Operates with Contemporary Research Display Express software as well as from RS-232 protocol from a custom-programmed PC or control system
    • Senses power status from optional CSM1 power current sensor, or optional CC-HSD scan sensor for older tube TVs

  • Specifications:

    • PHYSICAL
    • Size: 5.5" [140mm] wide x 1.1" [28mm] high x 3.4" [86mm] deep
    • Weight: 8 oz [226g]
    • Enclosure: All aluminum with durable black powder coat paint
    • Mounting: Mounts at rear of TV

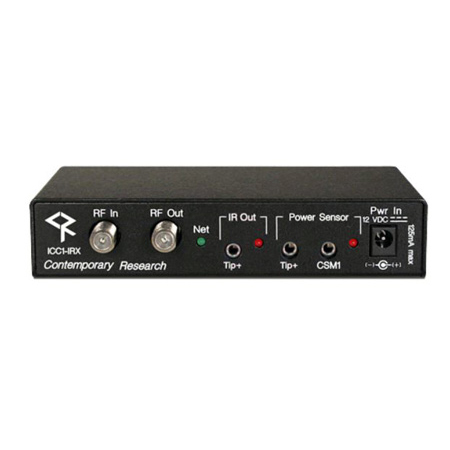

    • FRONT PANEL
    • RF In: 'F', female, 75 ohm impedance, RF from CATV system, iCC-Net control
    • RF Out:
    • - `F', female, 75 ohm impedance, RF to TV
    • - Low-loss internal tap - less than -1.5 dbmV loss
    • Net LED: Green LED for iC-Net bus and DC power, flashes once per second if active
    • IR Out:
    • - 3.5mm jack for CC-IRE IR Emitter cable or compatible CC-IRS serial cable
    • - Supports carrier frequencies up to 62 KHz
    • IR Out LED: Red LED lights when sending IR commands
    • Power Sensor:
    • - Tip+:3.5mm jack for included CC-HSD scan sensor or 5V logic-level input
    • - CSM: 3.5mm jack of Zantech CSM1 Power Current Sensor
    • - LED: Red LED lights when sensor indicates power on
    • Power In: 2.1mm coaxial jack (inside center conductor positive), 75 mA maximum
    • 11.5 to 16.5 VDC, 12 VDC typical (may be unregulated)
    • DIP Switches S1 and S2: Located on bottom of unit, sets IR code operation and device number
    • ICC-NET
    • Operation: 1-way control, carried over the same RF coax connection as TV channels
    • Data Receive: Mid-band VHF, 74.7MHz, sent from IC Head-End Network Controller , -25 to +35 dBmV signal level
    • CC-HSD SCAN SENSOR
    • Range: Senses presence of TV scanning, from 15-35 KHz, magnetic pick-up
    • Includes: 3.5mm plug, 4ft. cable, stick-on TV sensor

  • Item Includes:

    • CC-IRE IR Emitter
    • RF loop cable
    • Mounting Velcro
    • 12VDC power supply (U.S. only)
