2x CAT5e UTP & 2 x RG6/U Quad Shield with Data & Power Crestron Cable 500 Foot

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    2x CAT5e UTP & 2 x RG6/U Quad Shield with Data & Power Crestron Cable 500 Foot

    Item #: CREST-5   •   MFG #: CREST-5




    Share!

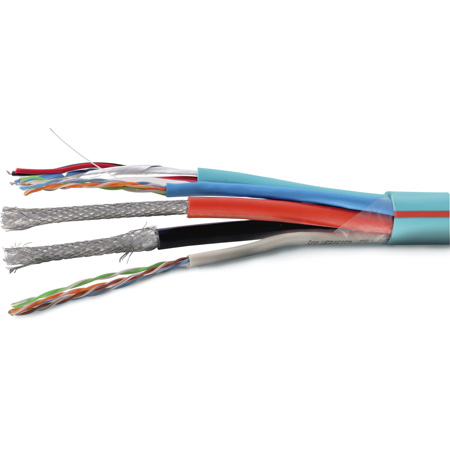

    Structured Cable CREST-5 Crestron Control Cable.

    STRUCTURED CABLE PRODUCTS - (1)2/18AWG + (1)2/22AWG SHIELD DATA LOW CAP W/DRAIN + (2)24AWG 4PR UTP CAT5E + (2) RG6U SC QUAD SHIELD


    • Features

      • UL listed NEC type CL2/CM
      • Bare copper stranded conductors
      • Temperature and voltage rating 75°C, 300V
      • Low capacitance rating on data pair
      • Data pairs shielded for lowest noise
      • Sequential footage marking
      • Color: Teal
      • LSZH Variation also available

    • Specifications

      • Data = 1 2-Conductor 22 AWG BC Stranded Shield with Drain
      • Power = 1 2-Conductor18AWG Stranded
      • Element 2: 4 Cat5e
      • 2 CAT 5E UTP Solid 350MHz LAN Cable 24AWG
      • Complies to TIA/EIA-568-B.2
      • 24AWG Solid Bare Copper Conductor/PE Insulation
      • RG6 18AWG x 2 (Black and Orange)
      • Overall Outer Jacket PVC
      • Diameter - 20mm
      • Characteristic Impedance 75 ±3ohm
      • Capacitance 55pF/m
      • Velocity Ratio 82%
      • DCR: conductor < 33ohm/km
      • DCR: shielding < 13 ohm/km
      • Sparker 4000 VCA
      • Dielectric Strength 2500 VCA
