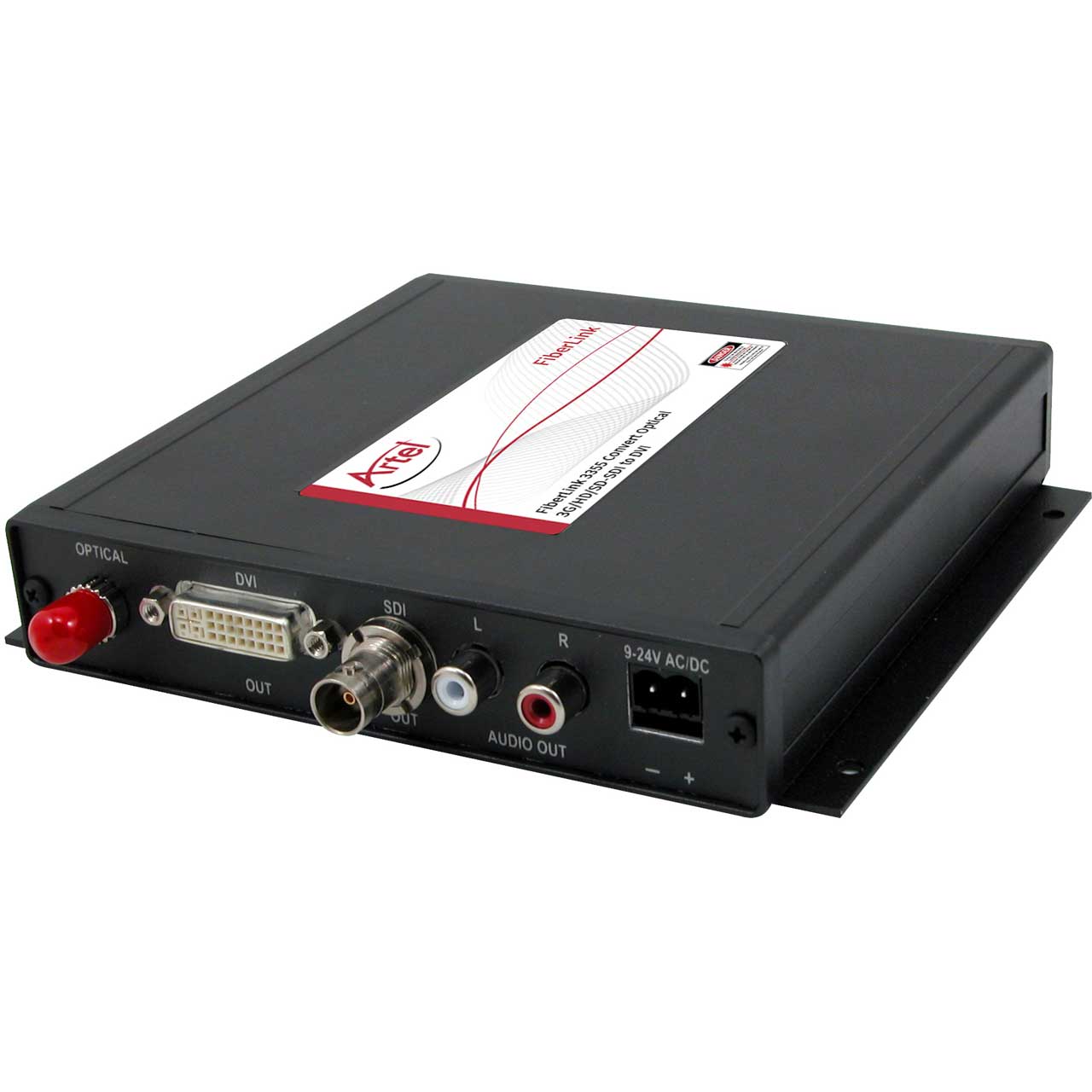

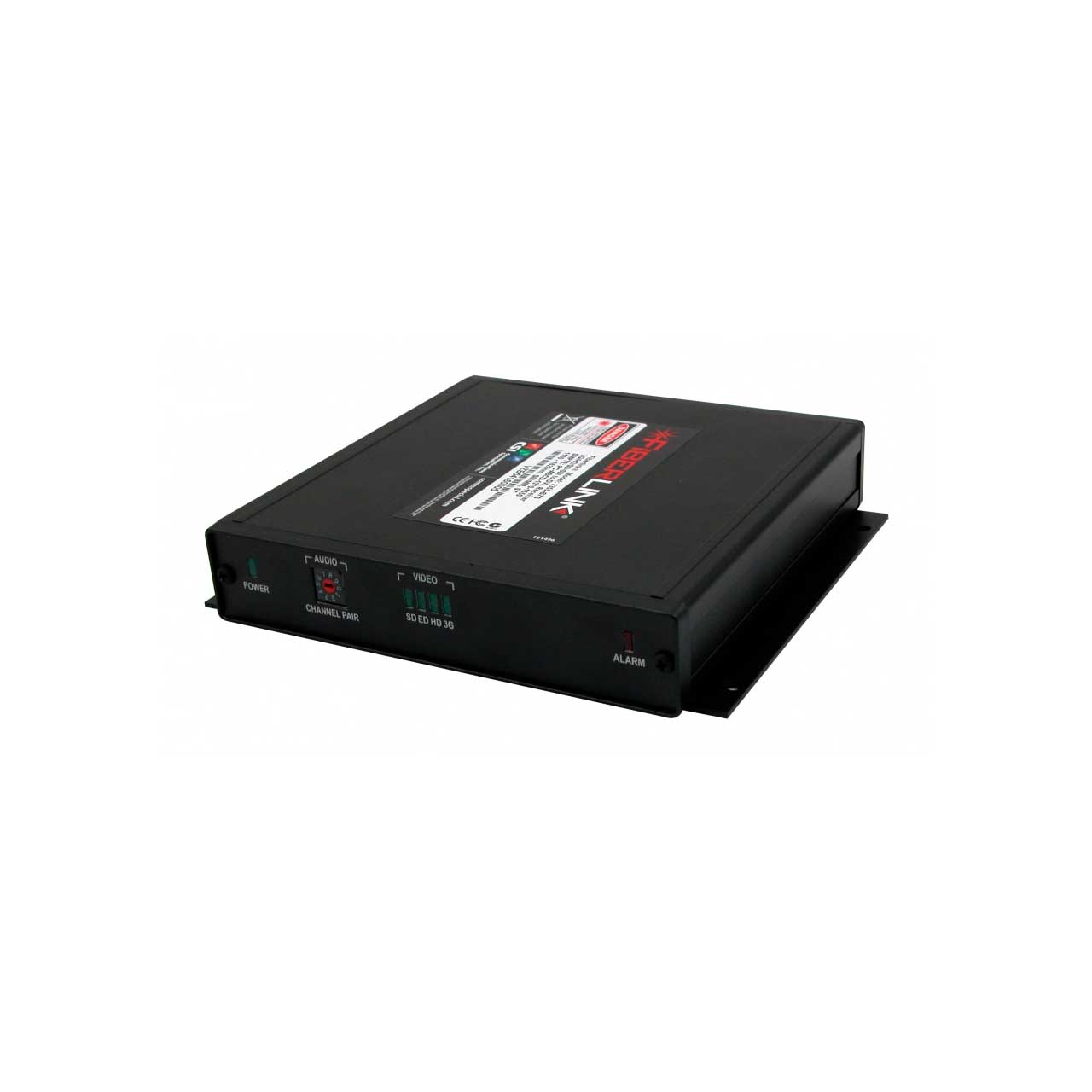

Artel FiberLink 3355-B7S 3G/HD-SDI to DVI 1310nm Box with ST Connectors - Receiver
  • Artel FiberLink 3355-B7S 3G/HD-SDI to DVI 1310nm Box with ST Connectors - Receiver
  • Artel FiberLink 3355-B7S 3G/HD-SDI to DVI 1310nm Box with ST Connectors - Receiver
  • Artel FiberLink 3355-B7S 3G/HD-SDI to DVI 1310nm Box with ST Connectors - Receiver


Artel FiberLink 3355-B7S 3G/HD-SDI to DVI 1310nm Box with ST Connectors - Receiver

Manufacturer: Artel Video Systems

Item #: CSI-3355-B7S   •   MFG #: 3355-B7S



This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email





Item unavailable. Please select another option.

Items similar to the CSI-3355-B7S





No longer do you need to purchase expensive 3G/HD/SD-SDI displays!

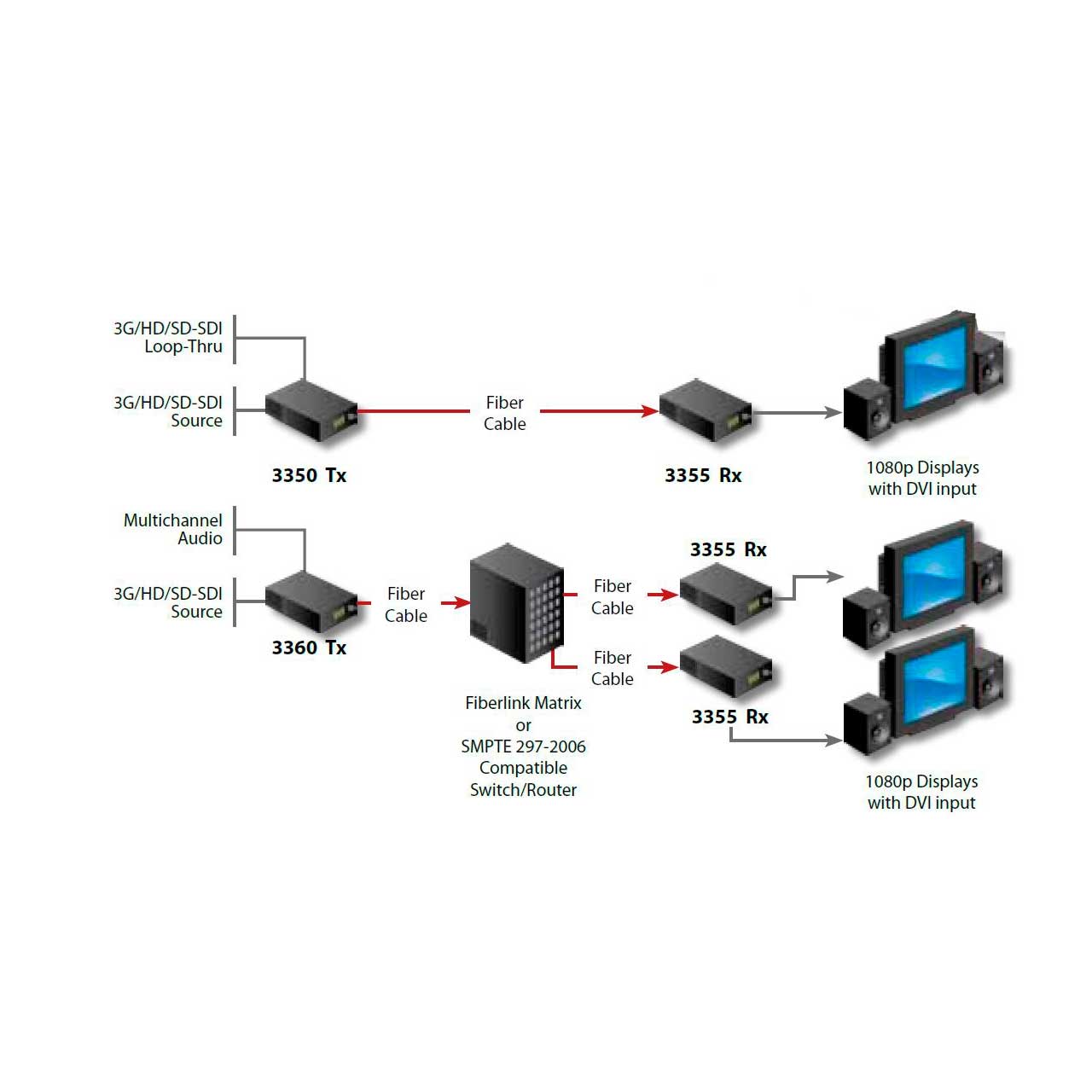

The Fiberlink 3355 Series receives SMPTE standard 3G, HD or SD-SDI signals transmitted from the Fiberlink 3350, Fiberlink 3360, or Fiberlink 3380 Series transmitters, with or without embedded audio, and converts the baseband output to DVI. The Fiberlink 3355 receiver provides an independent audio output providing you with the ability to separate your audio and video signals.

The Fiberlink 3555 operates with both single mode and multimode fiber and can be configured with an ST connector or an LC connector

Standard features include a re-clocked 3G/HD/SD-SDI output for continuous signal distribution.

All Fiberlink 3G/HD/SD-SDI products are compliant with SMPTE 297-2006 and has the ability to operate seamlessly with Fiberlink Matrix and other SMPTE 297-2006 fiber optic compliant devices.

All Fiberlink 3G/HD/SD-SDI products are immune to pathological signals over the entire budget link and operating temperature range and operate with both single mode and multimode fiber types.

With a small footprint box, it is ideal for confidence monitoring, broadcast or corporate studios, OB trucks, digital signage, rental and staging, auditoriums, stadiums and theaters, large venue projector installations, airport or transportation hubs, distance learning, surgical or medical imaging and more!


  • Features

    • Convert 3G/HD/SD-SDI with embedded audio to DVI with audio pair selection.
    • Supports all SD and HD resolutions to 1080p/60.
    • Fully SMPTE 297-2006 compliant fiber input.
    • DVI and stereo line level outputs (if audio present in SDI stream).
    • Re-clocked SDI BNC output allows for continuous 3G/HD/SD-SDI signal distribution.
    • User selection from up to 8 audio channel pairs for multilingual or
    • multimessage support.
    • Automatic selection of output resolution - no scaling.
    • ST and LC fiber connector options.
    • Supports single mode and multimode fiber types.
    • Small compact design.
    • Compatible with Fiberlink 3350, 3360 & 3380 Series, Fiberlink Matrix and Scan Do HD's optical output.
    • All Fiberlink 3G/HD/SD-SDI products are compliant with SMPTE 297-2006 a has the ability to operate seamlessly with Fiberlink Matrix and other SMPTE 297-2 compliant devices.
    • All Fiberlink 3G/HD/SD-SDI products are immune to pathological signals over the entire budget link and operating temperature range.

  • Specifications

    • Fiber Optic Input:
    • SMPTE 297-2006 Labeling: PC-ABCD-1310-1550,
    • Connector: LC receptacle, PC polish or ST,
    • Wavelength: 1100 - 1620 nm,
    • Minimum Input Sensitivity: 17 dBm at 2.97 Gbps, 20 dBm at 1.485 Gbps, -21 dBm at 270 Mbps.
    • Maximum Input Power: 0 dBm.
      Video Output:
    • Number of Outputs: 1.
    • Connector Type: DVI-I Female (Digital output only).
    • Signal Format: Single link DVI, RGB or YCrCb as negotiated with display.
    • Resolutions Supported: SD: 483i/59.94, 576i/50, ED: 480p/59.94/60, 576p/50, HD: 720p/50/59.94/60, 1080i/50/59.94/60, 1080p/23.98/24/25/29.97/30, 1080p/25PsF/29.97PsF/30PsF, 3G: 1080p/50/59.94/60, Note: Resolutions actually displayed on the DVI monitor connected to the DVI output will depend on the specific resolutions and refresh rates supported by that particular monitor.
    • 3G/HD/SD-SDI Output: Standard, Follows fiber optic input.
    • HDCP Compatibility: Yes. SDI signals, by definition, are not encrypted.
      Audio Output:
    • Number of Audio Channels: 2 channels, unbalanced, line level.
    • Audio Connector: RCA Jacks.
    • Switches: Front panel selection of one of 8 audio channel pairs on SDI signal to output.
    • NOTE: Audio is extracted from audio embedded within SDI signal in
    • accordance with SMPTE standards.
      3G/HD/SD-SDI Output:
    • Signal Level: 800mV ± 10%.
    • DC Offset: 0V ± 0.5V.
    • Rise/Fall Time: < 135 ps at 2.97 Gbps per SMPTE 424M-2006, < 270 ps at 1.485 Gbps per SMPTE 292, 0.4 ns to 1.5 ns at 270 Mbps
    • per SMPTE 259M.
    • Overshoot: < 10% of amplitude.
    • Timing Jitter: < 0.2 UI at 270 Mbps; < 1.0 UI at 1.485 Gbps; < 2.0 UI at 2.97 Gbps with color bar signal.
    • Alignment Jitter: < 0.2 UI at 270 Mbps; < 0.2 UI at 1.485 Gbps; < 0.3 UI at 2.97 Gbps with color bar signal.
    • Re-clocking: At 270 Mbps, 1.485 Gbps & 2.97 Gbps.
    • Compliance: SMPTE 259M, 292, 424M-2006.
