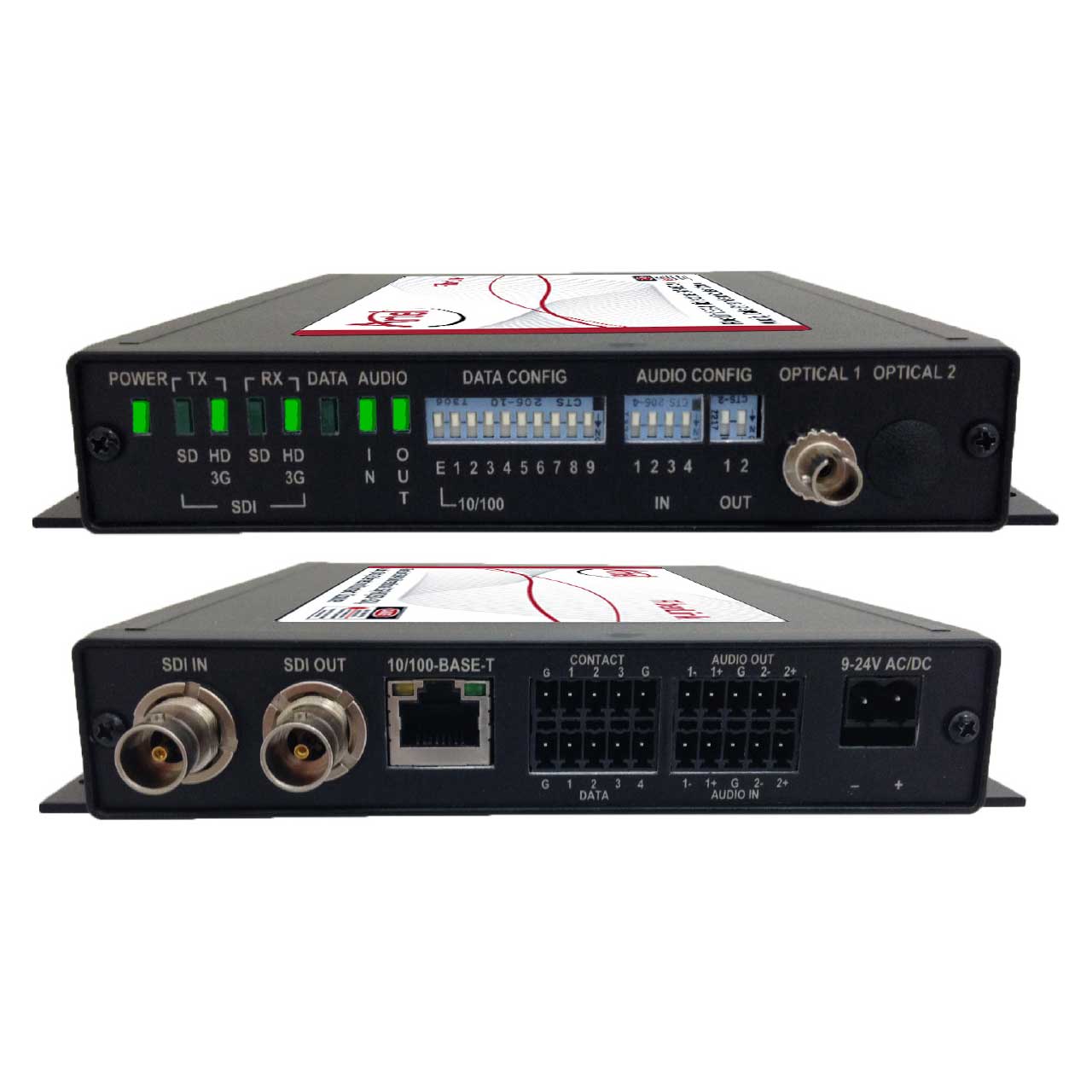

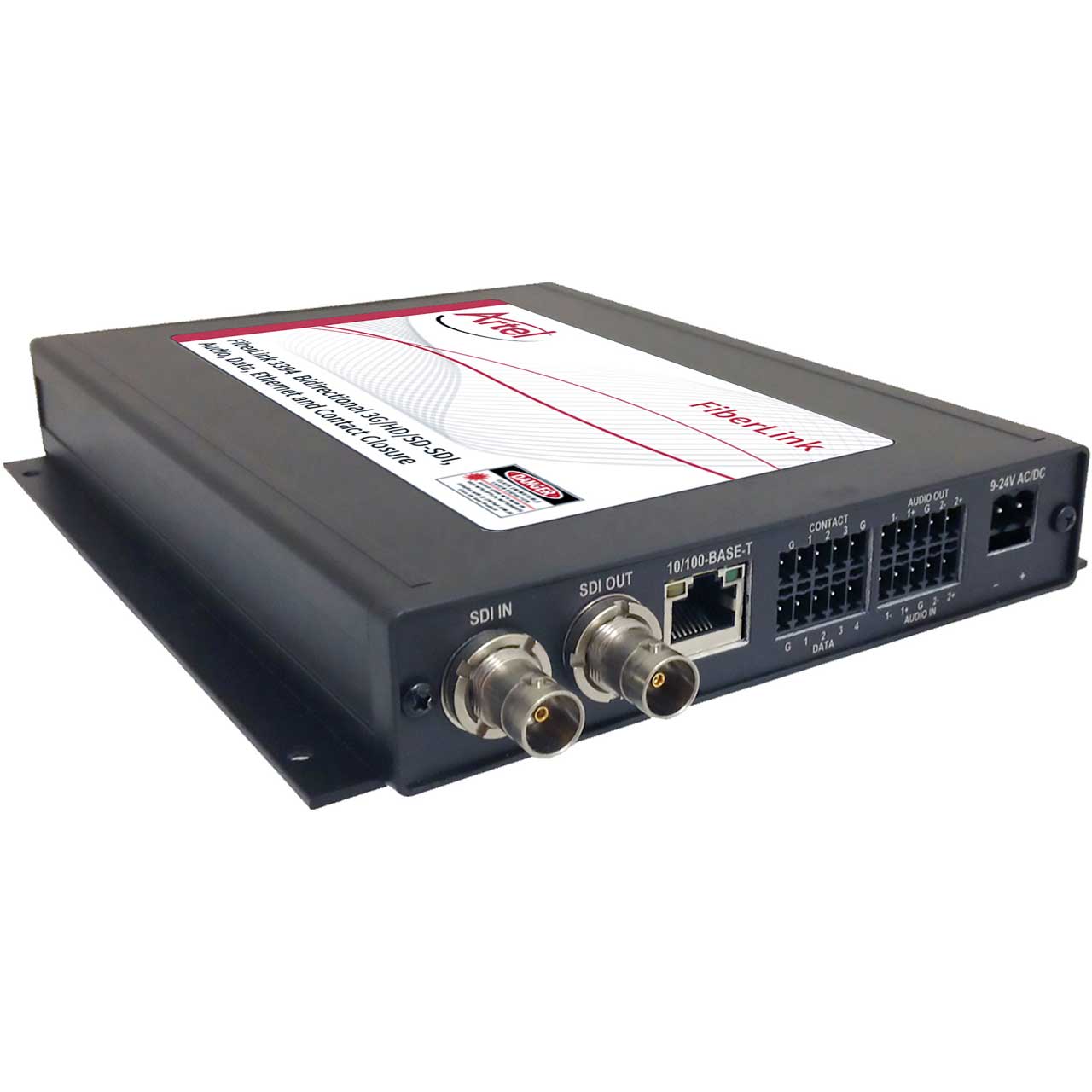

Artel FiberLink 3394-B7S Bidirectional 3G-HD/Audio/Ethernet/Data Singlemode 1 Fiber Box with ST Connectors - Transceiver

ITEM #: CSI-3394-B7S MFG #: 3394-B7S

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$6,044.50

Our Price:

$5,220.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    3394-B7S - Overview

    The Artel Fiberlink® SDI Flex 3394 Series, is a versatile broadcast quality fiber optic solution allowing you to transmit bidirectional 3G, HD or SD-SDI as per SMPTE 424M-2006, 292 and 259 as well as DVB-ASI. If you have previously embedded audio or data into your SDI signal, the SDI Flex will retain the audio and data, bit-for-bit, throughout the entire transmission process.

    In addition to pristine, broadcast quality SDI, the Fiberlink SDI Flex 3394 can transmit bidirectional audio, RS-Type data, Ethernet and even contact closure! Best of all, all channels are independent and available simultaneously!

    And the SDI Flex 3394 supports: ST connectors, transmission over one or two single mode fibers.

    To ensure signal integrity, all signals are equalized prior to fiber optic transmission and re-clocked on the receiver. Both the transmitter and receiver are immune to pathological signals over the entire budget link and operating temperature range.

    Available in card versions and a small footprint box version, it is ideal for broadcast or corporate studios, OB vans, rental and staging, auditoriums, stadiums and theaters, airport or transportation hubs, distance learning, surgical or medical imaging and more!

    • Features:

      • 3G/HD/SD-SDI - This product supports SMPTE complaint 3G, HD and SD-SDI data rates.
      • Bidirectional Audio - This product supports sending two pairs of independent audio, one in each direction.
      • 10/100 Ethernet - This product transmits and receives 10/100 Ethernet.
      • RS-Type Data - This product transmits and receives RS-Type data.
      • Bidirectional Contact Closure - This product supports bidirectional contact closure.
      • This product comes in a version that supports Single Mode Fiber.
      • Box and Card - This product is available in a box or card configuration.
      • ST Connectors

    • Specifications:

      • Audio Connector: Screw Terminal Block
      • Audio Noise Level: -85 dBm
      • Audio To Video Diff. Delay (SKEW): <300 usec
      • Bits Per Sample/Sampling Rate: 24 bits, 52 kHz
      • Channel Phase Differential: ±0.1 °
      • Crosstalk: -100 dBm (1 kHz)
      • Input Impedance: 600 ohms terminated>24K ohms unterminated
      • Number Of Audio Channels: 2, balanced or unbalanced
      • Output Impedance: 50 ohms nominal
      • Receiver Output Gain: +0 dB or +6 dB; switch selectable
      • Signal To Noise Ratio (A-Weighted): 95 dB referenced full scale (balanced)
      • Switches: Select input terminationBalanced or unbalanced input/output, selectable on a per-channel basisOutput gain boost +0dB or +6 dB
      • System Gain: Unity Gain, ±3%
      • Input: balanced 600 ohms, 50 ohms source impedence
      • Output: balanced into 600 ohms, gain boost 0 dB.
      • THD: 0.002%, 20 Hz - 20 kHz, full scale

      • Contact Closure Specifications
      • Contact Closure Connectors: Removable terminal block
      • Contact Closure Input: Dry contact or TTL level referenced to GND
      • Contact Closure Output: Isolated reed relay contacts115 Volts AC; 50/60 Hz @ 0.2 A or 24 Volts DC @ 1 A

        Data Specifications
      • Control Format: Switch selectable RS-232, RS-422 & RS-485 (4 wire or 2 wire)
      • Data Bandwidth: DC to 115 Kb/sec, max
      • Data Channels: 1 Channel, Bi-directional
      • Protocols: NRZZ, NRZI, RZ, Manchester, Bi-phase
      • Signal Connectors: Removable terminal block

        Ethernet Specifications
      • Port: 10/100 Base-T, RJ-45 connector, Configured as MDI
      • Speed: 10 Mbps and 100 Mbps Ethernet, switch selectable

        General Specifications
      • Box Version Dimensions: 6.5 W x 1.15 H x 8 L (in), 165 W x 29 H x 203 L (mm)
      • Indicators: Power, Data Rate lock (3G, HD, SD/DVB-ASI), Audio Activity, RS-Data Activity, Ethernet LEDs on RJ45 Connector
      • MTBF: 27,000 Hours
      • Number Of Fibers Required: 3394/3395: 1 3396/3397: 2
      • Operating Temperature: -10 ° C to +50 ° C
      • Power: 9-24 volts, AC or DC,7.5 watts, 25.6 BTU/Hr
      • Slots In 6000A Card Cage: 2
      • Weight: approx. 1lb.; 0.45kg

        Receiver: Optical Input
      • Connector: ST
      • Maximum Input Power: 0 dBm
      • Minimum Input Sensitivity:
        -17 dBm at 2.97 Gbps;
        -19 dBm at 1.485 Gbps
        -19 dBm at 270 Mbps;
      • Wavelength: 1100 - 1620 nm

        Receiver: Serial Video BNC Output
      • Alignment Jitter:
      • < 0.2 UI at 270 Mbps;
        < 0.2 UI at 1.485 Gbps;
        < 0.3 UI at 2.97 Gbps with color bar signal
        DC Offset: 0V ± 0.5V
      • Number Of Outputs: 1
      • Overshoot: < 10% of amplitude
      • Re-Clocking: At 270 Mbps, 1.485 Gbps & 2.97 Gbps
      • Rise/Fall Time:
        < 135 ps at 2.97 Gbps per SMPTE 424M-2006;
        < 270 ps at 1.485 Gbps per SMPTE 292;
        0.4 ns to 1.5 ns at 270 Mbps per SMPTE 259M
      • Signal Level: 800mV ± 10%
      • Timing Jitter:
        < 0.2 UI at 270 Mbps;
        < 1.0 UI at 1.485 Gbps;
        < 2.0 UI at 2.97 Gbps with color bar signal

        Transmitter: Optical Output
      • Connector: ST
      • Emitter Type: Laser
      • Output Power (Nominal): -3.0 dBm
      • Re-Clocking: At 270 Mbps, 1.485 Gbps & 2.97 Gbps

        Transmitter: Serial Video BNC Input
      • Data Rate Range: 19.4 Mbps to 2.97 Gbps
      • Equalization: Automatic up to 100m of Belden 1694A at 3.0 Gbps, 200m at 1.485 Gbps and 350m at 270 Mbps
      • Number Of Inputs: 1
      • Re-Clocked Data Rates:
        270 Mbps (SMPTE 259M, DVB-ASI-270)
        1.485 Gbps (SMPTE 292),
        2.97 Gbps (SMPTE 424M-2006)
      • Return Loss: >10dB up to 2.97 Gbps
      • Supported Standards: SMPTE 259M, 292, 424M-2006, 305M, 310M, 344M, DVB-ASI
