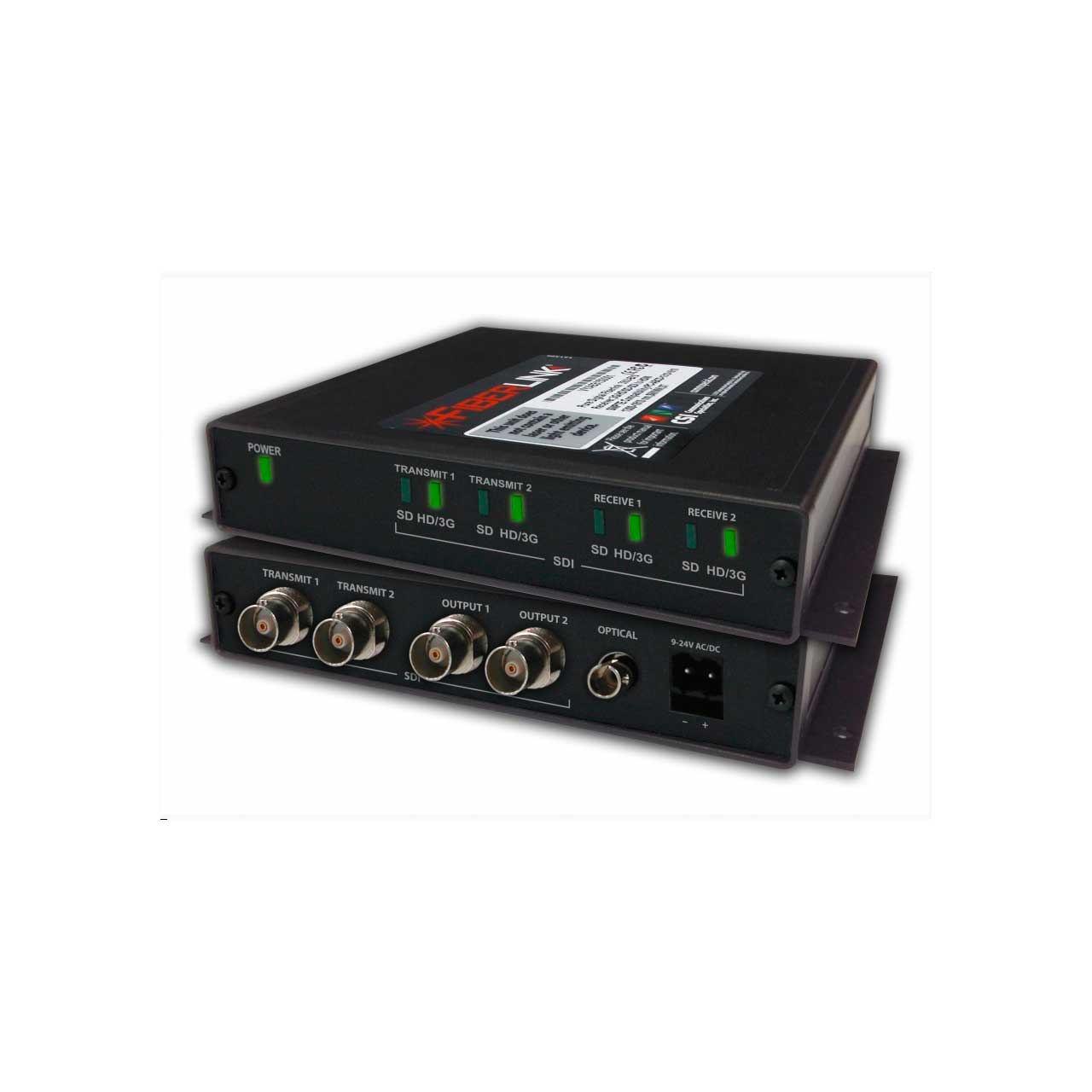

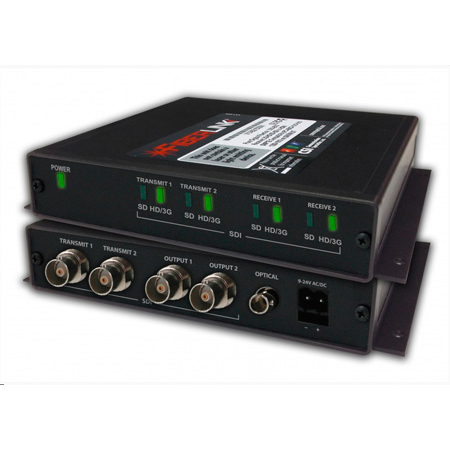

Artel FiberLink 3518-B9S Singlemode 4-CH Bidirectional 3G-HD with 4K/UHD-30 Support - Box with ST Connectors - Transmit

3518-B9S - Overview

• Features:

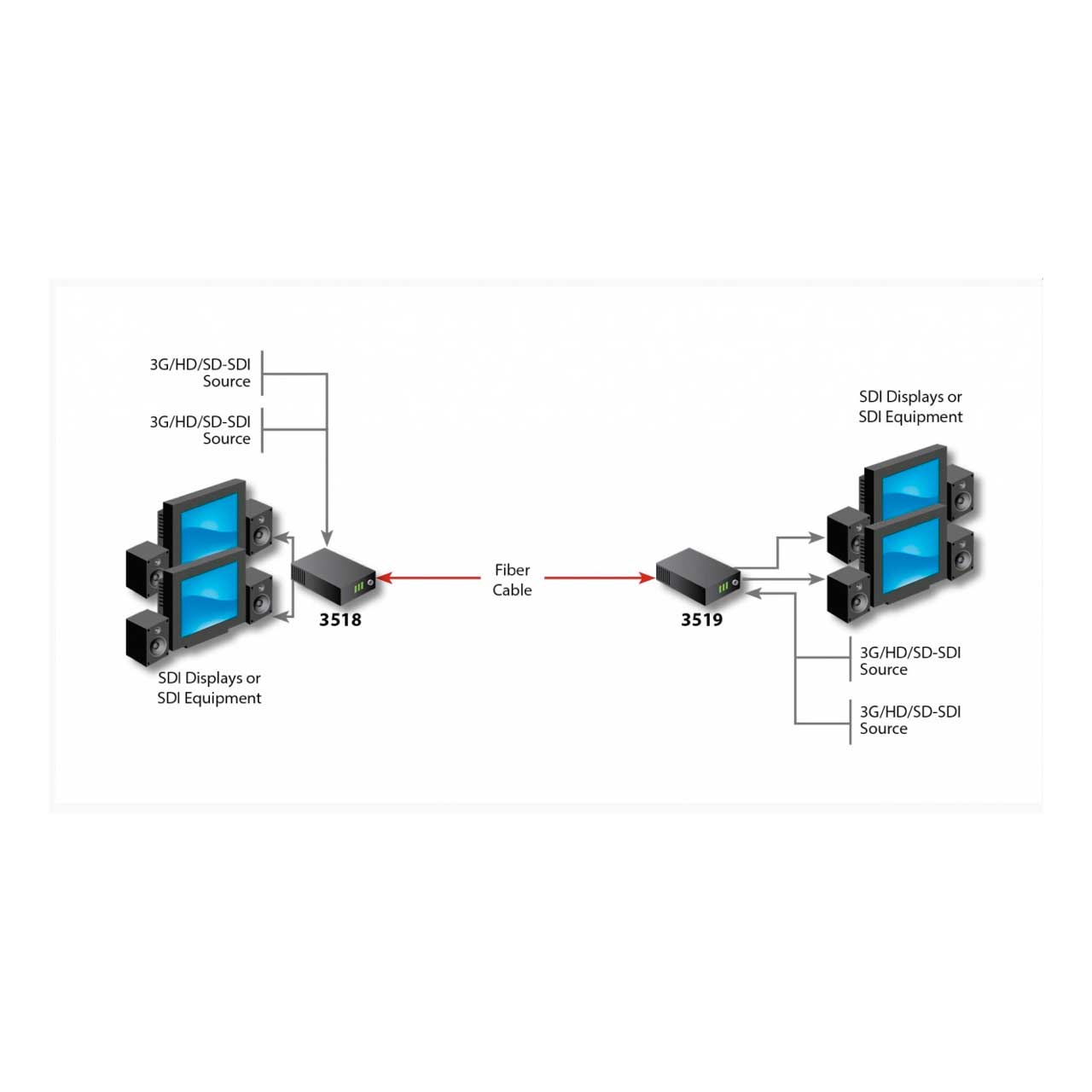

  • Supports 4 Channels: two upstream, two downstream
  • Signals are equalized and re-clocked prior to fiber optic transmission
  • Re-clocked SDI output
  • Immunity to pathological patterns over entire link budget and operating temperature range
  • Compliant with SMPTE ST 425-3, 259M-2006, 292-2006, 424M-2006
  • Supports transmission of SMPTE 305M-2005, 310M-2004, 344M-2000, DVB-ASI
  • Available in both Single Mode and Multimode (62.5u & 50u) versions
  • Supports 3G/HD/SD-SDI inputs with or without embedded audio and data
  • 19 dB Optical Link Budget @ 2.97 Gbps for High Power, Longer Distance version
  • Wide operating temperature range: -10° C to +50° C
  • Compatible with all CSI SDI transmitters and receivers using CSI CWDM products
  • Available in Box and Card versions
  • Card version compatible with the Fiberlink 6000A Rack Card Cage
  • Designed and Manufactured in the USA by CSI


• Specifications:

  • Fiberlink 3518/3519 Transmitter Specifications
  • Serial Video BNC Input
  • Number of Inputs: 2
  • Data Rate Range: 19.4 Mbps to 2.97 Gbps
  • Supported Standards: SMPTE ST 425-3, 259M, 292, 424M-2006, 305M, 310M, 344M, DVB-ASI
  • Re-clocked Data Rates: 270 Mbps (SMPTE 259M, DVB-ASI-270), 1.485 Gbps (SMPTE 292), 2.97 Gbps (SMPTE 424M-2006)
  • Equalization: Automatic up to 100m of Belden 1694A at 3.0 Gbps, 140m at 1.485 Gbps and 180m at 270 Mbps
  • Return Loss >10dB up to 2.97 Gbps


  • Optical Output
  • Connector: ST
  • Wavelengths: 1510, 1530, 1550, 1570 (nominal)
  • Emitter Type: DFB Laser
  • Output Power: (nominal) +2 dBm
  • Re-clocking: At 270 Mbps, 1.485 Gbps & 2.97 Gbps


  • Fiberlink 3518/3519 Receiver Specifications
  • Fiber Optic Input
  • Connector: ST
  • Wavelength: 1100 - 1620 nm
  • Minimum Input Sensitivity:
  • -17 dBm at 2.97 Gbps
  • -20 dBm at 1.485 Gbps
  • -21 dBm at 270 Mbps
  • Maximum Input Power: -1 dBm


  • Serial Video BNC Outputs
  • Number of Outputs: 2
  • Signal Level: 800mV ± 10%
  • DC Offset: 0V ± 0.5V
  • Rise/Fall Time:
  • < 135 ps at 2.97 Gbps per SMPTE 424M-2006;
  • < 270 ps at 1.485 Gbps per SMPTE 292;
  • 0.4 ns to 1.5 ns at 270 Mbps per SMPTE 259M
  • Overshoot < 10% of amplitude
  • Timing Jitter < 0.2 UI at 270 Mbps; < 1.0 UI at 1.485 Gbps; < 2.0 UI at 2.97 Gbps with color bar signal
  • Alignment Jitter < 0.2 UI at 270 Mbps; < 0.2 UI at 1.485 Gbps; < 0.3 UI at 2.97 Gbps with color bar signal
  • Re-clocking At 270 Mbps, 1.485 Gbps & 2.97 Gbps


  • Fiberlink 3518 & 3519 General Specifications
  • 4K / UHD Support up to 30 fps using 2 inputs
  • Link Timing Difference: 0.3nS/km of fiber
  • Indicators:
  • Power, Data Rate lock
  • (SD, HD/3G)
  • Box Version Dimensions:
  • 6.5 W x 1.15 H x 6 L (inches)
  • 165 W x 29 H x 152 L (mm)
  • Weight: 12.3 ounces, 382 grams
  • Slots in 6000A Card Cage: 2
  • Power:
  • 9-24 volts, AC or DC,
  • 3518: 5.0 watts, 17.66 BTU/Hr
  • 3519: 4.0 watts, 13.64 BTU/Hr
  • Operating Temperature: -10° C to +50° C
  • MTBF: 72,000 Hours
