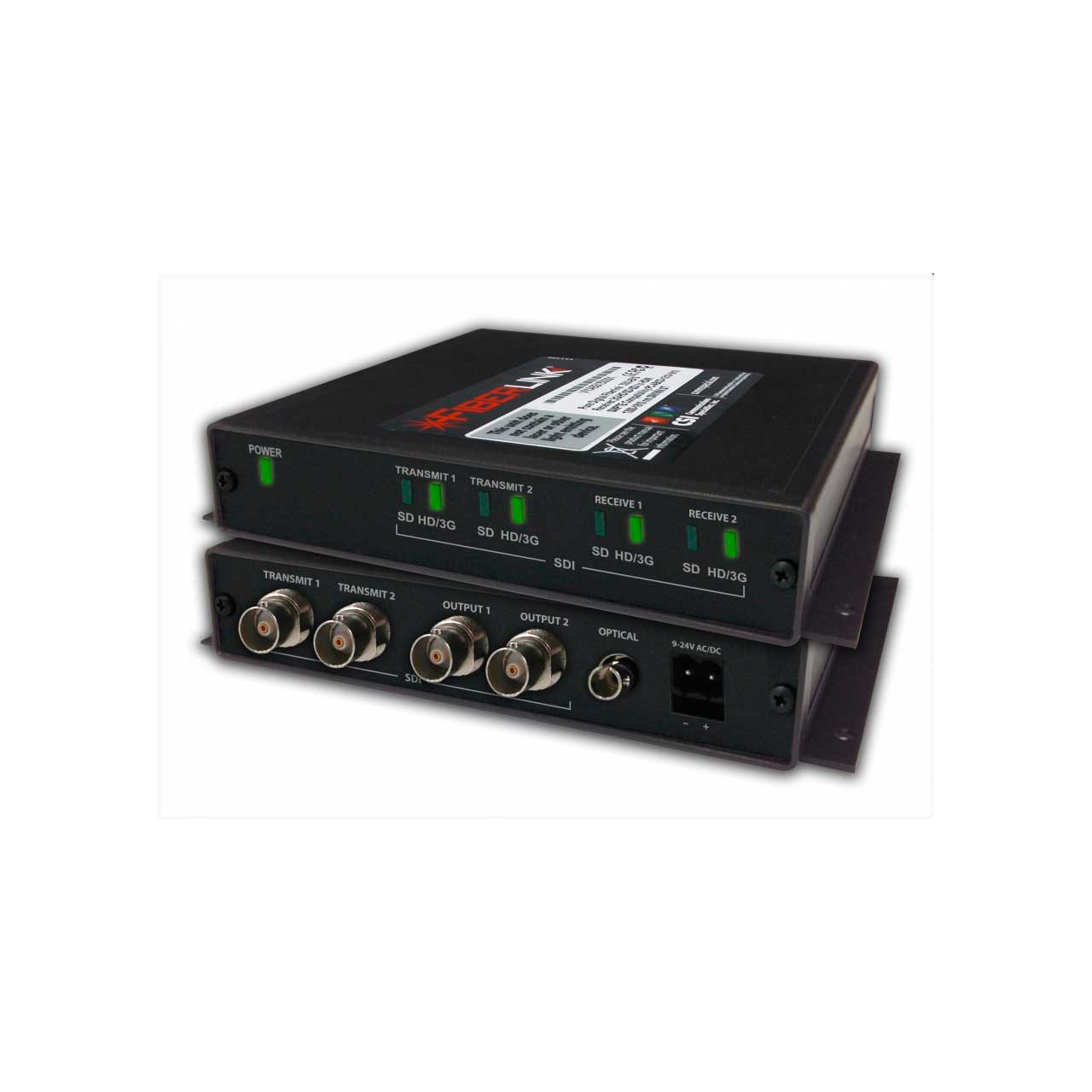

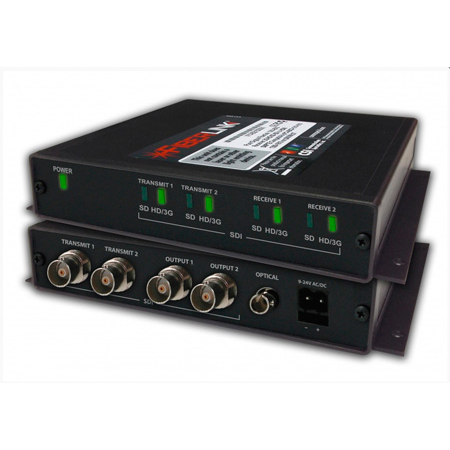

The Fiberlink 3519 is the receiver unit for use with the Fiberlink 3518.

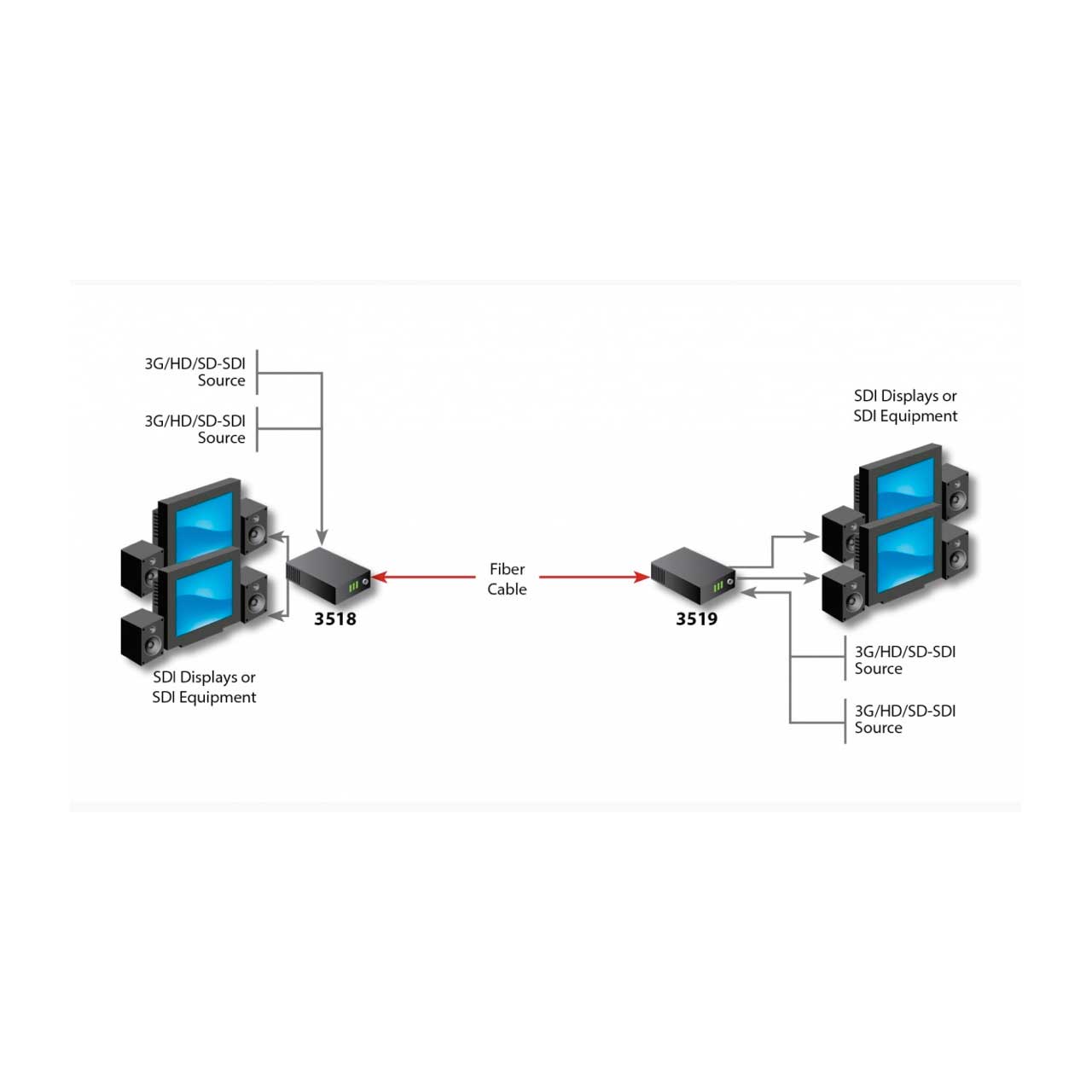

The Fiberlink 3518 series supports 4 channels of independent, bidirectional 3G/HD/SD-SDI or DVB-ASI, with or without embedded audio and data, and transmits it over one single mode or multimode fiber. Now, you can send two 3G/HD/SD-SDI signals upstream and two 3G/HD/SD-SDI signals downstream!
All SMPTE compliant signals are equalized and reclocked. Each unit features two reclocked, non-inverting BNC outputs. The 3518 Series is compliant with SMPTE 259M-2006, 292-2006, 424M-2006, 305M-2005, 310M-2004, 344M-2000 and DVB-ASI. The series is immune to pathological patterns over entire link budget and operating temperature range. For maximum flexibility, the units may be configured with ST or LC optical connectors.
Fiberlink 3518 Series is ideal for any broadcast or professional video application: broadcast studios, sporting events, confidence monitoring, OB vans, video conferencing and more!
Fiberlink 3518 is also available in a 2 channel version, Fiberlink 3516 Series.
Fiberlink 3518 is also available in a 2 fiber version, Fiberlink 3528 Series.
