Cabletronix CT-HDBASET-330 HD; Ethernet; RS-232; Infrared Control & PoE Extender
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Cabletronix CT-HDBASET-330 HD; Ethernet; RS-232; Infrared Control & PoE Extender

    Manufacturer: Cabletronix

    Item #: CT-HDBASET-330   •   MFG #: CT-HDBASET-330


    List Price:$399.99
    Our Price:$329.25

    free ship
    Availability: Usually ships in 3-10 business days
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.
    • Special Order Item: non-cancelable, non-returnable, non-refundable.

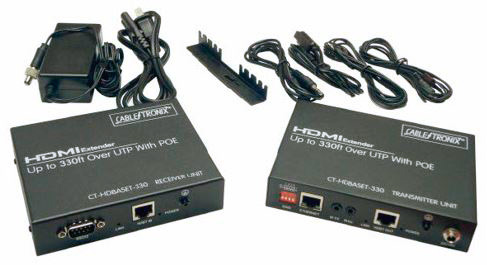

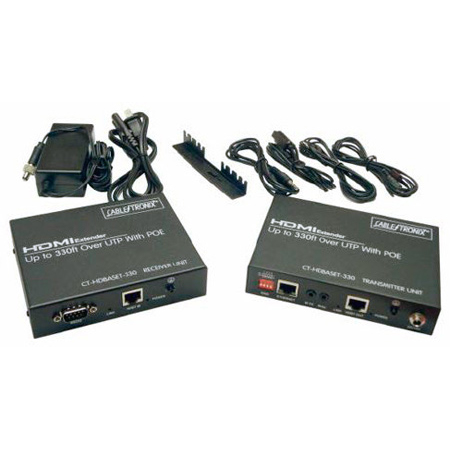

    The Cabletronix CT-HDBASET-330 is a five play signal extender which utilizes a single Cat5E/6 cable. The unit is capable of transporting HDMI signals, Ethernet, IR remote control signals, RS-232 Control, and PoE power all over one CAT5E/6 cable. This easy to install system allows for transmission distances over twisted pair up to 330 feet.

    The CT-HDBASET-330 uses HDBaseT technology to bridge the gap between HDMI transport over long distances and the limitations of HDMI cables. Featuring field upgradeable firmware, the CT-HDBASET-330 has a level of future proofing to protect the initial investment from short term obsolescence in the fast moving digital video market. This fully compliant HDCP unit features HDMI V1.4 with 3D at up to 1080P. The CT-HDBASET-330 incorporates advanced features such as automatic equalization, automatic gain control, and internal electrostatic discharge protection. Easy to read LED indicators confirm link status.

    With the ability to multiplex 5 discreet signals onto one cable, this unit solves even the most complex distribution problems. The ability to use an existing ethernet cable to add in 4 additional signal types on top of the ethernet signals is a significant time saver in the field. This plug and play system is perfect for long distance projector applications and offers dealers, installers, and system integrators considerable value and efficiency while satisfying customer requirements.

    • Features

      • Distributes HDMI, 10/100 Ethernet, bi-directional infrared Control, RS232 & power over a single Cat5e or Cat6 4 Pair cable
      • Extends transmission distance up to 330' from sources up to 1080p
      • Includes HDMI Loop through feature
      • No settings or adjustments required
      • Uses a single UTP LAN cable (CAT-5e / 6)
      • UTP cable termination follows the standards of IEEE568B
      • Auto-adjustment of feedback, equalization & amplification
      • HDMI V1.4 supported
      • HDCP compliant
      • Internal ESD protection
      • Mounting ears included
    • Specifications

      • Input Video Signal 0.5-1.0 volts p-p
      • Input DDC Signal 5 volts p-p (TTL)
      • Video Format Supported DTV/HDTV: 1080p/1080i/720p/576p/480p/576i/480i
      • DVI VESA: 1280x1024/1920x1200
      • Output Video HDMI 1.4+HDCP
      • Output Audio Support DTS-HD, Dolby-HD
      • Maximum Transmission Distance 330 Feet
      • Operating Temperature Range -41°F to +95°F
      • Operating Humidity Range 5 to 90 % RH (no condensation)
      • Power Supply 12VDC
      • Power Consumption 17 Watts (Max.)
      • PoE IEEE 802.3af compliant PSE
      • Dimensions 5.71''W x 4.17''D x 1.14''H
      • Weight 0.97 lbs
    • Item Includes

      • 1 Base transmission unit
      • 1 Base receive unit
      • 2 Mounting ears (2 Pair)
      • 1 Operating Instructions
      • 2 12VDC power supply
      • 2 IR emitter cable
      • 2 IR target cable
