Cabletronix CT-HDVD-EXT-IR230 HD & Infrared Control Over a Single Cat5e / 6
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Cabletronix CT-HDVD-EXT-IR230 HD & Infrared Control Over a Single Cat5e / 6

    Manufacturer: Cabletronix

    Item #: CT-HDVD-EXTIR230   •   MFG #: CT-HDVD-EXT-IR230


    List Price:$279.99
    Our Price:$229.00

    free ship
    Availability: Usually ships in 3-10 business days
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.
    • Special Order Item: non-cancelable, non-returnable, non-refundable.



    The CT-HDVD-EXT-IR230 kit has the ability to transmit and receive a 1080p HD source up to 120 feet along with Infrared control over a single Cat5e / Cat6 4 Pair UTP Cable. With a single low cost CAT-5e/6 cable, users can readily extend HDTV sources from DVD players, PS3, PC, and many other sources compliant with TMDS to distant display monitors including HD enabled TV sets or LCD PC monitors. This cost effective flexibility allows HDCP compliant DVD players or PS3 to transmit high quality video and audio with a greater distance at a minimal cost.

    The transmitting unit is used to capture the input HD signal and carries the signal over a single RJ-45 connector through the Cat-5e / 6 cable. The receiving unit is responsible for receiving and equalizing the transmitted TMDS multimedia data.

    • Features

      • Distributes HDMI signal over a single Cat5e or Cat6 4 Pair cable
      • Extends transmission distance up to 230' from sources up to 1080p
      • No settings or adjustments required
      • Uses a single UTP LAN cable (CAT-5e / 6)
      • UTP cable termination follows the standards of IEEE568B
      • Auto-adjustment of feedback, equalization & amplification
      • HDMI V1.3b supported
      • HDCP compliant
      • Supports 1080p @ 60Hz @ 48 b/pixels, 3D and 4Kx2K
      • LED indicators indicate power and video signal status
      • Internal ESD protection
      • Mounting ears included
      • Supports two way Infrared control signals
      • Units can be cascaded.
    • Specifications

      • Input Video Signal: 0.5-1.0 volts p-p
      • Input DDC Signal: 5 volts p-p (TTL)
      • Video Format Supported: DTV/HDTV: 1080p/1080i/720p/576p/480p/576i/480i
      • Output Video: HDMI 1.4+HDCP
      • Output Audio: Support DTS-HD, Dolby-HD

      • Maximum Transmission Distance
      • Video format up to 1080p 60Hz 36bpp
      • Up to 230 Feet using Cat6a/Cat7
      • Up to 197 Feed using Cat5e/Cat6
      • Video format up to 1080p 60Hz 48bpp
      • 1080p 60 Hz 3D/4K2K 30 Hz 24 bpp
      • Up to 130 Feed using Cat6a/Cat7
      • Up to 115 Feet using Cat5e/Cat6

      • Operating Temperature Range: -41°F to +95°F
      • Operating Humidity Range: 5 to 90 % RH (no condensation)
      • Power Supply: 5VDC
      • Power Consumption Transmitter 2.5 Watts (Max.)
      • Power Consumption Receiver 5 Watts (Max.)
      • Dimensions 4.14''W x 2.99''H x 1.06''D
      • Weight 1.54 lbs

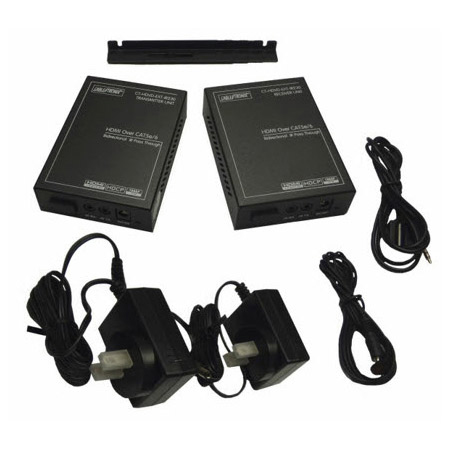

    • Item Includes

      • 1 Base transmission unit
      • 1 Base receive unit
      • 2 Mounting ears (2 Pair)
      • 1 Operating Instructions
      • 2 5VDC power supply
      • 1 IR emitter cable
      • 1 IR target cable
