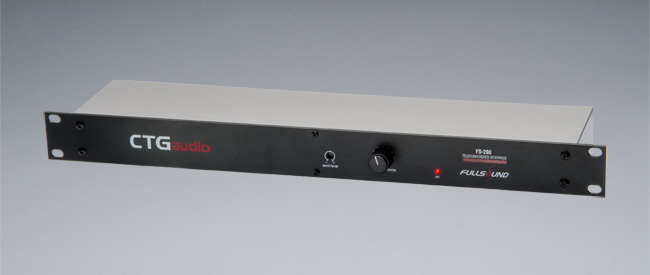

The FS-200 is a proprietary control console developed to power speakers and CTG manufactured microphones. The FS-200 system solution is designed for group audio applications in small to mid-sized rooms. It supports up to two CTG microphones and four speakers. The FS-200 can connect at line level to a video codec and functions as a peripheral audio system.
The FS-200's all in one design replaces the need for a separate microphone mixer and speaker amplifier. There are a few simple calibration adjustments to be set during installation. The user adjusts the incoming audio levels from the remote control supplied with the telephone interface and video-conferencing system. All microphones may be muted through the codec or the telephone interface. The audience ceiling or table microphones may also be muted through the FS-200 while a presentation microphone (line input) remains active.
