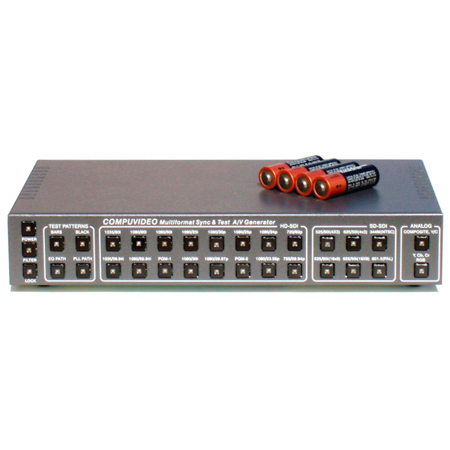

Compuvideo CV-9165SDI-A 3GHD-SDI & Analog AV Multiformat Video Pattern Generator
  • Compuvideo CV-9165SDI-A 3GHD-SDI & Analog AV Multiformat Video Pattern Generator
  • Compuvideo CV-9165SDI-A 3GHD-SDI & Analog AV Multiformat Video Pattern Generator
Questions? Ask a Markertek Expert:
800-522-2025 Email

Compuvideo CV-9165SDI-A 3GHD-SDI & Analog AV Multiformat Video Pattern Generator

Item #: CV-9165SDI-A   •   MFG #: CV-9165SDI-A


Our Price:$1,299.00

free ship
Availability: Usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.



    Compuvideo new CV-9165SDI-A is Low Cost Precision Digital Multiformat HD-SDI, SD-SDI and Analog Professional Generator in all metal enclosure made in USA with user friendly direct function smart front panel control with last settings memory. Unit powered by AC/DC power for 24/7 non-stop operation, and/or internal AA-batteries with 100 hours of average operation.

    Unit provides 2- HD/SD-SDI Matched Low Jitter Outputs, that can be used as Broadcast High Quality Test Patterns or Master Sync Black Reference Generator to Genlock HD-SDI and SD-SDI Video/Audio Systems to assure perfect timing and has front panel program function for future standards/formats upgrades.

    Unit provides HD-SDI / SD-SDI outputs and Composite, Y/C outputs, and 2-CH Audio.

    Compuvideo CV-9165SDI-A performs a Comprehensive go/no-go test of the HD/SD-SDI & Analog systems, testing for errors using the EDH system for SD or the CRC system for HD. Supporting HDTV SMPTE 260M, 274M, 292M, 295M, 296M and SDTV SMPTE 125M, SMPTE 259M-C, 267M, 344M, ITU-R BT 601, 270 Mbps, 360 Mbps, 540 Mbps, 1.4835Gbps and 1.485 Gbps, NTSC and PAL, 4:3 and 16:9 Formats.

    Compuvideo CV-9165SDI-A can work under extreme conditions: generating very low heat assuring non-stop operation and protected by all metal enclosure from magnetic and electrical interference.

    Compuvideo CV-9165SDI-A can survive most of the accidents that can happen to handheld and portable devices - even accidental drops and/or liquid spills may result in minimum repair cost involved (if any) due to separately and strategically positioned front panel, main electronic board, and connectors.

    • Specifications

      • HD-SDI SMPTE-292M, Serial Data Rates of 1483.5 and 1.485 Gbps; 720 / 59.94p,60p; 1035 / 59.94i, 60i; 1080 /23.98p, 24p, 25i, 25p, 29.97p, 30p, 30i, 50i, 59.94i, 60i
      • SD-SDI SMPTE-259M-C, Serial Data Rates of 270 Mbps, 360 Mbps and 540 Mbps; 525 / 59.94i and 625/50i
      • 2 - SDI Outputs: BNC Connectors
      • 2 - Composite Output: (BNC Connector ) Full Field Color Bars
      • 1 - Y/C Output: Luma: 1.0V p-p into 75 Ohms Chroma: 0.286V p-p into 75 Ohms (4-pin Connector )
      • 1 - Grayscale Y: 1Vp-p into 75 Ohms. Cb/Cr:700 mv p-p into 75 Ohms (3-BNC Connectors)
      • 2 - Audio 1K Tone BNC Connector
      • Test Patterns HD/SD-SDI: Test pattern types are available for all data rates, all HD and SD formats, NTSC or PAL standards, and 4x3 and 16x9 raster sizes. The test patterns are: flat-field black, PLL pathological, equalizer (EQ) pathological and a 75%, full field color bars. The color bar pattern offers limiting coding in the chroma and luma data transitions between bars
      • Test Patterns Composite: Y/C, Full Field Bars, Grayscale
      • Included Accessories: 1 - Universal AC Power Adapter
      • Power: Universal AC Adapter (Input 90-250 Volts AC - Output: 9 Volt DC, Ext. DC Input-9 Volts, Internal: AA Batteries
      • Weight: 2.4 lbs
      • Dimensions: 1.730" (H) x 10" (W) x 6" (D)
