Compuvideo CV-9270SDI-AN HD/SD-SDI Multiformat Analog Generator

ITEM #: CV-9270SDI-AN MFG #: CV-9270SDI/ANALOG

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CV-9270SDI-AN

CV-9270SDI/ANALOG - Overview

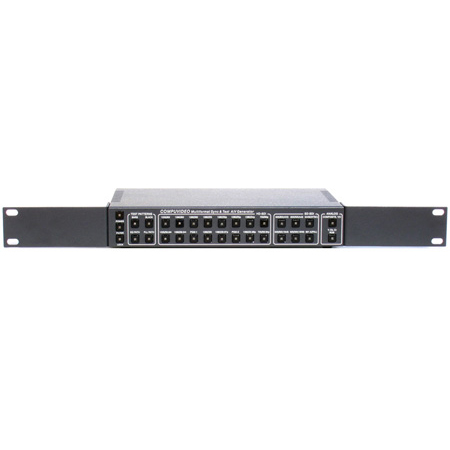

Compuvideo's new CV-9270SDI/ANALOG is a Low Cost Precision Digital Multiformat HD-SDI, SD-SDI and Analog Professional Generator in all metal enclosure made in USA with user friendly 31-direct function smart front panel control with last settings memory and auto power back-up. Unit can be used in rack mount, desktop and/or handheld configurations, powered by AC/DC power and/or internal AA-batteries with 100 hours of average operation. Included with the unit:19" rack mount, SDI cable, universal power supply and calibration certificate.

Unit provides 2- HD/SD-SDI Matched Low Jitter Outputs 85ps typical, that can be used as Broadcast High Quality Test Patterns or Master Sync Black Reference Generator to Genlock HD-SDI and SD-SDI Video/Audio Systems to assure perfect timing and has front panel program function for future standards/formats upgrades.

In addition to HD-SDI / SD-SDI outputs CV-9270SDI/ANALOG provides Composite, Component and Y/C outputs in NTSC or PAL, with 2-CH XLR Balanced Audio.

Compuvideo CV-9270SDI/ANALOG performs a Comprehensive go/no-go test of the HD/SD-SDI & Analog systems, testing for errors using the EDH system for SD or the CRC system for HD. Supporting HDTV Standards: SMPTE 260M, 274M, 292M, 295M, 296M and SDTV Standards: SMPTE 125M, SMPTE 259M, 267M, 344M, ITU-R BT 601, 270 Mbps, 360 Mbps, 540 Mbps, 1.4835Gbps and 1.485 Gbps, NTSC and PAL, 4:3 and 16:9 Formats.

Since 1989 Compuvideo Designs and Manufactures Professional Video/Audio Sync,Test and Measurement Equipment in USA, working together with many video/audio professionals to provide better products for their challenging applications. As a direct result we're proud to introduce our new Compuvideo CV-9270SDI/ANALOG, this unit is design and made to work under extreme conditions: generating very low heat assuring non-stop operation and protected by all metal enclosure from magnetic and electrical interference.

Compuvideo CV-9270SDI/ANALOG is design to survive most of the accidents that can happen to handheld and portable devices - even accidental drops and/or liquid spills may result in minimum repair cost involved (if any) due to separately and strategically positioned front panel, main electronic board, and connectors. Additionally, Compuvideo CV-9270SDI/ANALOG can be rack mounted for security purposes.
