Delvcam 9.7in Dual Input HDMI Monitor With Advanced Function - With Case
  • Delvcam 9.7in Dual Input HDMI Monitor With Advanced Function - With Case
  • Delvcam 9.7in Dual Input HDMI Monitor With Advanced Function - With Case
  • Delvcam 9.7in Dual Input HDMI Monitor With Advanced Function - With Case
  • Delvcam 9.7in Dual Input HDMI Monitor With Advanced Function - With Case
  • Delvcam 9.7in Dual Input HDMI Monitor With Advanced Function - With Case

Questions? Ask a Markertek Expert:
800-522-2025 Email

Delvcam 9.7in Dual Input HDMI Monitor With Advanced Function - With Case

Item #: DELV-HDSD-10   •   MFG #: DELV-HDSD-10




Our Price:$399.95

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!

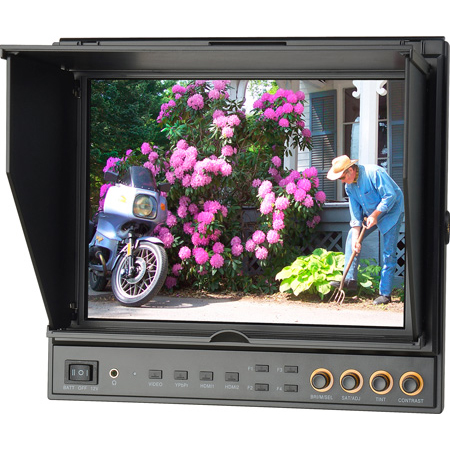

    The Delvcam DELV-HDSD-10, an LED HD broadcast monitor with dual HDMI inputs, component video, and a built-in sunshade, is optimized for studio and video editing work. The 9.7" LCD is the ideal size for a small broadcast desktop monitor but large enough to pick out the finest details in a shot.

    The physical 1024x768 resolution provides clarity at an aspect ratio that works well with 16:9 content and 4:3 content. The 1:1 pixel mapping allows you to maintain the original resolution of your camera's output and avoid any unexpected focus issues in post-production. This monitor offers customizable peaking, false color, histogram, and exposure, auxiliary function buttons.

    The DELV-HDSD-10 features an HDMI-output which allows you to duplicate the video content onto a second monitor - no annoying HDMI splitters required. The second monitor can be any size and picture quality will not be affected. This monitor also includes all the AV connections that a broadcast professional needs. Composite and component through BNC connectors and two HDMI inputs cover all the bases for common broadcast applications.


    • Features

      • IPS panel 178° wide viewing angles,
      • Dual HDMI inputs,
      • Wide voltage: DC 7-24V,
      • TALLY interface & 5V charging
      • Comply with IP52 standard!

    • Specifications

      • DISPLAY
      • Panel 9.7" IPS
      • Physical Resolution 1024x768, support up to 1920x1080
      • Aspect Ratio 4:3
      • Brightness 400cd/m2
      • Contrast 600:1
      • Viewing Angle 178°/178°(H/V)

      • INPUT
      • HDMI 2
      • YPbPr 3(BNC)
      • VIDEO 1
      • TALLY 1
      • AUDIO 2(L/R)

      • OUTPUT
      • HDMI 1
      • YPbPr 3(BNC)
      • VIDEO: 1
      • USB 1(5V for charging)

      • AUDIO
      • Speaker 1 (build-in)
      • Ear Phone Slot 1

      • POWER
      • Current 1500mA
      • Input Voltage DC 7-24V (XLR)
      • Battery Plate Compatibility: LPE6, F970, DU21, QM91D
      • V-mount / Anton Bauer mount /
      • Power Consumption =18W

      • ENVIRONMENT
      • Operating Temperature -20C~60C
      • Storage Temperature -30C~70C

      • DIMENSIONS
      • Dimension(LWD) 9.69 x 8.82 x 1.22 inches
      • Weight 2.36 lbs / 3.06 lbs (with cover)

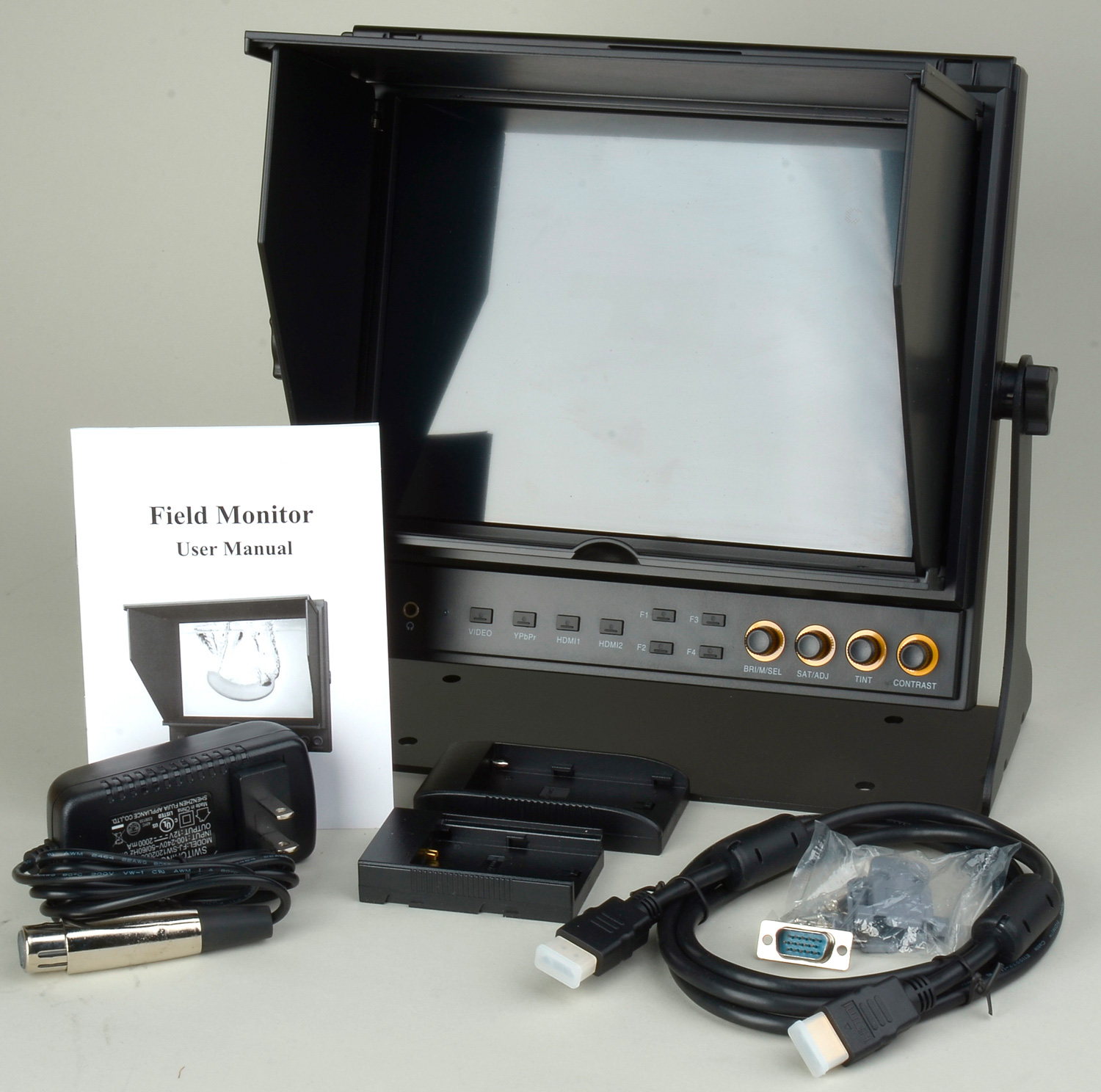

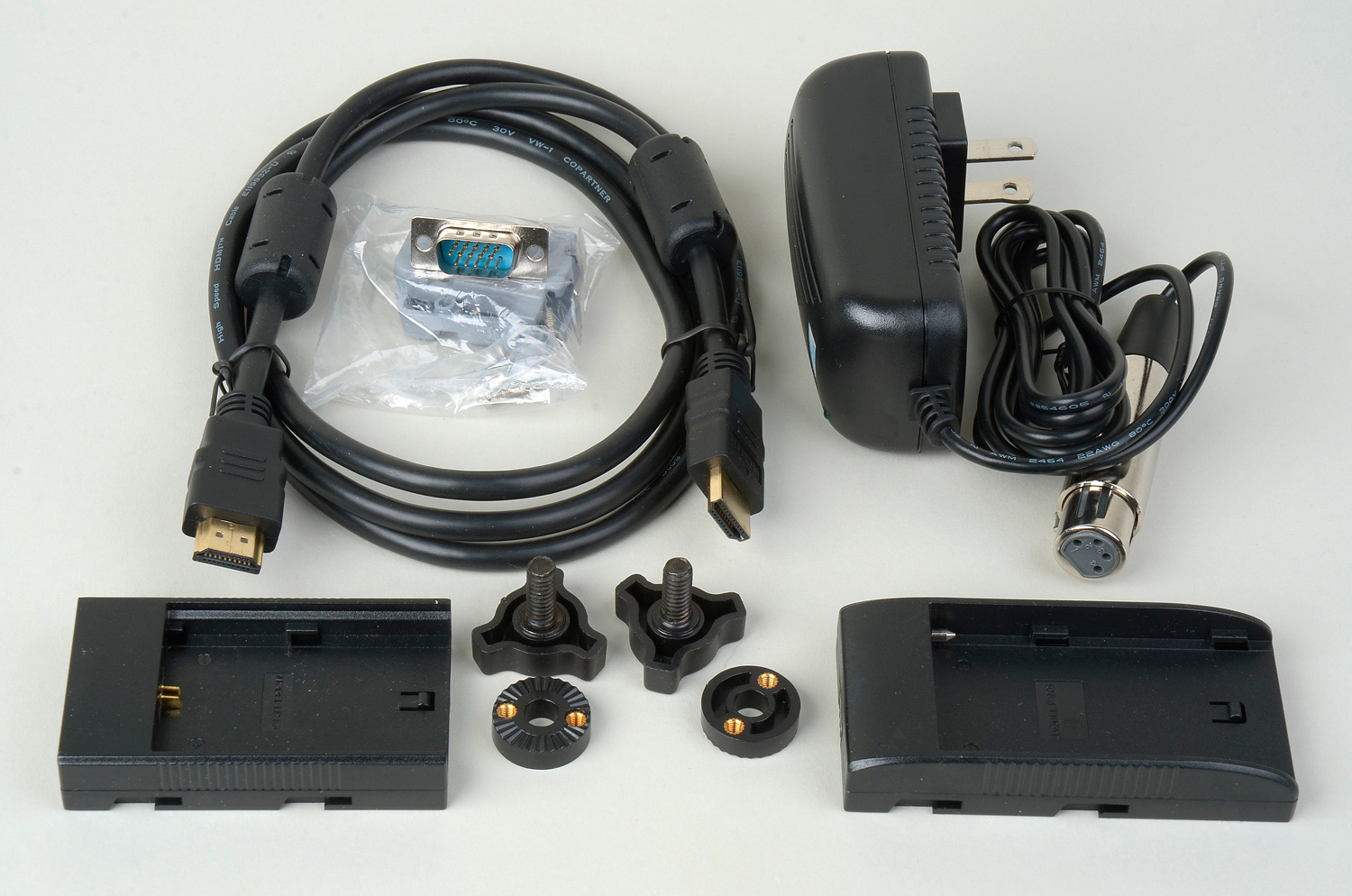

    • Item Includes

      • Sunshade
      • 12VDC Power Adapter (XLR)
      • HDMI Cable
      • Talley Connector
      • Battery Plate Bracket
      • Battery Plates: LPE6, F970

    • Warranty

      • 1 Year
