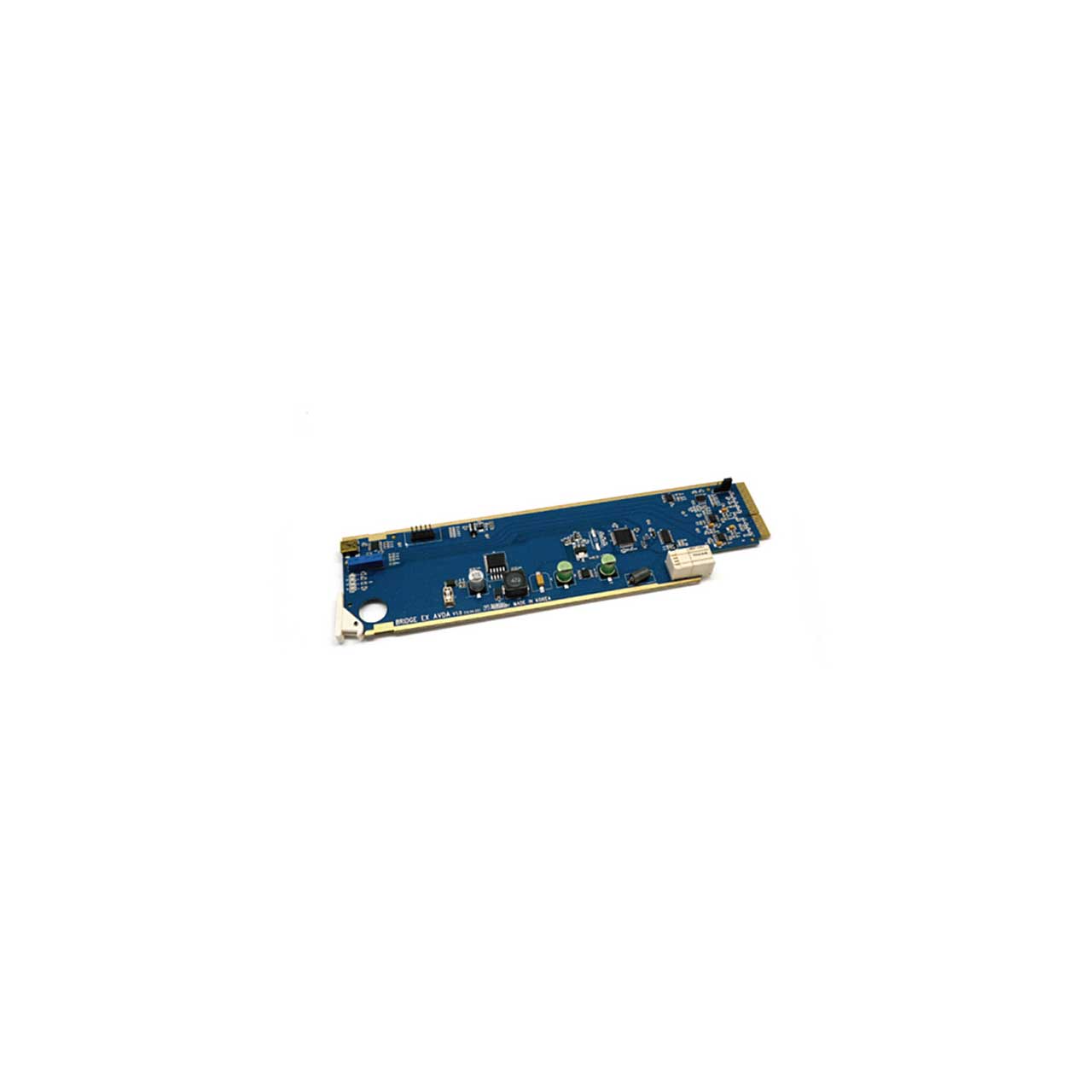

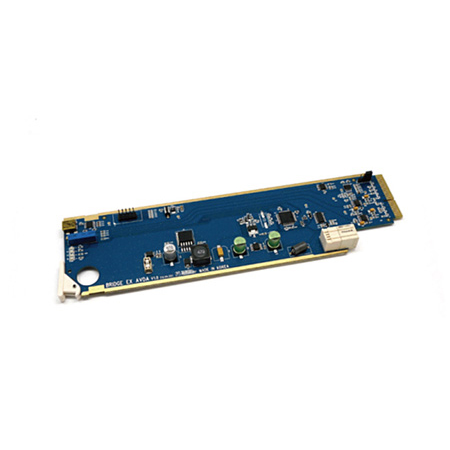

Digital Forecast BRIDGE EX DADA-B AES/EBU Digital Audio Distribution Amplifier Module

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Digital Forecast BRIDGE EX DADA-B AES/EBU Digital Audio Distribution Amplifier Module

    Manufacturer: Digital Forecast

    Item #: DF-BRIDGE-EXDADA   •   MFG #: BRIDGE EX DADA-B



    List Price:$350.00
    Our Price:$333.00

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


    Share!





    The Digital Forecast BRIDGE EX DADA is an AES/EBU digital audio distribution amplifier module offering a single input and eight reclocked ouput configuration. This module has signal and sample rate detection accepting 32kHz, 44.1kHz, 48kHz sampling rates. The BRIDGE EX DADA has a built-in reclocking and equalizing circuit, with automatic equalization sending signals up to 600m at 70 ohm or 300m at 110 ohms or less.


    • Features

      • Supports SMPTE276M, AES3id-1995
      • Up to 8 Reclocked outputs
      • 110 Ohm Input/Output
      • Input Present and sample rate auto detect
      • Automatic equalization up to 300m (110 Ohm)
      • Accepts 32kHz, 44.1kHz, 48kHz sampling rate
      • Supports Auto/Manual cable equalization

    • Specifications

      • AES/EBU Digital Audio Input
      • Input Number: 1
      • Input Standard: SMPTE276M, AES3id-1995
      • Coupling: Transformer coupled
      • Connector: 110 Ohm terminal block
      • Signal level: 2~7Vp-p(110 Ohm)
      • Input Return Loss: >25dB at 0.1 to 6MHz (75Ohm)
      • Sample Rate: 32kHz, 44.1kHz, 48kHz
        AES/EBU Digital Audio Output
      • Output Number: 8
      • Output Standard: SMPTE276M, AES3id-1995
      • Coupling: Transformer coupled(110Ohm)
      • Connector: 110Ohm terminal block
        Electrical
      • Voltage: +12V DC
      • Power Dissipation: < 3W
      • Temperature: 0 ~ 40°C
      • Signal level: 2~7Vp-p(110Ohm)l
      • Jitter: < 5ns
      • Rise & Fall Tim: 30-40ns(75Ohm), 5-30ns(110Ohm)
      • Sample Rate: 32kHz, 44.1kHz, 48kHz

    • Warranty

      • 2 Years
