Datavideo SE2200SK Studio Kit - Includes SE-2200 Switcher & ITC-100 for 4 Users & HDR-70

ITEM #: DV-SE2200SK MFG #: SE2200SK

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DV-SE2200SK

SE2200SK - Overview

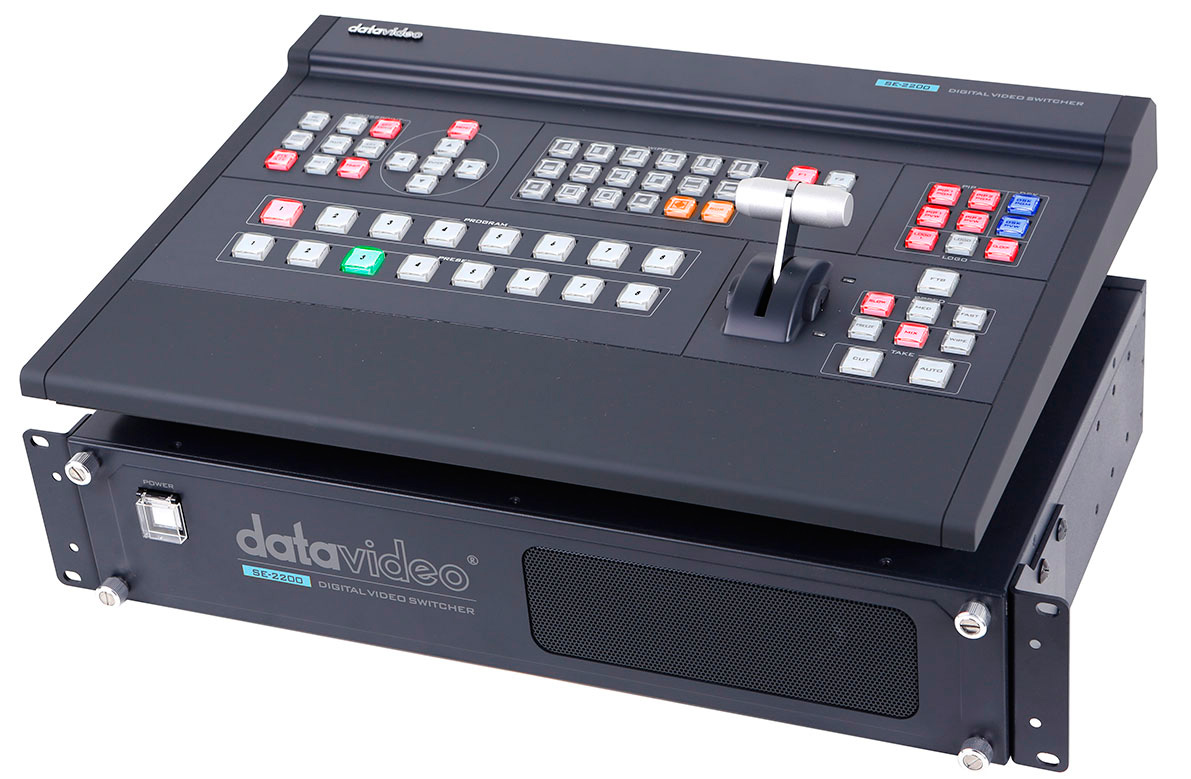

SE-2200 HD Switcher
The SE-2200 switcher is a separate control panel / processor system that switches High Definition HD-SDI video signals as well as HDMI signals. The SE-2200 is a six-input switcher that's perfect for events and meetings. It is available in three configurations including solo (Switcher), table-top (Studio Kit), or suitcase (Mobile Studio). And the cost is low enough that some people buy two - one for the studio and one to go.

SE-2200 Studio Kit

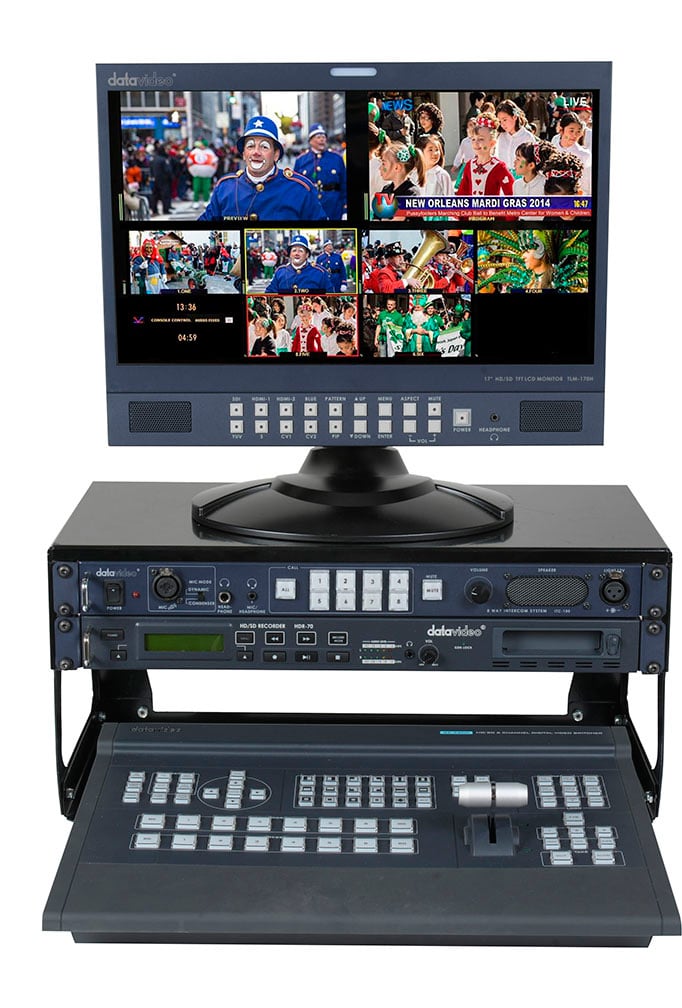

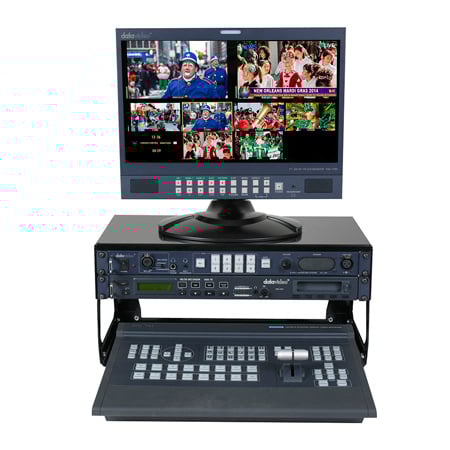

The SE-2200 Studio Kit includes the SE-2200 Switcher in a table-top rack with an ITC-100 wired intercom/tally system that includes four belt packs, headsets, microphones, tally lights, and a hard drive recorder for saving the final output.

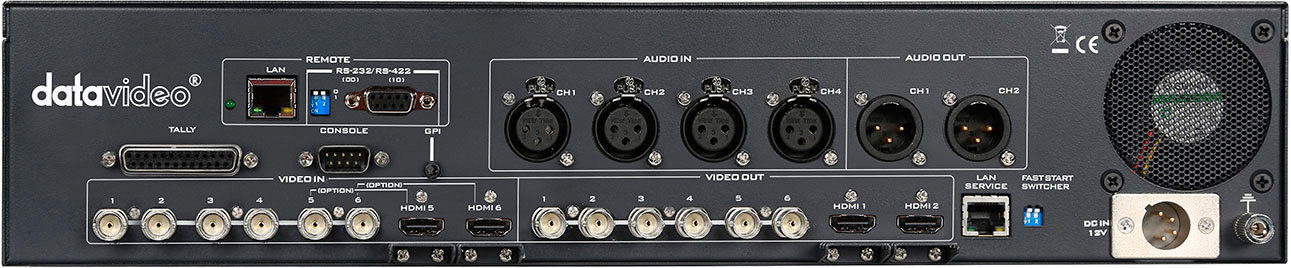

  • Specifications:

    • VIDEO INPUT
    • Input1: HD-SDI
    • Input2: HD-SDI
    • Input3: HD-SDI
    • Input4: HD-SDI
    • Input5: HD-SDI or HDMI
    • Input6: HD-SDI or HDMI

    • VIDEO OUTPUT
    • 6x HD-SDI**
    • 2x HDMI (Multi-view)
    • ** Outputs can be Program, Program with Logo, Program With Logo and Titles, Preview, or Aux

    • AUDIO
    • Input: 4x XLR (mono)
    • Output: 2x XLR (mono)
    • Embedded audio is supported. Audio may be embedded into the SDI stream.

    • CONTROL
    • 1x RS-232/422

    • TALLY
    • 1x Tally Output

    • Supported HD-SDI Video Formats
    • 1080i 50/59.94/60
    • 720p 50/59.94/60

    • Supported HD-SDI Input Resolutions for Computers
    • 1920x1080i 50/59.94/60

    • Supported HDMI Input Resolutions for Computers
    • 1920x1080i 50/59.94/60
    • 1280x720p 50
